Overview

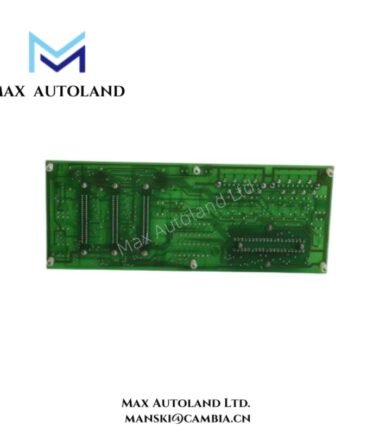

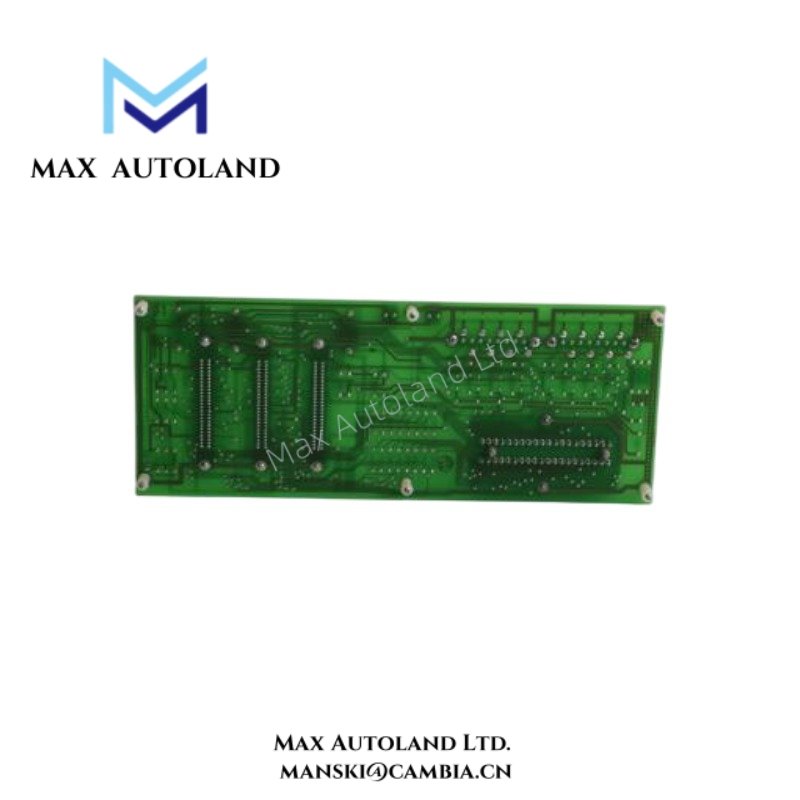

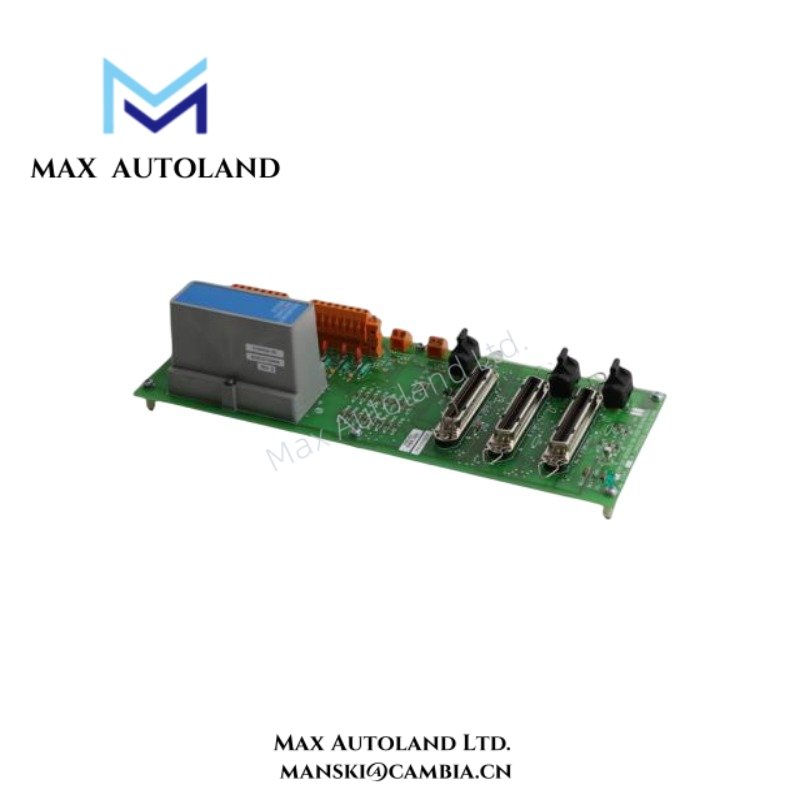

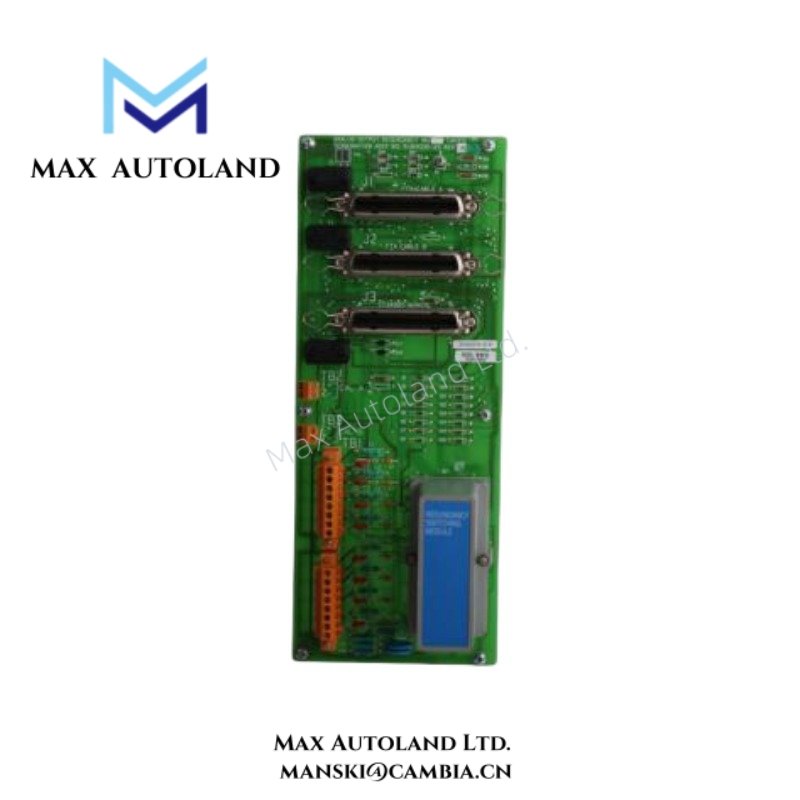

The MU-TAOX12 51304335-100 analog output terminal assembly delivers precise signal output for industrial automation systems.
Moreover, Honeywell designs the MU-TAOX12 51304335-100 for seamless integration within distributed control architectures.
Additionally, the module provides stable analog signal transmission to field actuators and control devices.
Therefore, engineers rely on MU-TAOX12 51304335-100 for accurate process control and consistent system performance.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | MU-TAOX12 51304335-100 |
| Manufacturer | Honeywell |
| Product Type | Analog Output Terminal Assembly |
| Application | Industrial process control and actuator signal output |
| Output Channels | 8–16 analog output channels (configuration dependent) |
| Output Signal Type | 4–20 mA / 0–20 mA current output |
| Output Voltage Range | Compatible low-voltage analog control signals |
| Output Accuracy | ±0.1% full scale typical |
| Load Resistance | Up to 600 Ω typical |
| Interface Type | Terminal block wiring interface |
| Wiring Method | Screw-type or plug-in terminal connections |
| Signal Conversion | Digital-to-analog conversion module support |
| Power Supply | Backplane or external 24V DC supply |
| Power Consumption | Approx. 5–10 W |
| Energy Storage | None (active electronic terminal assembly) |
| Dimensions | Approx. 220 mm × 150 mm × 60 mm |
| Weight | Approx. 0.9 kg |
| Mounting Type | Panel or rack-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Features | Overcurrent and signal isolation protection |
FAQ
Q1: What type of output signals does this module support?
A1: The MU-TAOX12 51304335-100 supports 4–20 mA and 0–20 mA analog output signals.
Q2: How many output channels are available?
A2: The MU-TAOX12 51304335-100 provides 8 to 16 analog output channels depending on configuration.
Q3: What is the main application of this module?
A3: The MU-TAOX12 51304335-100 controls field actuators in industrial process automation systems.
Q4: Is the product available in stock and how fast is shipping?
A4: The MU-TAOX12 51304335-100 is brand new original with stock available, and shipping takes 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and similar carriers to deliver the MU-TAOX12 51304335-100 quickly and safely.
Q6: What if there is a quality issue after purchase?
A6: The MU-TAOX12 51304335-100 supports a 30-day return policy if any quality issue occurs after delivery.
