Overview

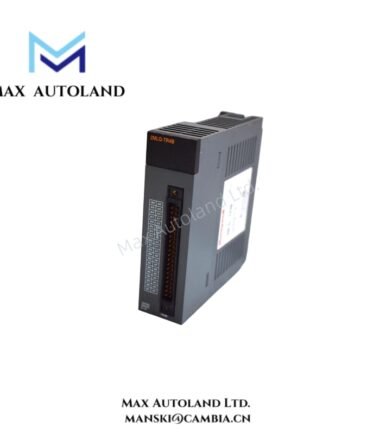

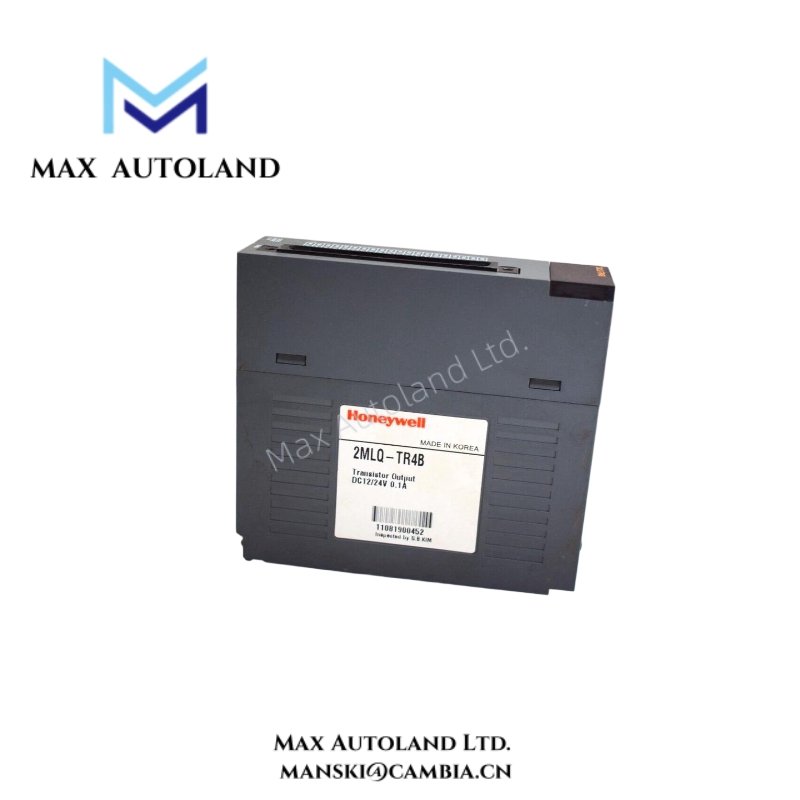

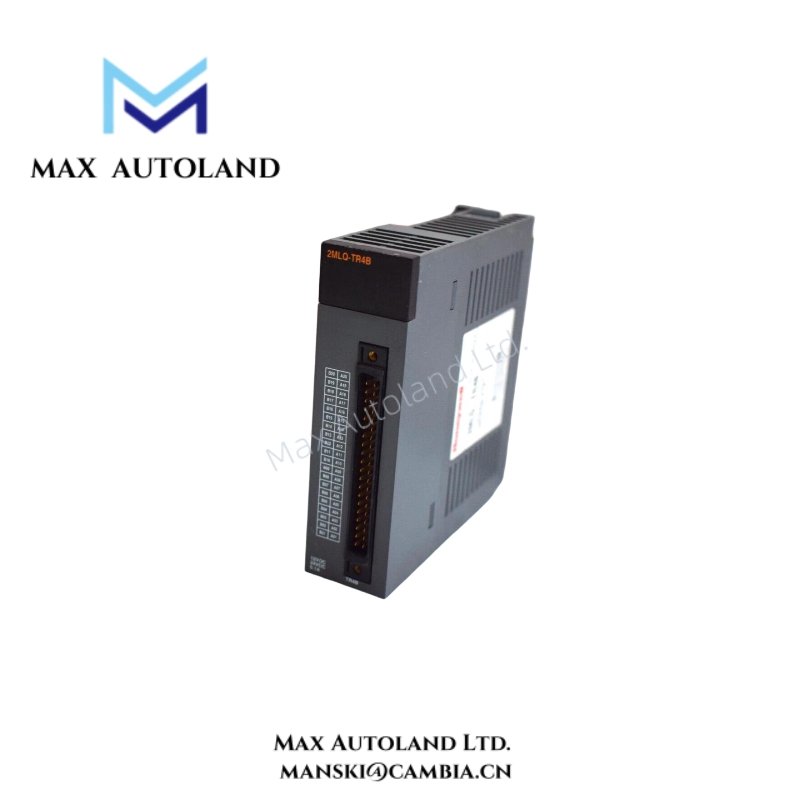

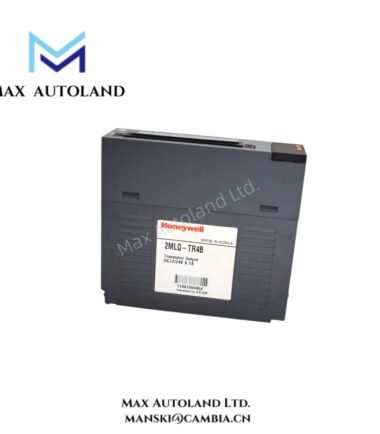

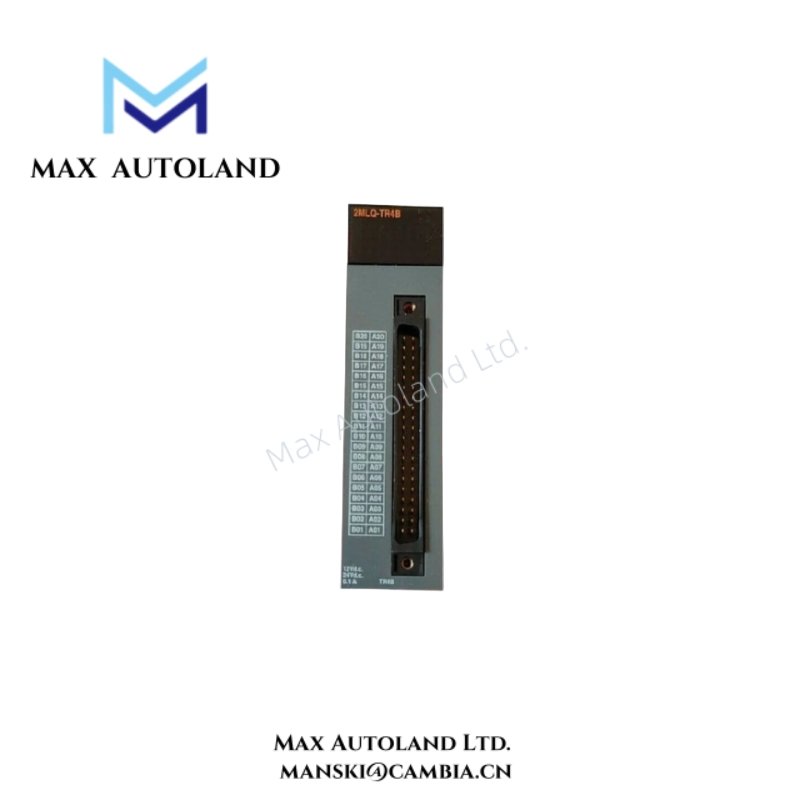

The Honeywell 2MLQ-TR4B is a transistor output module designed for MasterLogic-200 PLC systems. It delivers fast, reliable switching for industrial control applications and supports multiple output points simultaneously. Moreover, its robust design withstands harsh industrial environments, minimizing maintenance requirements. Engineers can integrate this module seamlessly into existing MasterLogic-200 racks for efficient system expansion.
Specification
| Parameter | Specification |
|---|---|
| Module Type | Transistor Output |
| Number of Points | 4 digital outputs |
| Output Configuration | Sourcing (PNP) or sinking (NPN) configurable |
| Maximum Load Voltage | 24V DC |
| Maximum Load Current | 0.5 A per output point |
| Total Current per Module | 2 A max |
| Output Response Time | ≤ 1 ms per output |
| Short-Circuit Protection | Yes, per output |
| Isolation | Optical isolation between inputs and outputs |
| Status Indication | Diagnostic LEDs for each output |
| Operating Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Electrical Noise Immunity | Meets IEC 61131-2 standards |
| Mounting | Standard MasterLogic-200 rack |
| Dimensions (WxHxD) | 23 mm x 100 mm x 75 mm |
| Weight | Approx. 150 g |
| Compliance | CE, UL Listed |
| Typical Applications | Drives relays, solenoids, indicators; high-speed digital control in PLC racks |
FAQ
Q1: Can this module handle fast switching applications?
A1: Yes, the 2MLQ-TR4B supports output response times of 1 millisecond, suitable for high-speed industrial control.
Q2: Is it compatible with existing MasterLogic-200 PLC racks?
A2: Yes, it integrates seamlessly without requiring additional adapters.
Q3: What environments can this module operate in?
A3: The module works reliably between -20°C to 60°C with 5–95% humidity, ideal for harsh industrial conditions.
Q4: How can I troubleshoot output errors?
A4: Diagnostic LEDs indicate the status of each output, simplifying identification of wiring or signal issues.
