Overview

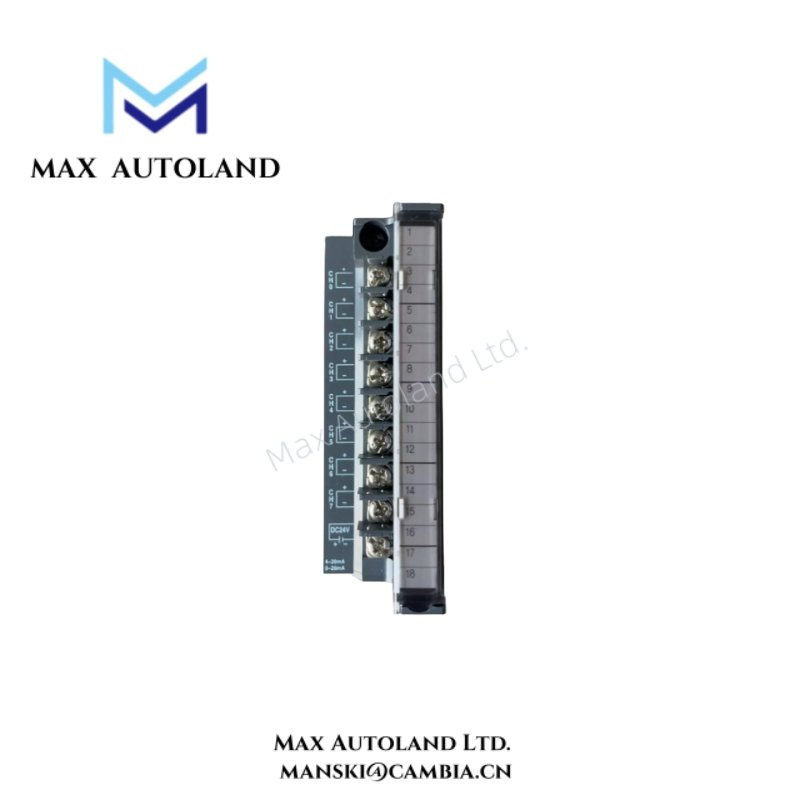

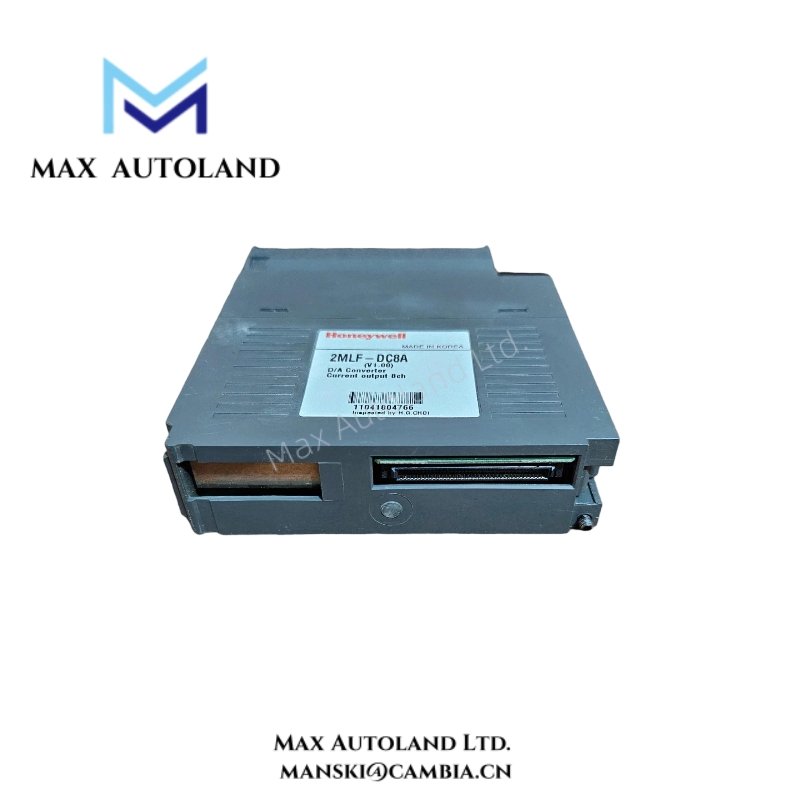

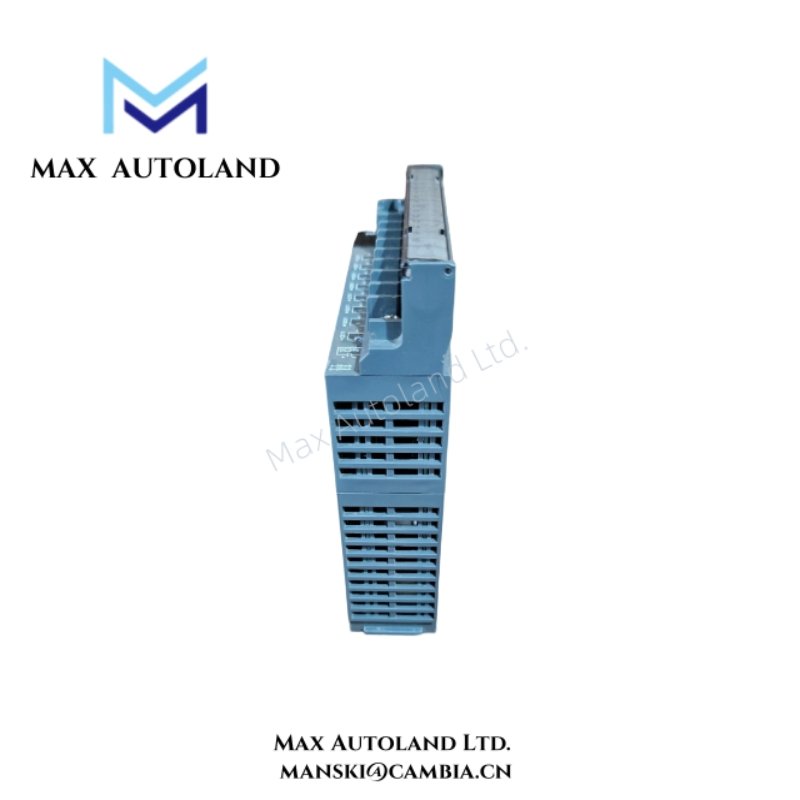

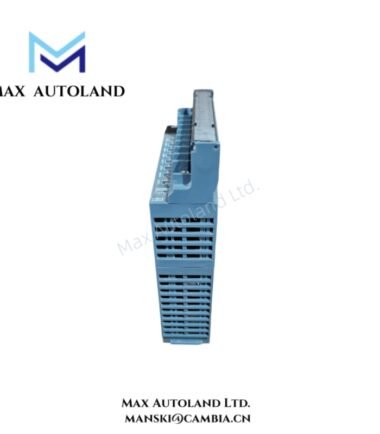

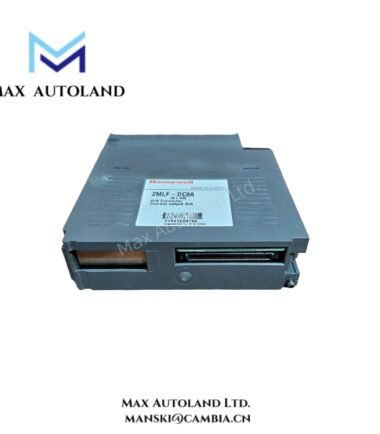

The Honeywell 2MLF-DC8A module provides eight precise current output channels for industrial automation systems. Therefore it enables accurate analog control of actuators, valves, and other process devices. In addition, it integrates seamlessly with the MasterLogic-200 PLC rack, making system expansions and retrofits straightforward. Moreover, its robust design ensures consistent performance under demanding industrial conditions, maintaining process reliability and operational safety.
Specification
| Parameter / Attribute | Specification / Description |
|---|---|
| Model | 2MLF-DC8A |
| Module Type | Honeywell MasterLogic-200 8-Channel Current Output Module |
| Output Channels | 8 isolated current output channels |
| Output Current Range | 4–20 mA |
| Output Resolution | 16-bit D/A conversion |
| Output Accuracy | ±0.1% of full scale typical |
| Channel-to-Channel Isolation | 1500 V typical |
| Load Resistance | 500 Ω maximum |
| Communication Interface | RS-422 |
| Power Supply | 24 V DC typical |
| Power Consumption | ≤5 W typical |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (approx.) | 12.7 cm H × 3.8 cm W × 9.5 cm D |
| Weight | ~0.5 kg |
| Mounting | Rack/slot-type, compatible with MasterLogic-200 base |
| Compliance / Standards | CE, UL listed, RoHS compliant |
| Typical Applications | Analog actuator control, valve positioning, industrial process loops |
FAQ
Q1: How many output channels does 2MLF-DC8A provide?
A1: It provides eight isolated current output channels for analog signal control.
Q2: What is the output range for each channel?
A2: Each channel supports 4–20 mA current output, suitable for most industrial actuators.
Q3: Can 2MLF-DC8A operate in high-noise industrial environments?
A3: Yes — each channel offers 1500 V isolation to reduce interference and protect circuitry.
Q4: Is it compatible with MasterLogic-200 PLC racks?
A4: Yes — the module integrates seamlessly with MasterLogic-200 base and expansion racks.
Q5: What resolution and accuracy can I expect?
A5: Each channel has 16-bit resolution with ±0.1% of full scale accuracy.
