Overview

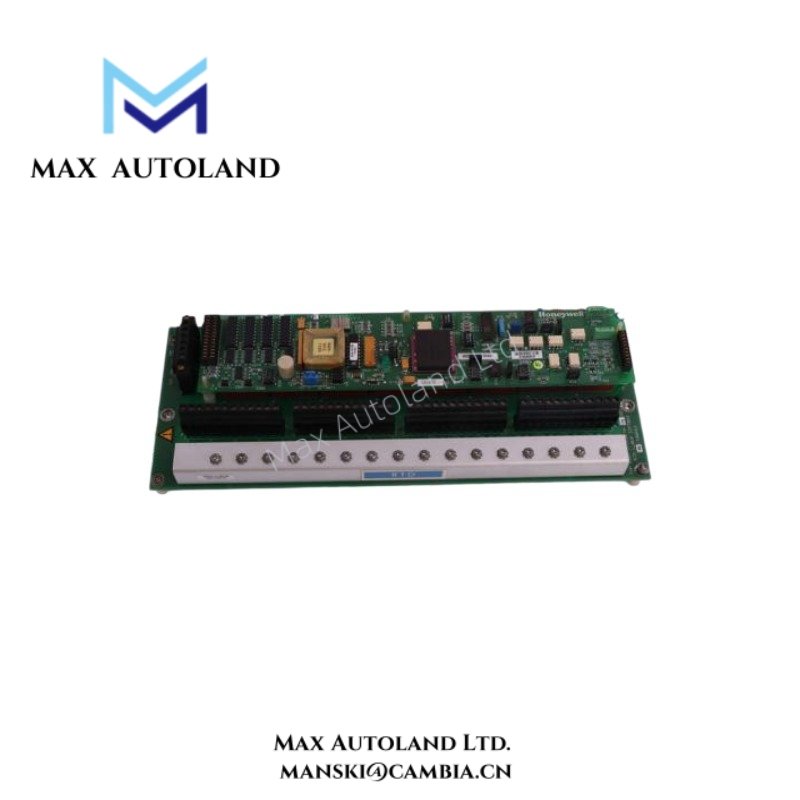

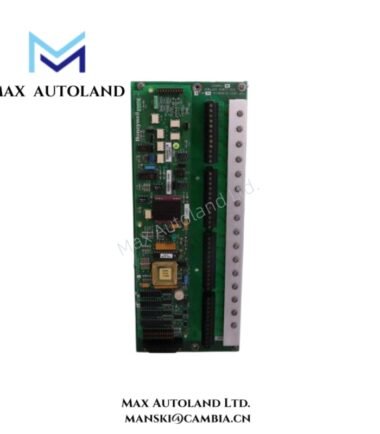

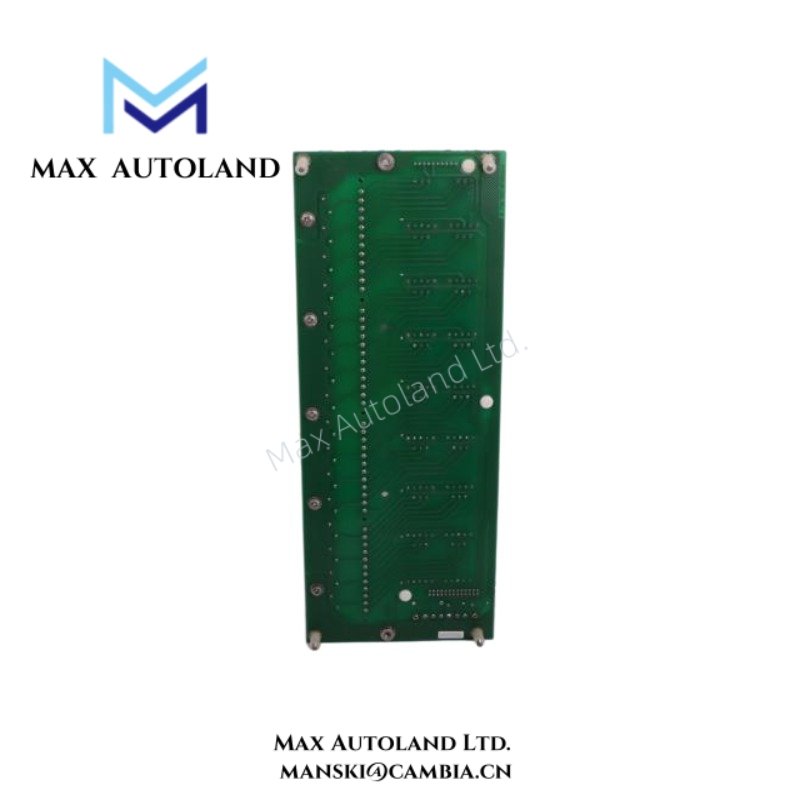

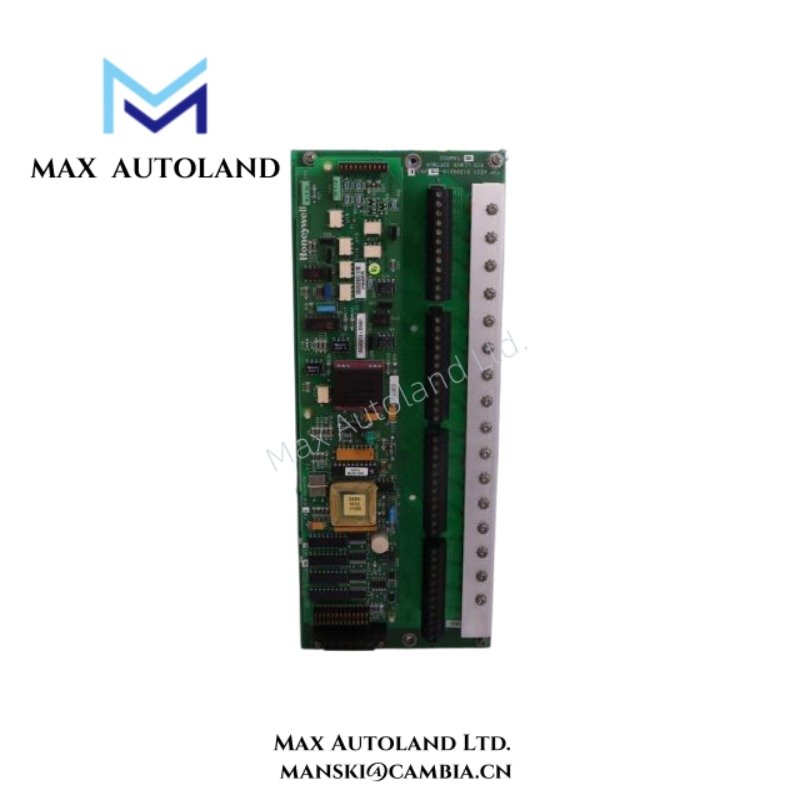

The MC-TAMR03 51309218-175 from Honeywell delivers precise low-level analog signal multiplexing for advanced industrial automation systems.
It processes millivolt-level signals while ensuring stable communication within Honeywell UCN distributed control architectures.
Moreover, the module supports accurate data acquisition, which improves monitoring reliability across critical process control environments.
Engineers select MC-TAMR03 51309218-175 for its robust isolation, compact structure, and consistent measurement performance.
Specification
| Parameter | Specification |
|---|---|
| Model | MC-TAMR03 51309218-175 |
| Manufacturer | Honeywell |
| Product Type | Low Level Analog Multiplexer Module |
| Series | Honeywell UCN (Universal Control Network) |
| Input Channels | 16 analog input channels |
| Input Signal Type | Low-level voltage signals |
| Input Voltage Range | ±100 mV typical |
| Resolution | High-resolution analog-to-digital conversion |
| Measurement Accuracy | ±0.1% of full scale |
| Multiplexing Method | Sequential channel scanning |
| Scan Time | ≤ 100 ms per full channel cycle |
| Isolation Type | Channel-to-system electrical isolation |
| Isolation Voltage | Up to 1500V AC |
| Interface | UCN backplane communication |
| Connector Type | Terminal block for field wiring |
| Power Supply | Backplane powered |
| Power Consumption | ≤ 6W typical |
| Heat Dissipation | Low thermal output design |
| Dimensions (L × W × H) | Approx. 160 × 120 × 50 mm |
| Weight | Approx. 0.55 kg |
| Mounting Method | Rack-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | Meets industrial EMC standards |
| Noise Suppression | Integrated filtering and shielding design |
| LED Indicators | Channel status and diagnostic LEDs |
| Wiring Method | Screw terminal connections |
| Redundancy Support | Compatible with redundant system architectures |
FAQ
Q1: What type of input signals does the module support?
The MC-TAMR03 51309218-175 supports low-level analog voltage signals within a ±100 mV range.
Q2: How many channels does the module provide?
The MC-TAMR03 51309218-175 provides 16 analog input channels for multiplexed signal acquisition.
Q3: What is the delivery time for this product?
We keep MC-TAMR03 51309218-175 in stock, and we ship within 3 days to 2 weeks.
Q4: Which shipping services do you use?
We usually ship MC-TAMR03 51309218-175 via DHL and other reliable international logistics providers.
Q5: Can I return the product if quality issues occur?
Yes, we support returns within 30 days if any quality issue occurs after delivery.
