Overview

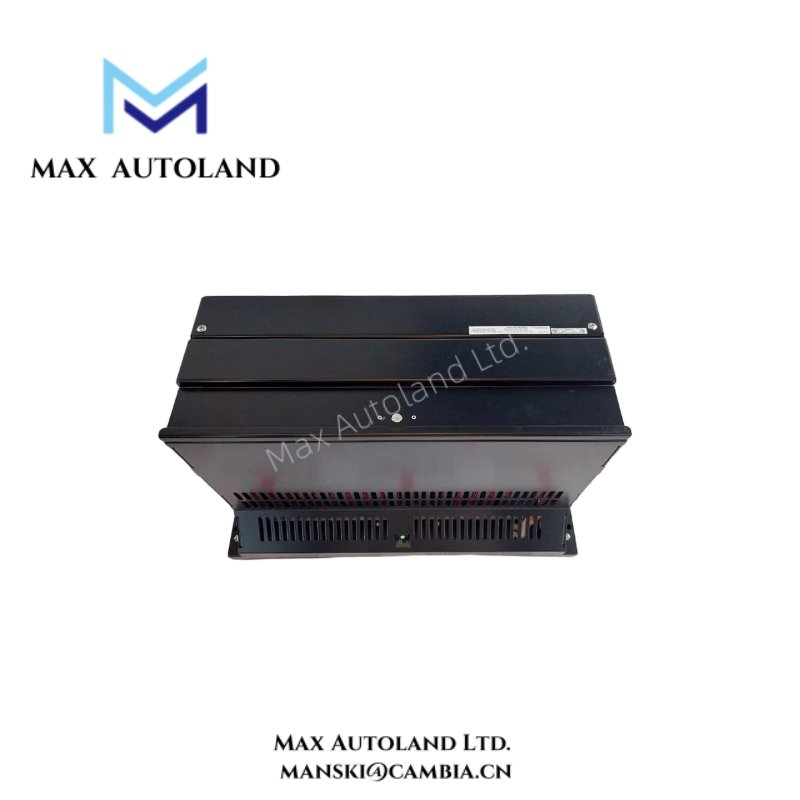

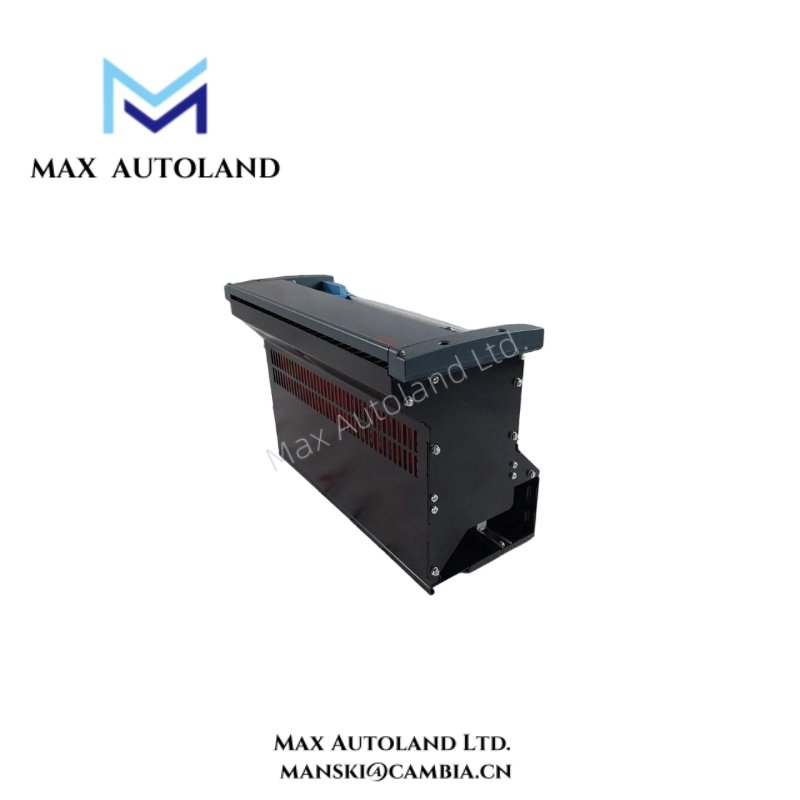

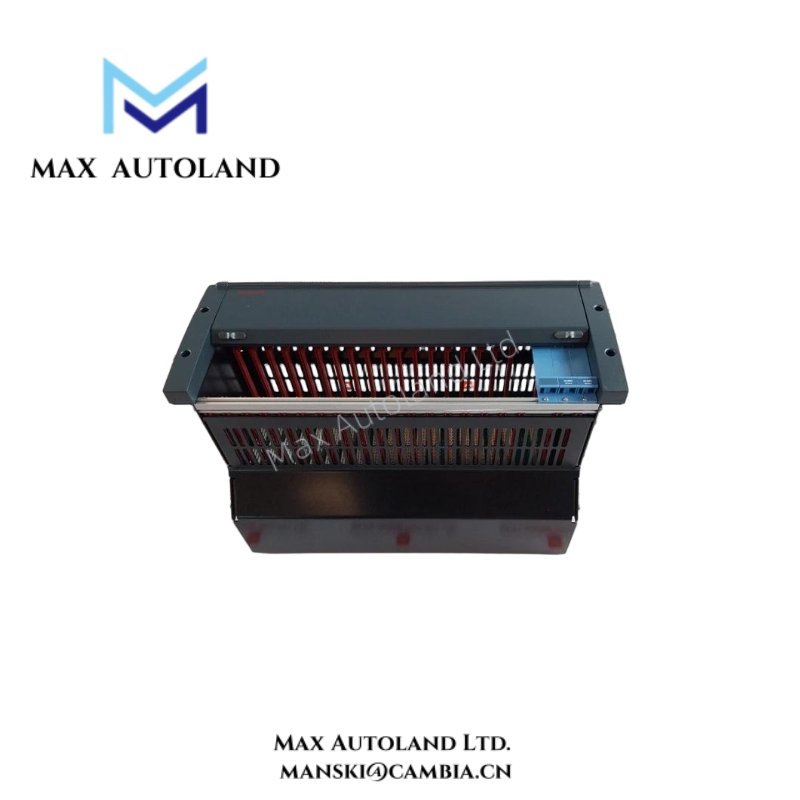

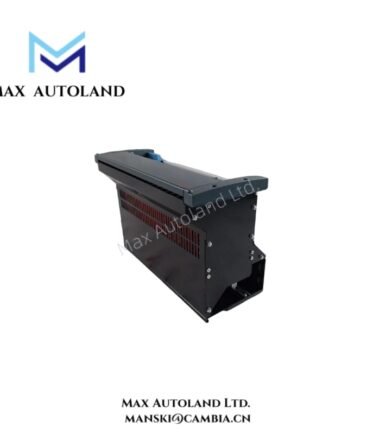

The Honeywell FC-IOCHAS-0003R is a robust chassis designed for redundant I/O modules, ensuring reliable operation in critical automation systems. It provides secure housing and organized slot arrangement, allowing engineers to install and maintain multiple I/O modules efficiently. Moreover, the chassis supports hot-swappable modules, which reduces system downtime during maintenance or upgrades. Therefore, it becomes an ideal solution for process control environments requiring continuous and fail-safe operations. Its rugged construction withstands harsh industrial conditions, ensuring long-term reliability and operational stability.
Specification
| Specification | Details |
|---|---|
| Model | FC-IOCHAS-0003R |
| Module Slots | 12 redundant I/O module slots |
| Module Compatibility | Honeywell redundant I/O modules |
| Power Supply | 24 VDC nominal, dual-redundant input supported |
| Power Consumption | Approx. 150 W fully populated |
| Mounting | 19-inch rack mountable or panel-mountable |
| Dimensions | Width: 483 mm (19 in), Height: 133 mm (3U), Depth: 400 mm |
| Weight | Approx. 12 kg (26.5 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Hot-Swap Capability | Yes, allows replacement of modules without shutting down system |
| Cooling | Convection cooled with optional fan support |
| Indicators | LED status indicators for each module and power supply |
| Connectivity | Supports Honeywell Experion PKS communication and control network |
| Safety & Compliance | CE, UL listed, conforms to industrial EMC and safety standards |
| Environmental Protection | IP20 (enclosed electronics), suitable for indoor industrial environments |
| Redundancy | Supports redundant I/O and dual power supply for high availability |
| Maintenance | Easy access for module installation and replacement |
| Typical Applications | Continuous process control, chemical, oil & gas, power plants, redundant I/O installations |
FAQ
Q1: What is the main function of the FC-IOCHAS-0003R chassis?
A1: It provides secure housing and slot organization for redundant I/O modules in critical systems.
Q2: Can the modules be replaced without shutting down the system?
A2: Yes, it supports hot-swappable modules to reduce downtime during maintenance.
Q3: How many I/O modules can the chassis accommodate?
A3: The chassis can hold up to 12 redundant I/O modules.
Q4: What power requirements does the chassis have?
A4: It operates on 24 VDC nominal and supports dual-redundant input for reliability.
Q5: Is the chassis suitable for harsh industrial environments?
A5: Yes, its rugged design ensures durability in demanding industrial conditions.
