Overview

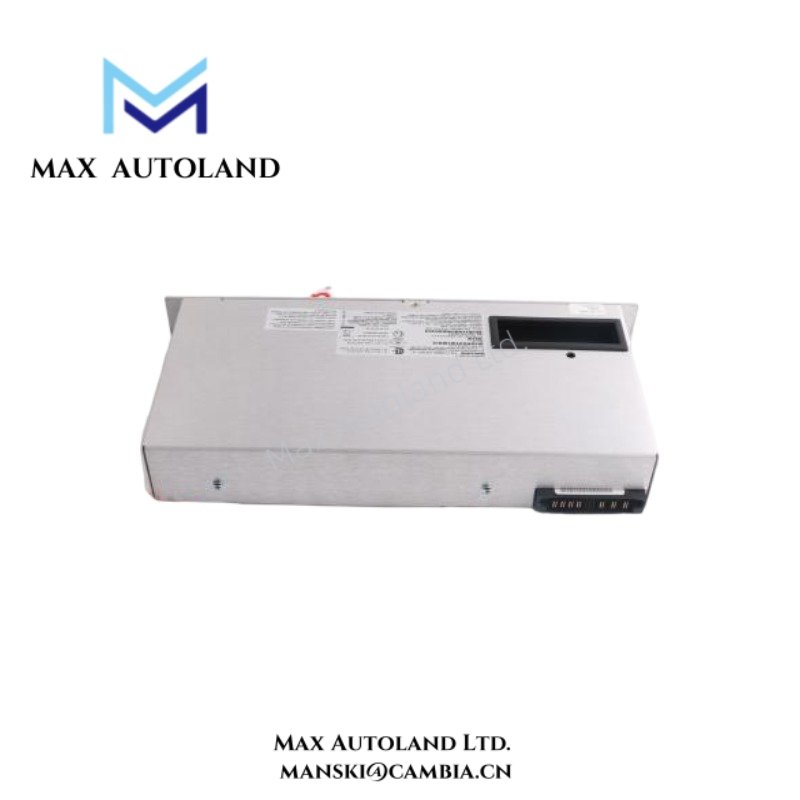

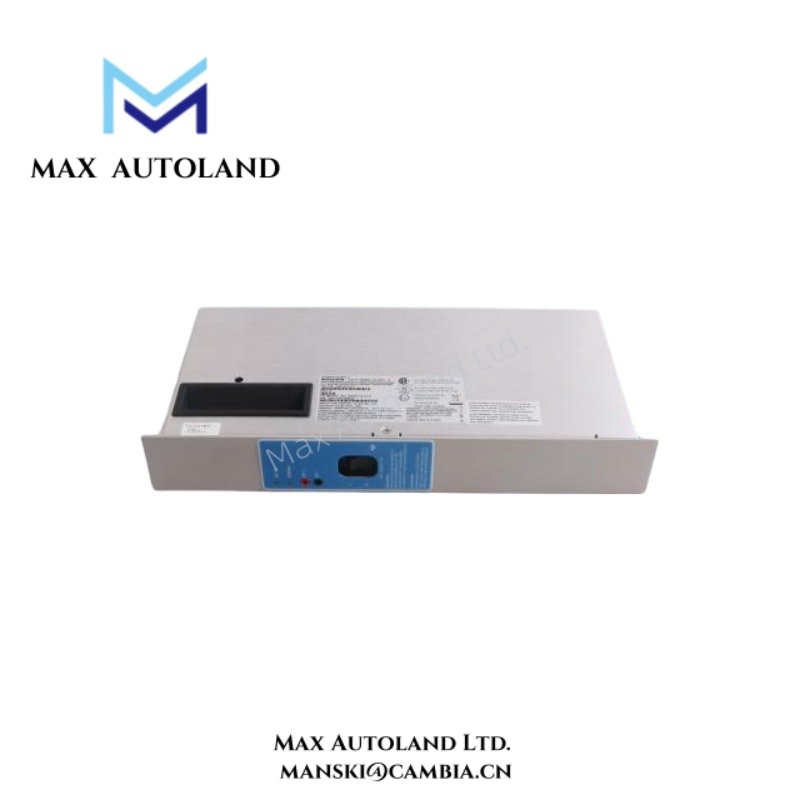

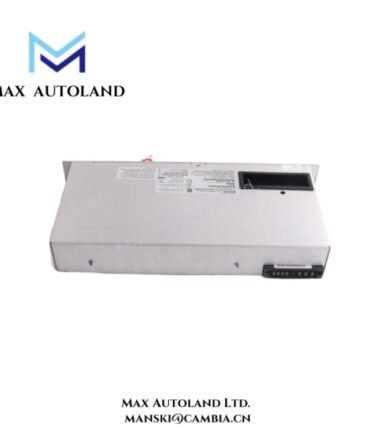

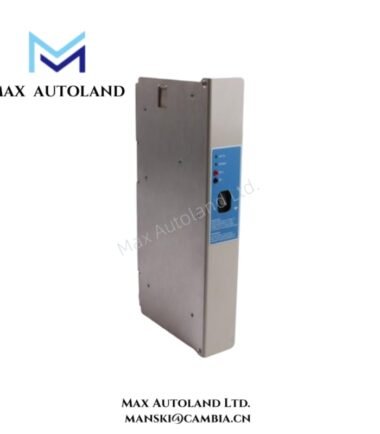

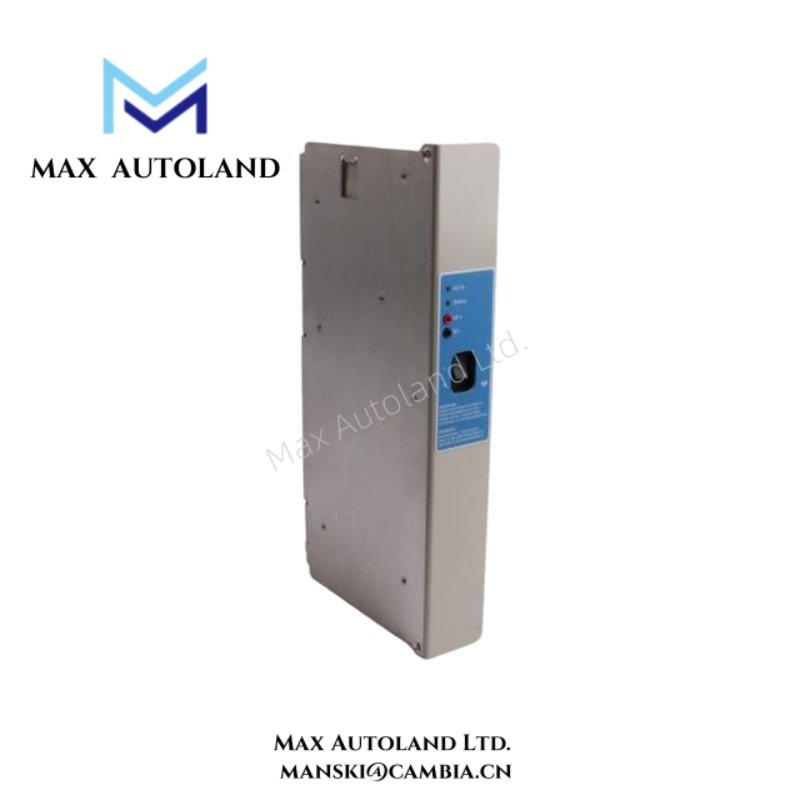

Honeywell designs the 51198685-100 SPS5710-2-LF power supply module for stable energy conversion in industrial FSC systems.
It delivers regulated DC output and ensures continuous operation for control modules under varying electrical load conditions.
Moreover, this module enhances system reliability by maintaining consistent voltage across connected automation components.
Core Features
The 51198685-100 provides efficient AC to DC conversion and supports stable power delivery across industrial control systems.
Additionally, it integrates advanced protection circuits and improves operational safety during voltage fluctuations and overload conditions.
Furthermore, Honeywell uses industrial-grade materials to ensure long-term durability and consistent performance in demanding environments.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Model | 51198685-100 |
| Series | SPS5710-2-LF |
| Product Type | Power Supply Module |
| System Compatibility | Honeywell FSC and industrial control systems |
| Function | Converts AC input power into regulated DC output for system modules |
| Input Voltage | 100–240V AC wide input range |
| Input Frequency | 50/60 Hz |
| Output Voltage | 5V DC and 24V DC regulated outputs |
| Output Current | Up to 8–12A depending on system load requirements |
| Power Rating | Approx. 120W to 180W output capacity |
| Efficiency | High efficiency conversion typically above 85 percent |
| Energy Storage | Integrated capacitors for voltage stabilization and transient response |
| Protection Features | Overvoltage overcurrent short circuit and thermal protection mechanisms |
| Interface Type | Backplane and terminal connections for power distribution |
| Number of Outputs | Multiple regulated output channels for system modules |
| Cooling Method | Passive airflow cooling supported by cabinet ventilation design |
| Mounting Type | Rack-mounted installation within industrial control cabinets |
| Material | Metal housing with heat dissipation structure for thermal management |
| Dimensions | Standard module size for seamless integration into Honeywell racks |
| Weight | Approx. 1.0–1.4 kg depending on configuration |
| Operating Temperature | 0°C to 60°C for industrial operating environments |
| Storage Temperature | -20°C to 70°C for safe storage and transportation |
| Humidity Range | 5% to 95% non-condensing |
| Ripple Noise | Low ripple output for sensitive electronics protection |
| Compatibility | Compatible with Honeywell FSC and related automation modules |
| Application | Industrial automation process control and power distribution systems |
FAQ
Q1: What condition is the 51198685-100 power supply module supplied in?
We supply the 51198685-100 in brand new original factory sealed condition for industrial automation applications.
Q2: Do you have stock available and how fast can you ship orders?
We keep stock ready and ship within three days to two weeks depending on order quantity and demand.
Q3: Which logistics carriers do you typically use for delivery?
We commonly use DHL and similar express logistics providers for fast and reliable global shipping services.
Q4: What protection features does this module include for safe operation?
The 51198685-100 includes overvoltage overcurrent short circuit and thermal protection for stable system performance.
Q5: Do you support returns if quality issues occur after delivery?
We support a thirty-day return policy if verified quality issues appear after delivery and inspection.
