Overview

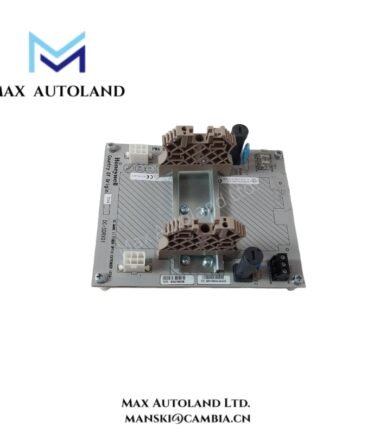

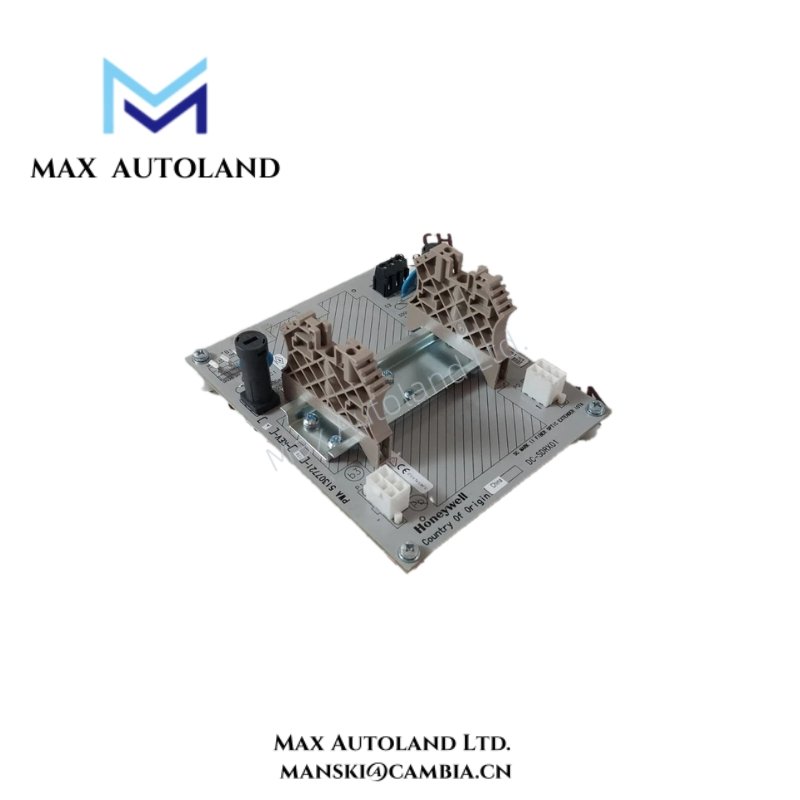

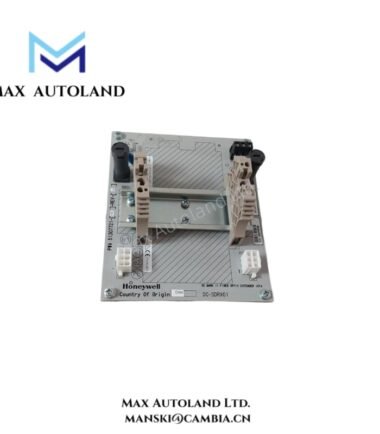

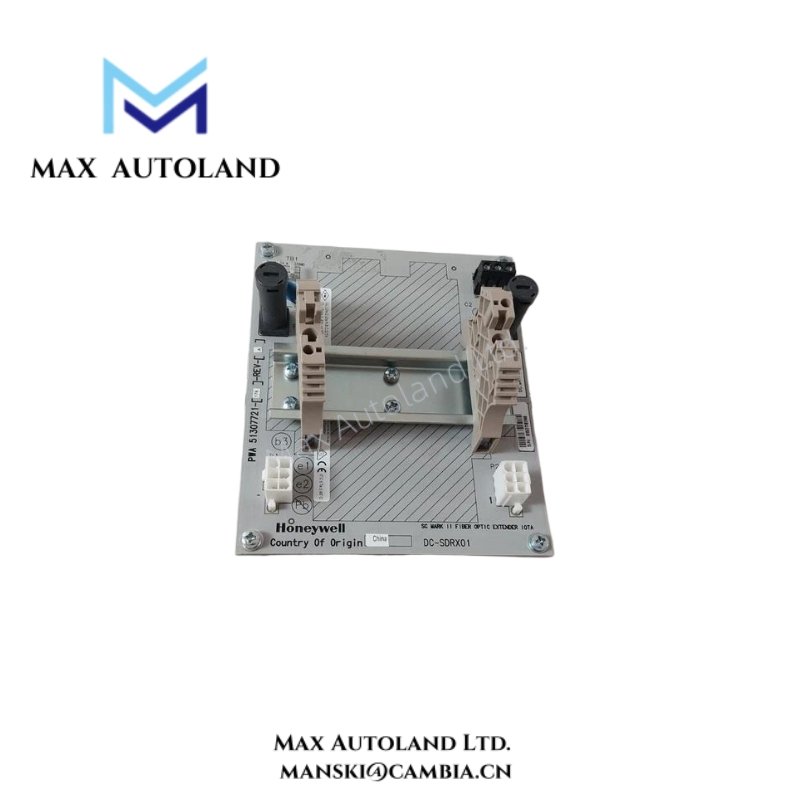

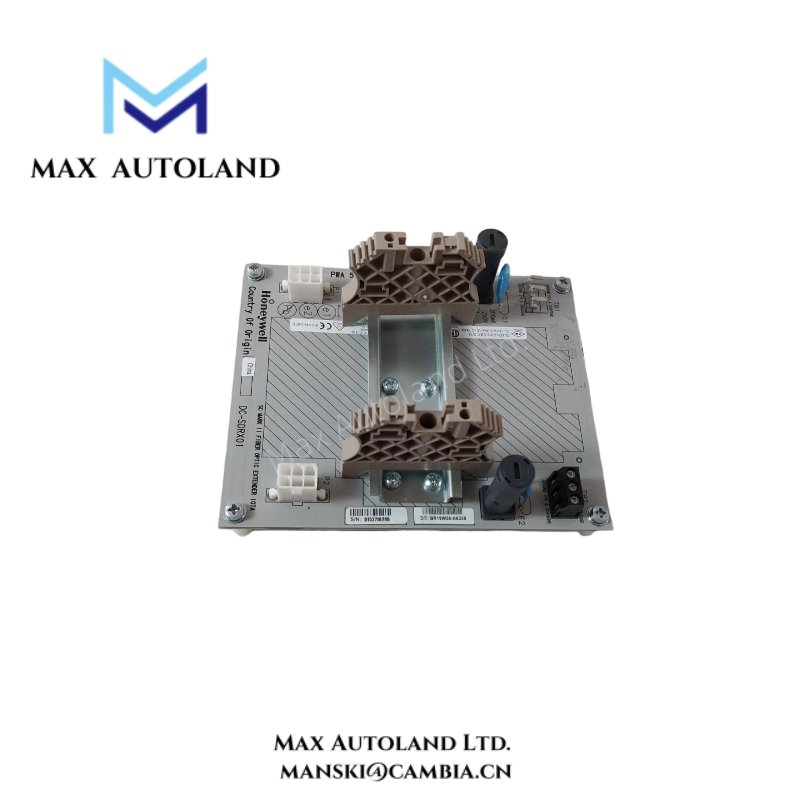

The DC-SDRX01 Fiber Optic Converter by Honeywell ensures high-speed and reliable data transmission for industrial automation systems. It converts electrical signals into optical signals to enable long-distance communication with minimal loss. Moreover, its robust construction allows consistent performance in harsh environments. Therefore, engineers can expand network connectivity without compromising signal integrity. The compact design supports flexible installation in control rooms or field racks.
Specification
| Parameter | Value / Description |
|---|---|
| Model | DC-SDRX01 |
| Module Type | Fiber Optic Converter |
| Manufacturer | Honeywell |
| Input Signal | Digital Electrical, TTL or RS-485 compatible |
| Input Voltage Range | 5–24V DC |
| Input Current | ≤100 mA typical |
| Output Signal | Optical Fiber Signal (Single-Mode or Multi-Mode) |
| Wavelength | 1310 nm / 1550 nm typical |
| Transmission Distance | Up to 10 km (single-mode), 2 km (multi-mode) |
| Data Rate | 10/100 Mbps, auto-negotiation |
| Connector Type | SC/FC fiber optic connector (user-selectable) |
| Signal Integrity | Bit Error Rate ≤ 10^-9 |
| Optical Power Output | -3 dBm to +3 dBm typical |
| Receiver Sensitivity | -20 dBm typical |
| Isolation | >30 dB |
| Power Supply | 24V DC ±10% |
| Power Consumption | ≤5 W typical |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5–95% RH, non-condensing |
| Shock & Vibration | IEC 60068-2 compliant |
| MTBF (Mean Time Between Failure) | ≥100,000 hours |
| Installation Method | Rack-mounted or DIN rail compatible |
| Module Dimensions | 100 x 60 x 30 mm |
| Weight | 0.25 kg |
FAQ
Q1: What is the main purpose of the DC-SDRX01?
It converts digital electrical signals into optical signals for long-distance industrial communication.
Q2: What is the maximum transmission distance?
The converter supports up to 10 km using single-mode fiber.
Q3: Can it operate in harsh industrial conditions?
Yes. It functions reliably in temperatures from -20°C to 70°C.
Q4: Which industries commonly use this converter?
Chemical, power generation, manufacturing, and process automation facilities rely on it.
Q5: How is it installed?
It installs easily on racks or DIN rails with standard SC/FC fiber connectors.
