Overview

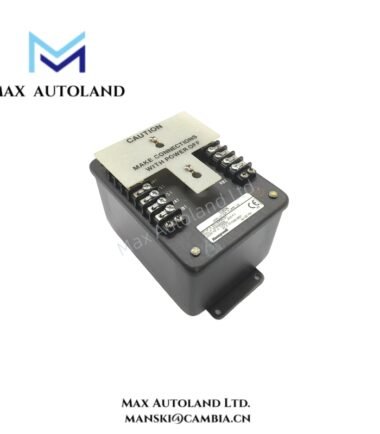

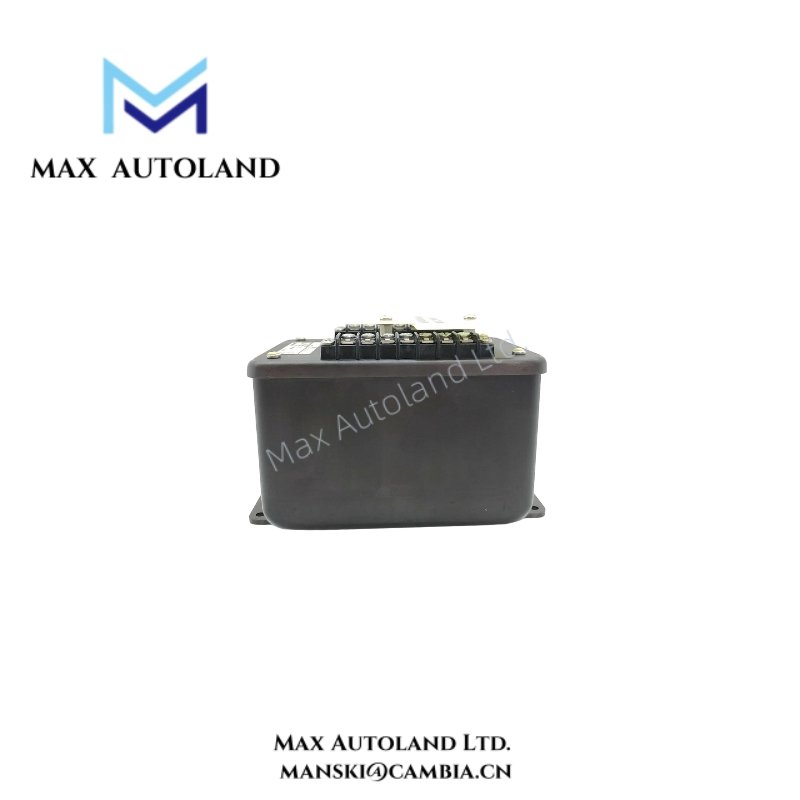

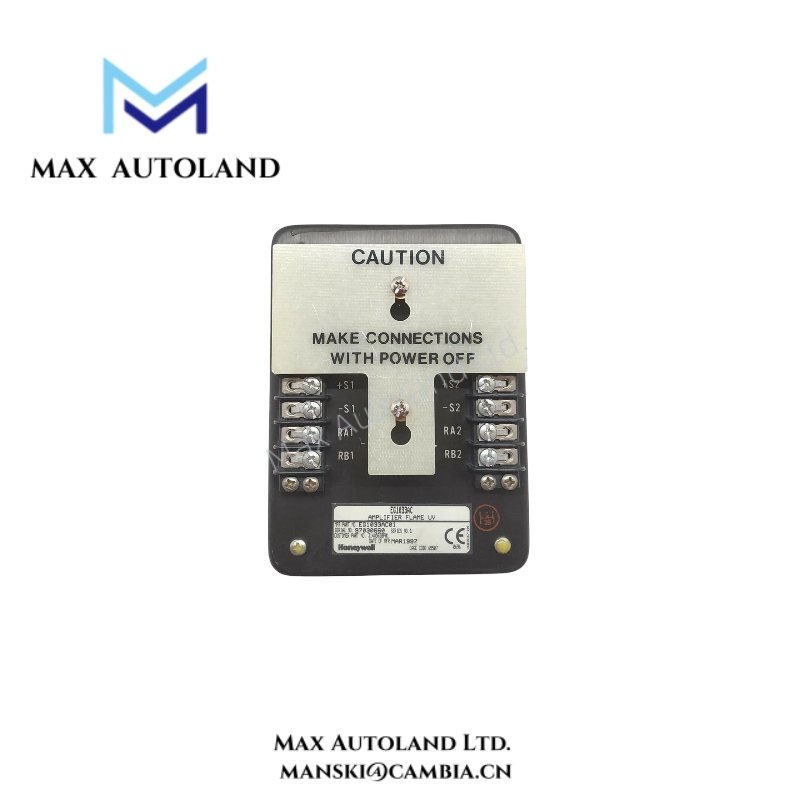

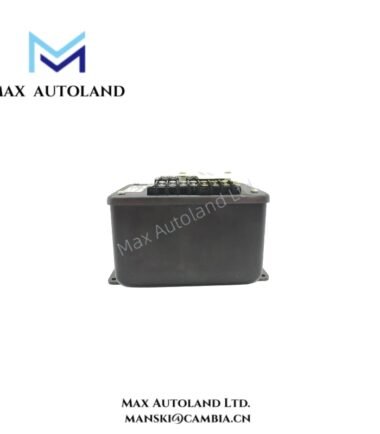

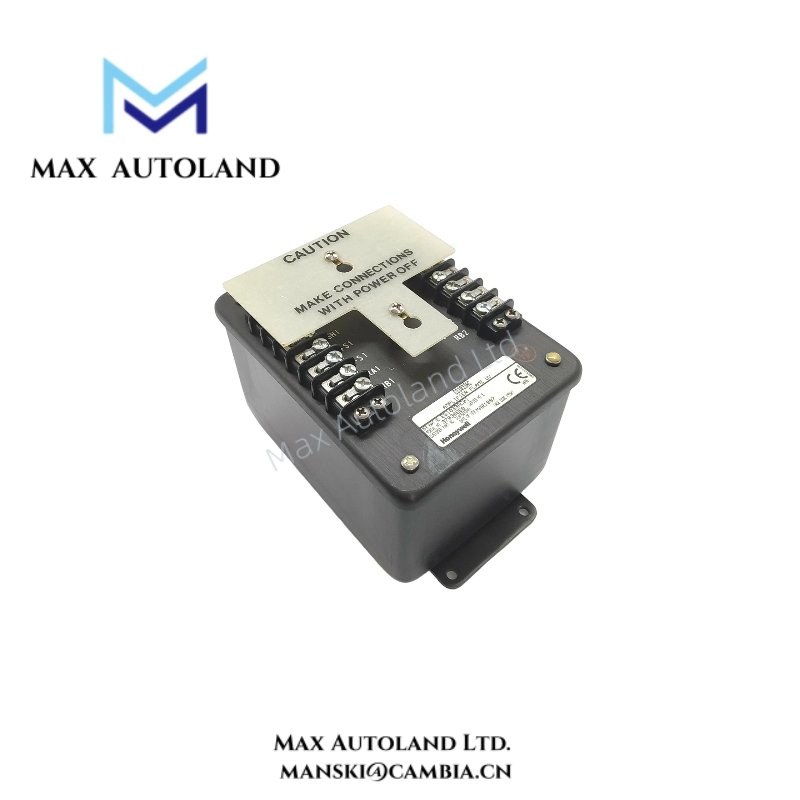

The Honeywell EG1033AC01 delivers dependable signal amplification for LG1093 UV flame detectors and ensures accurate flame verification in demanding combustion systems. Moreover, it converts ultraviolet flame signals into safe relay outputs while maintaining stable performance under varying electrical conditions. In addition, the amplifier supports a wide input-voltage range, which increases installation flexibility across different burner and power-generation platforms. Therefore, it enhances overall system safety by providing fast response times and consistent flame-status feedback. Furthermore, its rugged design promotes long-term reliability, allowing operators to maintain efficient combustion control with minimal maintenance effort.
Specification
| Parameter | Specification |
|---|---|
| Model / Part Number | EG1033AA |
| Physical Dimensions | 6.62 × 4.25 × 2.32 inches |
| Mounting Holes | Four holes, 0.20-inch diameter, spaced 6.00 × 2.00 inches |
| Power Input | 28 +0.14 VDC, 0.5 A max |
| Amplifier Output | Transistor open collector output |
| Flame Detect Time | Typical: 0.1 sec; Maximum: 1.0 sec |
| Flame Loss Detect Time | Maximum: 0.2 sec |
| Compatible Sensors | LG1093 ultraviolet flame detectors |
| Max Sensor-Amplifier Distance | Up to 330 m (1,000 ft) |
| Operating Temperature | –40°C to +176°C |
| Certifications | CE Mark (EMC Directive 89/336/EEC; LVD Directive 73/23/EEC) |
| Application Category | Industrial burner and combustion safety systems |
| Mounting Method | Control panel or cabinet mounting |
| Output Function | Flame / No-flame status signaling via transistor output |
FAQ
Q1: Which flame detector works with the EG1033AC01?
A1: It is designed to operate with Honeywell LG1093 UV flame sensors.
Q2: What supply voltages does this amplifier accept?
A2: It supports 28 VDC, 20–35 VDC, and 115 VAC input power.
Q3: How fast does the amplifier respond to flame changes?
A3: It detects flame presence in about 0.1 seconds and flame loss in less than 0.2 seconds.
Q4: How far can the sensor be installed from the amplifier?
A4: The system supports distances up to 330 meters between the sensor and amplifier.
Q5: Is it suitable for hazardous installations?
A5: Yes, it carries FM and ATEX certifications for explosive atmospheric environments.
Q6: Does it require frequent maintenance?
A6: No, it requires only routine functional tests and standard safety checks.
