Overview

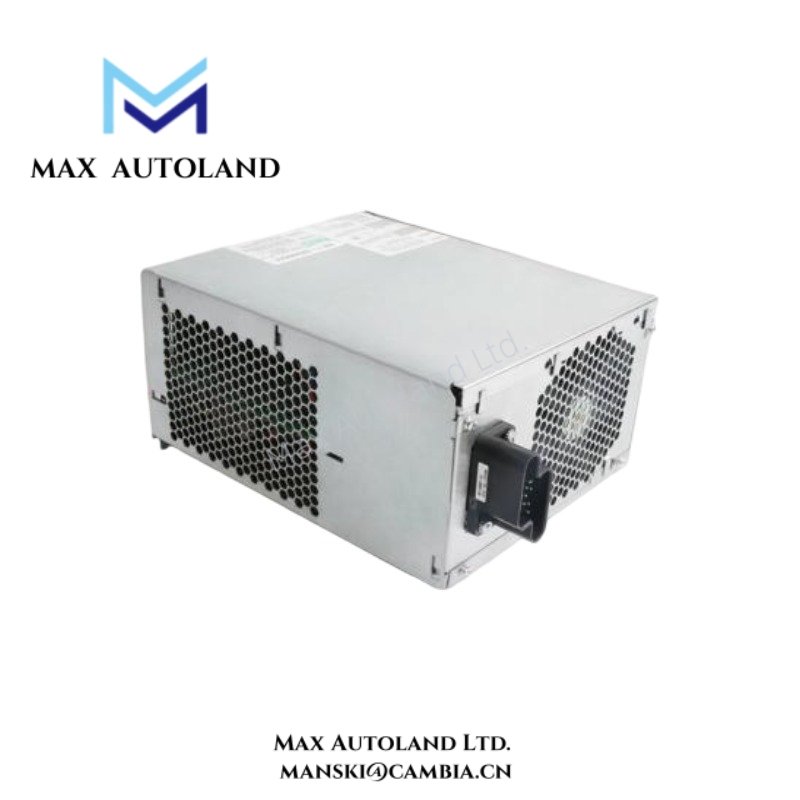

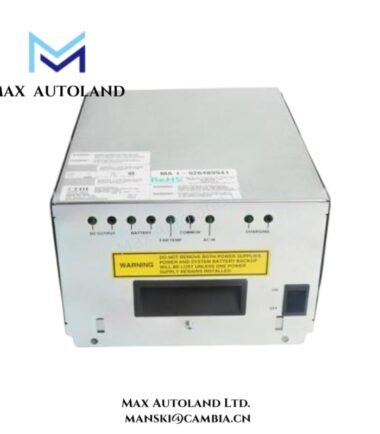

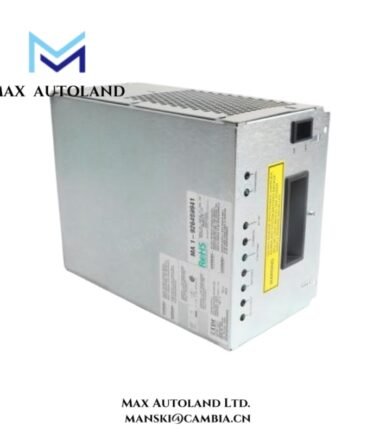

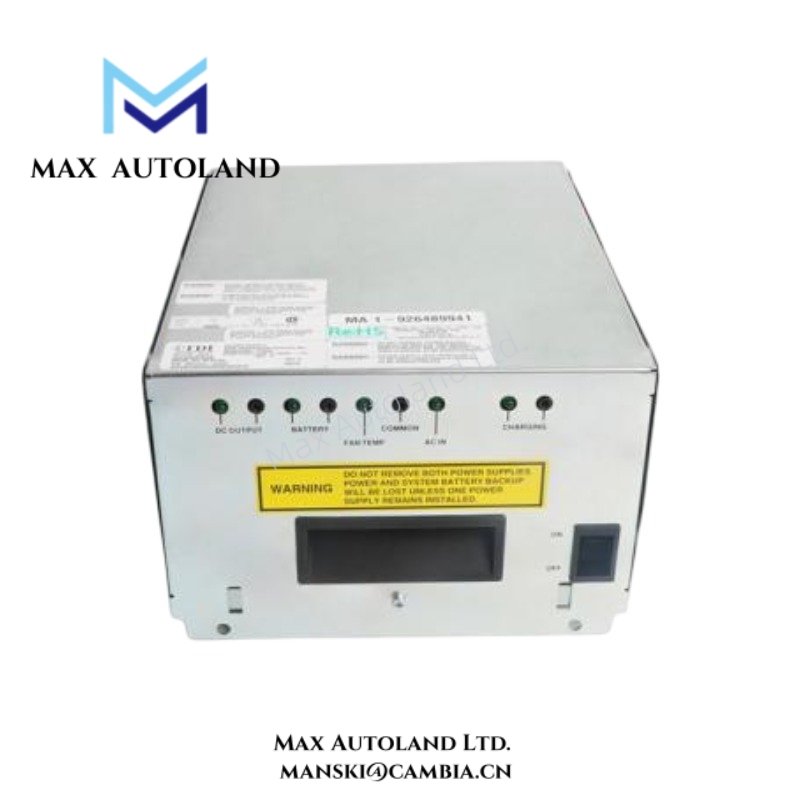

Honeywell develops the 51198651-100 SPS5785 HPM power supply module for TDC 3000 high performance process manager systems.
It delivers stable DC power and ensures continuous operation for controllers and communication modules in industrial environments.
Moreover, this module improves system reliability by maintaining consistent voltage under varying load and operating conditions.
Core Features
The 51198651-100 provides efficient power conversion and supports stable energy distribution across HPM system components.
Additionally, it integrates protection circuits and enhances operational safety during voltage fluctuations and overload conditions.
Furthermore, Honeywell designs this module with industrial-grade components to ensure durability and long-term system performance.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Model | 51198651-100 |
| Series | SPS5785 |
| Product Type | HPM Power Supply Module |
| System Series | TDC 3000 High Performance Process Manager |
| Function | Converts input power into regulated DC output for HPM modules |
| Input Voltage | 100–240V AC wide input range |
| Input Frequency | 50/60 Hz |
| Output Voltage | 5V DC and 24V DC regulated outputs |
| Output Current | Up to 8–12A depending on load configuration |
| Power Rating | Approx. 120W to 180W output capacity |
| Efficiency | High efficiency conversion typically above 85 percent |
| Energy Storage | Integrated capacitors for voltage stabilization and transient suppression |
| Protection Features | Overvoltage overcurrent short circuit and thermal protection |
| Interface Type | Backplane connection for direct integration with HPM racks |
| Number of Outputs | Multiple regulated output channels for system modules |
| Cooling Method | Passive airflow cooling supported by cabinet ventilation systems |
| Mounting Type | Rack-mounted within TDC 3000 control cabinet infrastructure |
| Material | Industrial-grade metal housing with heat dissipation structure |
| Dimensions | Standard HPM module size for seamless rack installation compatibility |
| Weight | Approx. 1.0–1.5 kg depending on configuration |
| Operating Temperature | 0°C to 60°C for industrial control environments |
| Storage Temperature | -20°C to 70°C for safe storage and transportation |
| Humidity Range | 5% to 95% non-condensing |
| Ripple Noise | Low ripple output for sensitive control electronics protection |
| Compatibility | Compatible with Honeywell TDC 3000 HPM controllers and modules |
| Application | Industrial automation process control and power distribution systems |
FAQ
Q1: What condition is the 51198651-100 HPM power supply module supplied in?
We supply the 51198651-100 in brand new original factory sealed condition for industrial automation applications.
Q2: Do you have stock available and how fast can you ship orders?
We keep stock ready and ship within three days to two weeks depending on order quantity and demand.
Q3: Which logistics carriers do you typically use for delivery?
We commonly use DHL and similar express logistics providers for fast and reliable global shipping services.
Q4: What protection features does this module include for safe operation?
The 51198651-100 includes overvoltage overcurrent short circuit and thermal protection for stable system performance.
Q5: Do you support returns if quality issues occur after delivery?
We support a thirty-day return policy if verified quality issues appear after delivery and inspection.
