Overview

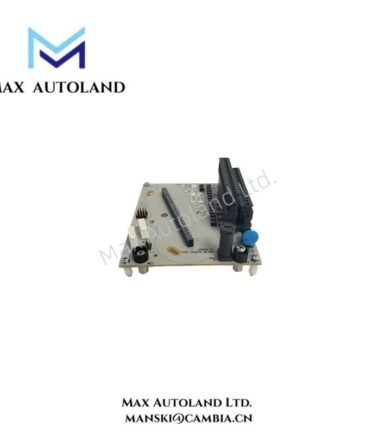

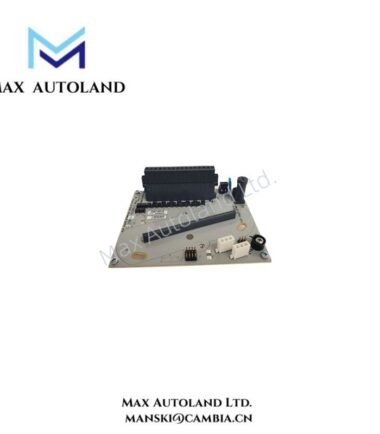

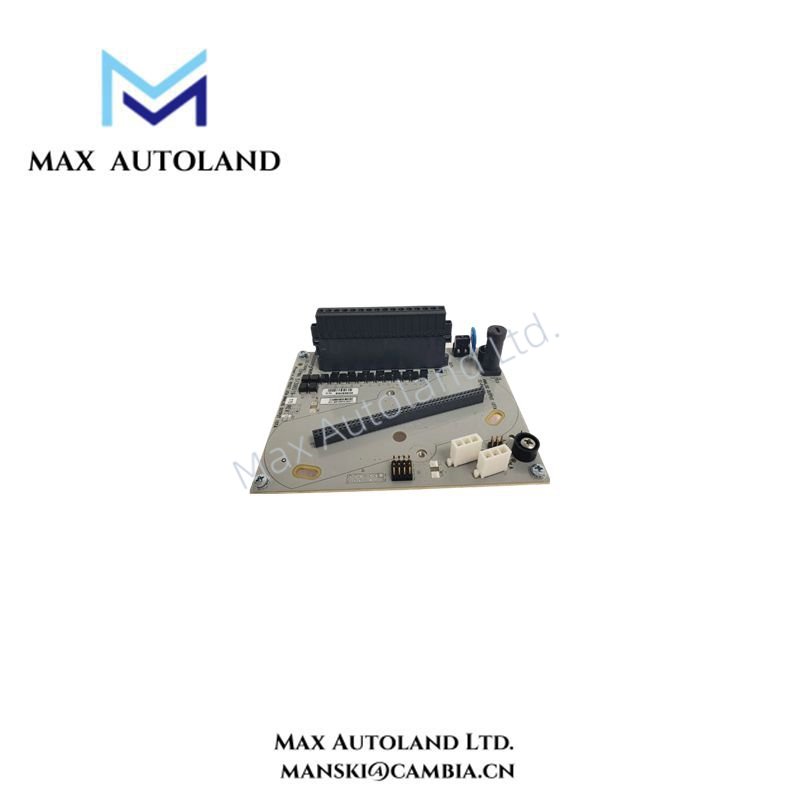

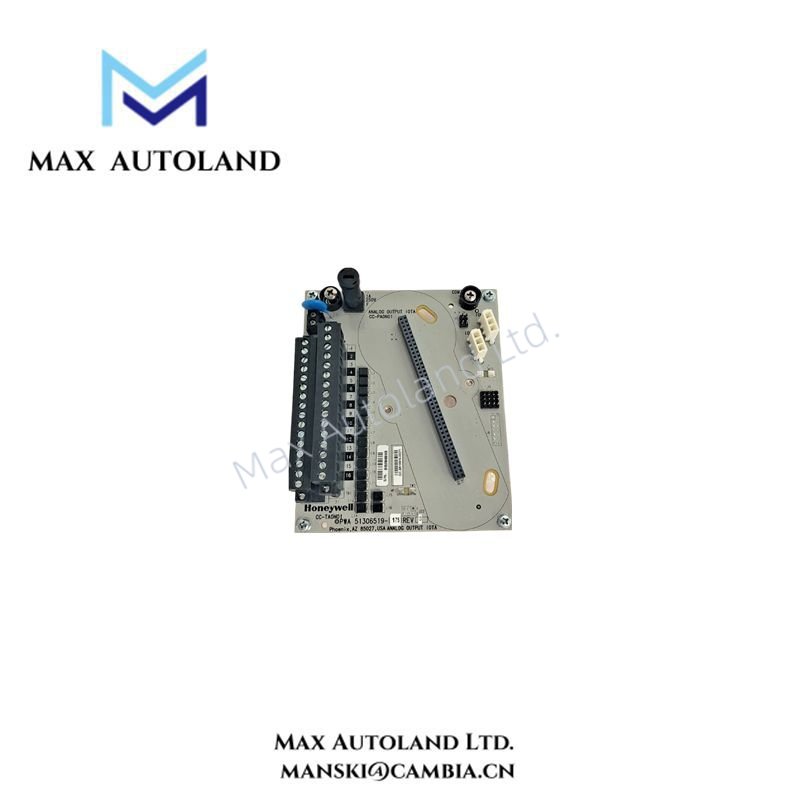

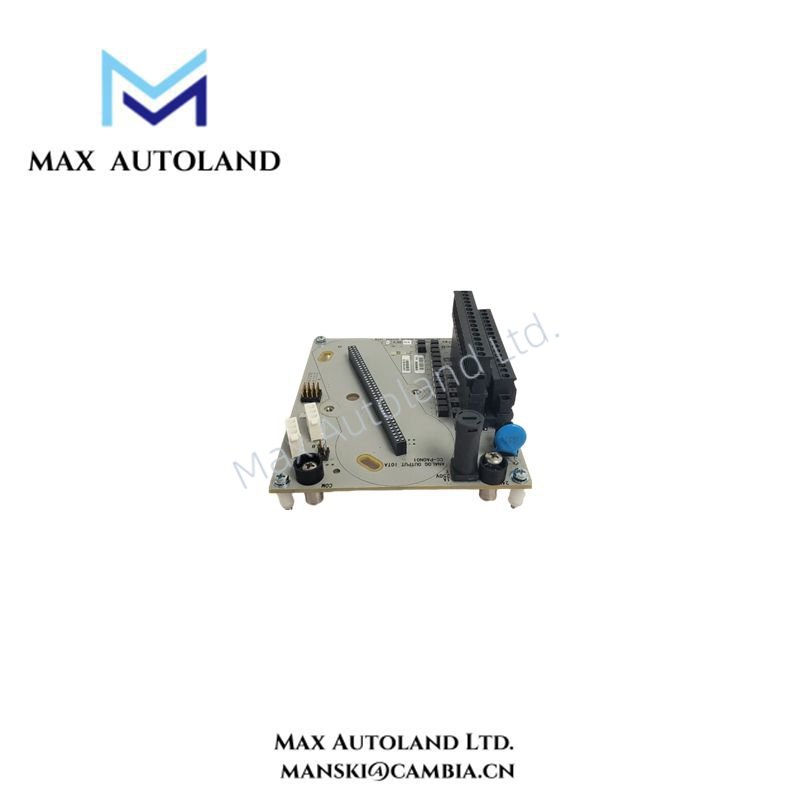

The Honeywell CC-TAON01 is a non-redundant, 6-inch Analog Output Input/Output Termination Assembly (IOTA) module designed for Honeywell’s Series C control systems. It provides 16 output channels, delivering precise analog signals to connected field devices. This module is ideal for applications requiring accurate and reliable analog output in distributed control systems.
The Analog Output (AO) Module delivers a high-level, constant current to actuators and recording or indicating devices. This Series C I/O module can also detect open field wiring and provide a Channel Soft Failure indication.
Specification
| Feature | Specification |
|---|---|
| Model | CC-TAON01 |
| Manufacturer | Honeywell |
| Series | Series C |
| Module Type | Analog Output IOTA |
| Channels | 16 |
| Redundancy | Non-redundant |
| Form Factor | 6-inch |
| Output Type | 4–20 mA |
| Output Ripple | < 100 mV peak-to-peak at power line frequency, across 250Ω load |
| Output Temperature Drift | 0.005% of Full Scale/°C |
| Output Readback Accuracy | ±4% of Full Scale |
| Output Current Linearity | ±0.05% of Full Scale nominal |
Manual/Datasheet PDF
CC-TAON01 Honeywell C300 AO IOTA Non-Redundant 6” datasheet
