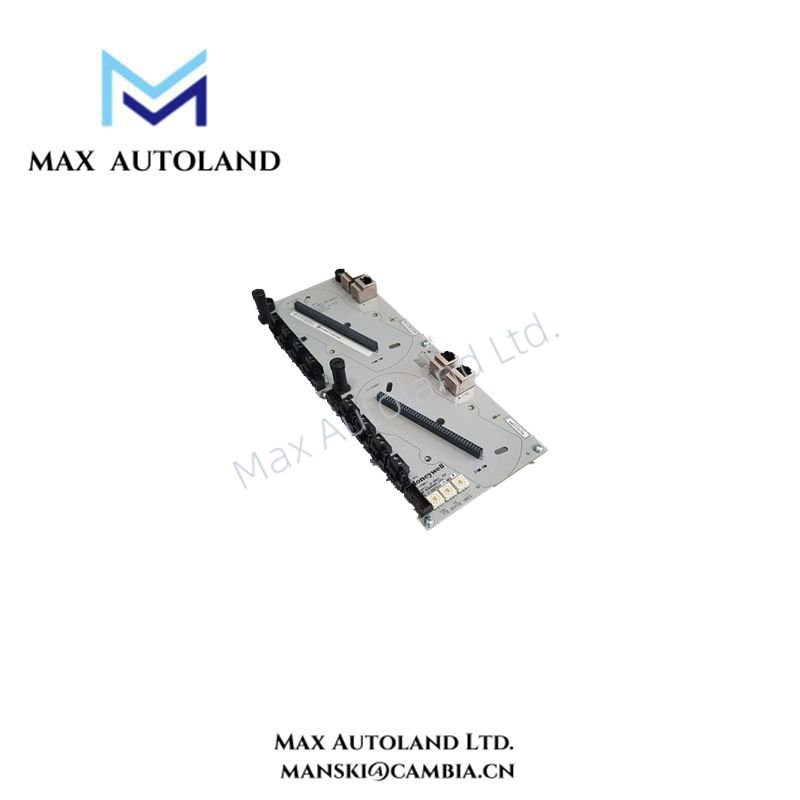

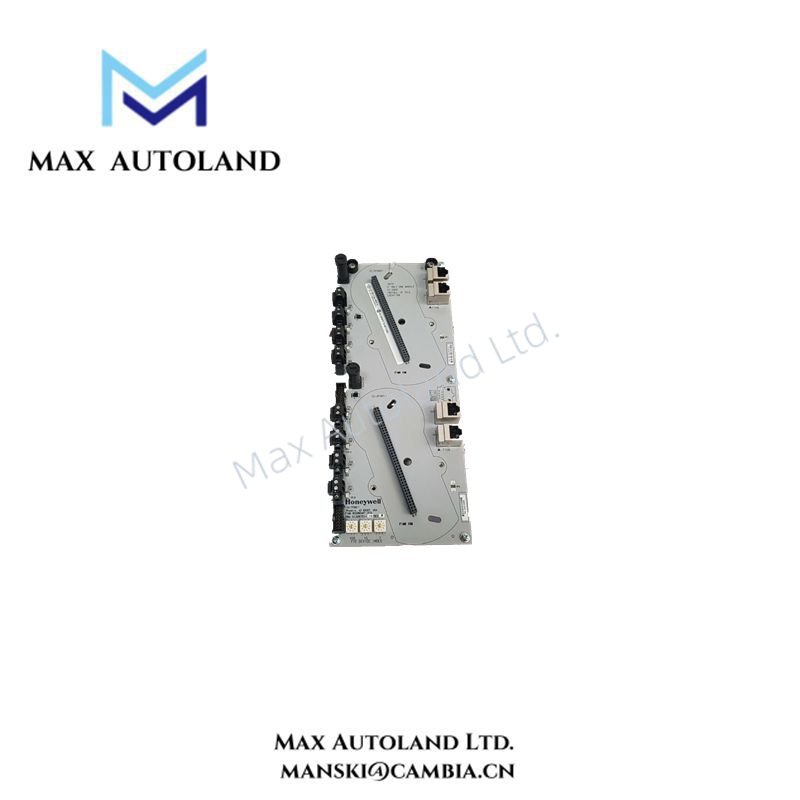

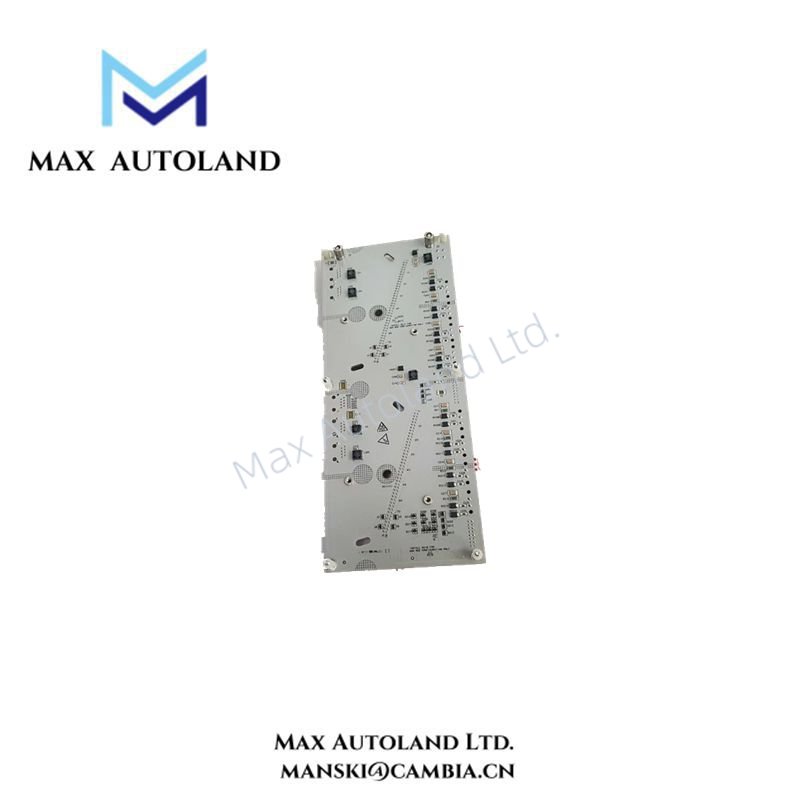

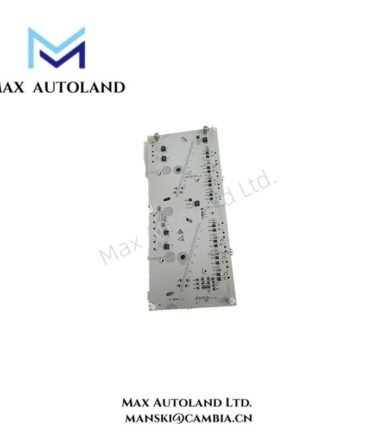

CC-TFB811 Honeywell Series C Fieldbus Interface IOTA

Overview

The Honeywell CC-TFB811 (51306751-175) is a Fieldbus Interface Input/Output Termination Assembly (IOTA) for Honeywell Experion PKS Series C systems. It provides the physical termination interface for an FIM8 Fieldbus Interface Module, supporting up to 8 FOUNDATION Fieldbus H1 networks per FIM. The assembly supports redundant and non-redundant configurations, subject to the system hardware arrangement.

Hardware Specifications

FOUNDATION Fieldbus H1 Interface Characteristics

The CC-TFB811 provides the termination hardware for FOUNDATION Fieldbus H1 communication between the FIM8 and connected field devices. H1 operates at 31.25 kbps and carries digital process data over the fieldbus network.

The assembly supports up to 8 H1 network connections per FIM. Each network requires appropriate fieldbus segment wiring, power arrangements, and device configuration. The configured macrocycle period determines the scheduled communication cycle for supported fieldbus operations.

For redundant installations, the physical IOTA arrangement must match the applicable Series C hardware configuration. Confirm the supported redundancy topology and module compatibility against the relevant Honeywell installation documentation.

Frequently Asked Questions (FAQ)

Q: How many FOUNDATION Fieldbus H1 networks can the CC-TFB811 support?

A: The supplied specifications state that the assembly supports up to 8 H1 networks per FIM8, operating at 31.25 kbps.

Q: Does the CC-TFB811 support redundant configurations?

A: Yes. The supplied description identifies support for redundant and non-redundant configurations. Confirm the required IOTA arrangement and compatible FIM8 hardware before installation.

Q: What should technicians check before energizing the assembly?

A: Inspect the IOTA, verify the FIM8 compatibility, check the F1 fuse rating, confirm fieldbus terminal wiring, and inspect cable shielding and grounding. Verify the applicable hazardous-area requirements before energizing equipment in a classified location.

Field Installation Guidelines

• Hardware compatibility: Confirm that the CC-TFB811 part number matches the intended Honeywell Series C IOTA configuration and FIM8 interface.
• Mounting: Install the assembly in the designated Series C mounting position and secure it according to the manufacturer’s instructions.
• Fieldbus wiring: Verify H1 terminal assignments and segment polarity against the applicable wiring diagram. Keep fieldbus wiring separate from power and high-noise conductors.
• Shielding and grounding: Apply the grounding and shield termination method specified by Honeywell for the installation. Avoid unapproved shield connections that could introduce ground loops.
• Fuse inspection: Check the F1 fuse type and rating against the manufacturer’s documentation. Isolate power before replacing the fuse.
• Redundancy verification: Confirm the intended redundant or non-redundant topology before connecting the interface modules.
• Commissioning: Check the eight H1 link status indicators and verify network communication through the control system configuration tools.
• Hazardous locations: Confirm that the complete installed assembly, associated field devices, and wiring method meet the applicable area classification and certification requirements.
