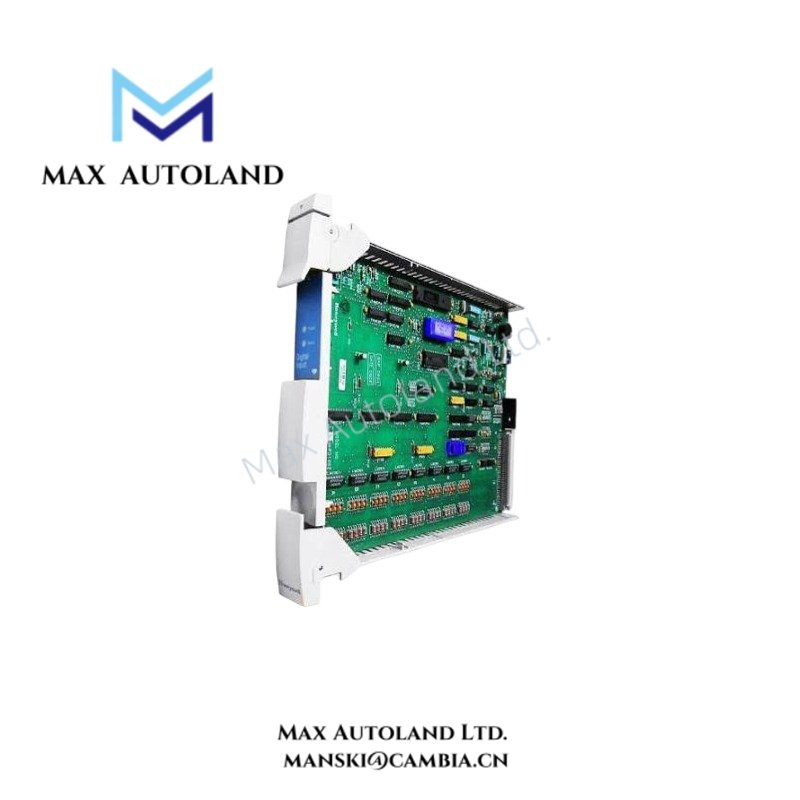

Overview
Configured for digital output signal execution in Honeywell process control systems, the Honeywell MC-PDOY22 80363975-150 (MC-PDOY22 Digital Output Relay Module) provides direct electrical output switching through its specified output circuitry. The supplied identification also states compatibility with MU/MC-PDOY22 IOP arrangements and describes 16-point, 125-240 VAC relay output application data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PDOY22 80363975-150 |
| Base Model | MC-PDOY22 |
| Brand | Honeywell |
| Product Type | Digital Output Relay Module |
| Product Parameters | Digital Output Relay |
| Compatible IOP | MU/MC-PDOY22 |
| Stated Point Configuration | 16 point |
| Stated Application Voltage | 125-240 VAC |
| Output Channels | 32 |
| Output Type | Open-collector |
| Load Voltage Range | 15-30 VDC |
| On-State Voltage | 0.5 V maximum at 0.5 A load current |
| Off-State Voltage | 30 VDC maximum |
| Off-State Leak Current | 0.5 A maximum |
| Turn-On Time | 200 msec maximum |
| Turn-Off Time | 200 msec maximum |
| Tariff Code | 8537101190 |
| Origin | USA |
| Weight | 0.58 kg |
| Dimensions | 32 x 27.9 x 2.9 cm estimated shipping size |
| Manufacturer | Honeywell |
Process Control I/O Signal Integration
Honeywell process control architectures use dedicated I/O hardware to transfer controller output states to field-side electrical circuits. Accordingly, the MC-PDOY22 output characteristics must be matched to the connected IOP arrangement and field load requirements.
The supplied data identifies both relay-output application information and open-collector electrical specifications. Therefore, the exact installed configuration, terminal arrangement, and field interface documentation should be verified before wiring or replacement. Channel-to-channel isolation characteristics are not specified in the supplied technical data and should not be assumed.
Frequently Asked Questions (FAQ)
Q: Can the MC-PDOY22 80363975-150 be connected directly to any field load?
A: No. The connected load must match the output circuit characteristics and voltage limits specified for the installed hardware configuration. Verify the applicable Honeywell IOP and field termination documentation before energizing the circuit.
Q: Is the operating temperature specified for this module?
A: No. The supplied data does not define an operating temperature range. Installation conditions should therefore follow the environmental limits specified for the associated Honeywell cabinet and control system documentation.
Q: Does the supplied data confirm hot-swap capability?
A: No. Hot-swap operation is not specified in the supplied information. Do not remove or insert the module under power unless the applicable Honeywell system documentation explicitly permits that procedure.
Field Installation Guidelines
- Confirm that MC-PDOY22 80363975-150 matches the required slot, IOP arrangement, and field termination hardware before installation.
- Isolate field power and verify the electrical state of connected circuits before connecting or disconnecting wiring.
- Keep output wiring separated from high-energy power conductors where practical to reduce conducted and induced interference.
- Terminate shielding according to the applicable Honeywell cabinet grounding practice and site grounding scheme.
- Verify load voltage, load current, and output circuit type before energizing the module.
- Inspect connectors and mating interfaces for contamination, mechanical damage, or bent contacts before insertion.
- After installation, perform controlled output-state testing and verify the corresponding field circuit response.
