Overview

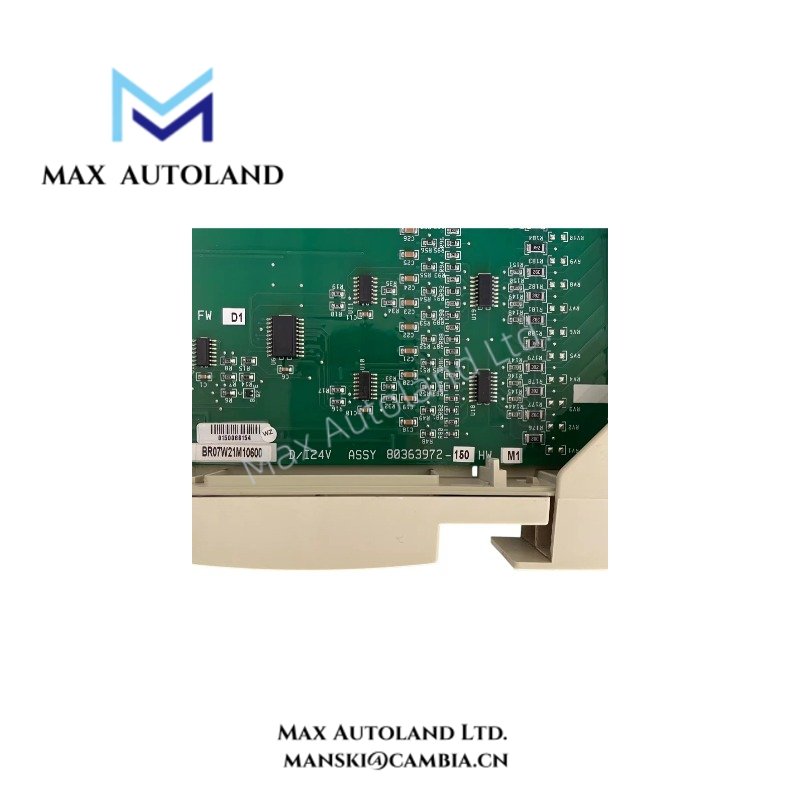

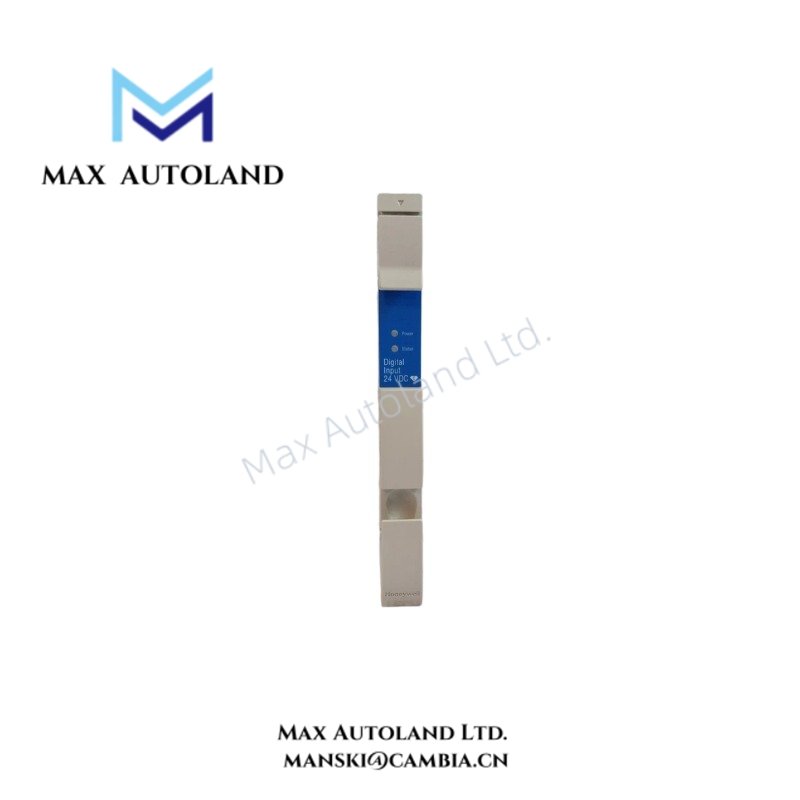

Configured for digital field signal acquisition in Honeywell industrial control systems, the Honeywell 80363972-150 / 80364451-100 (MC-PDIY22 Digital Input Module) provides direct electrical interfacing between discrete field devices and the control system. The module accepts digital input status signals from devices such as switches, pushbuttons, and sensors. It is associated with Honeywell DCS environments including TDC 3000 and Experion PKS applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PDIY22 |
| Full Part Numbers | 80363972-150 / 80364451-100 |
| Product Type | Digital Input Module / Digital Input Card |
| Assembly Description | DI IOP Assembly |
| Manufacturer | Honeywell |
| Brand | Honeywell |
| Associated PWA | 51307731-376 (typical variant) |
| Nominal Operating Voltage | 24 VDC |
| Input Function | Acquisition of discrete field device status signals |
| Supported Field Devices | Switches, pushbuttons, and compatible digital sensors |
| System Application | Honeywell industrial automation and DCS environments |
| Mounting | Rack or chassis mounted within Honeywell control cabinets |
| Operating Temp | Typically 0 to 60 deg C |
Digital Signal Interface Characteristics
The MC-PDIY22 interfaces discrete field signals with the Honeywell control architecture at a nominal 24 VDC operating level. Consequently, correct installation depends on maintaining proper field wiring segregation and cabinet grounding practices.
Honeywell process control architectures commonly separate field signal acquisition from internal controller processing through dedicated I/O hardware. Therefore, installers should verify the applicable channel wiring, field voltage reference, and cabinet grounding arrangement against the corresponding system drawings before energizing the module.
The provided data does not specify channel-to-channel isolation characteristics for this exact hardware variant. Accordingly, no isolation rating or channel separation value is assigned here.
Frequently Asked Questions (FAQ)
Q: What type of field signals does the Honeywell MC-PDIY22 process?
A: The MC-PDIY22 processes discrete digital status signals from compatible field devices, including switches, pushbuttons, and digital sensors.
Q: Can the MC-PDIY22 operate directly from a 24 VDC field environment?
A: The provided specification identifies a nominal operating voltage of 24 VDC. However, field wiring and voltage reference requirements should be verified against the applicable Honeywell cabinet and system documentation.
Q: Is hot-swapping supported for the MC-PDIY22?
A: The provided technical data does not define hot-swap capability. Therefore, installers should not assume that live insertion or removal is permitted without confirmation from the applicable Honeywell system documentation.
Field Installation Guidelines
- Isolate cabinet power before installing or removing the module unless the applicable system documentation explicitly permits energized replacement.
- Confirm that the installed rack or chassis position matches the configured Honeywell I/O hardware assignment.
- Route digital input wiring separately from high-current power conductors and switching circuits where practical.
- Maintain the specified cabinet grounding arrangement and terminate cable shields according to the applicable control system drawings.
- Verify 24 VDC polarity and field voltage reference before connecting external circuits.
- Inspect connectors and module interfaces for contamination, bent contacts, or mechanical damage before installation.
- After installation, perform channel-level signal verification through the configured Honeywell control system diagnostics.
