Overview

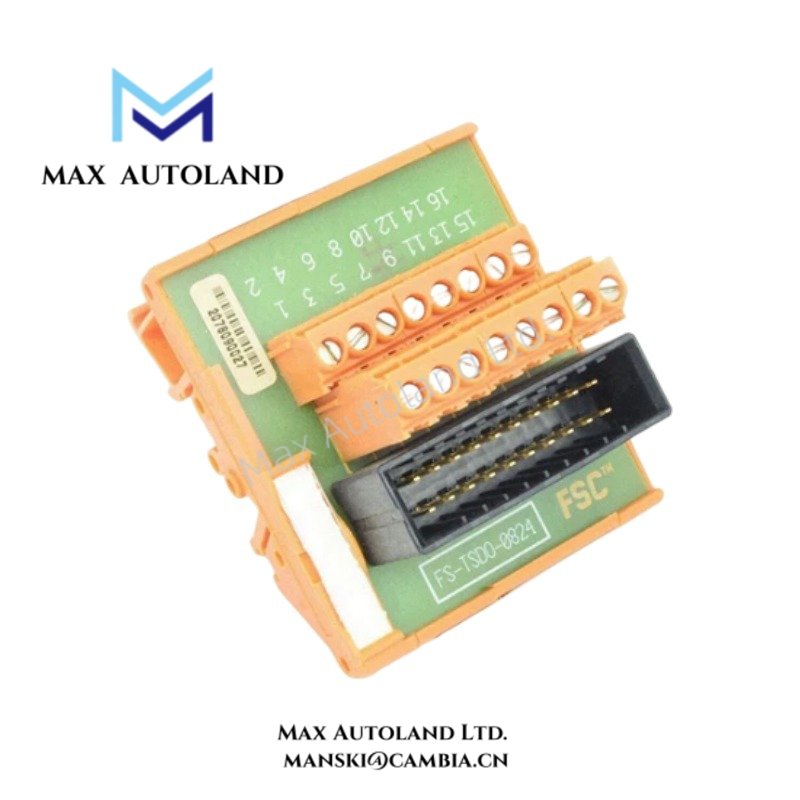

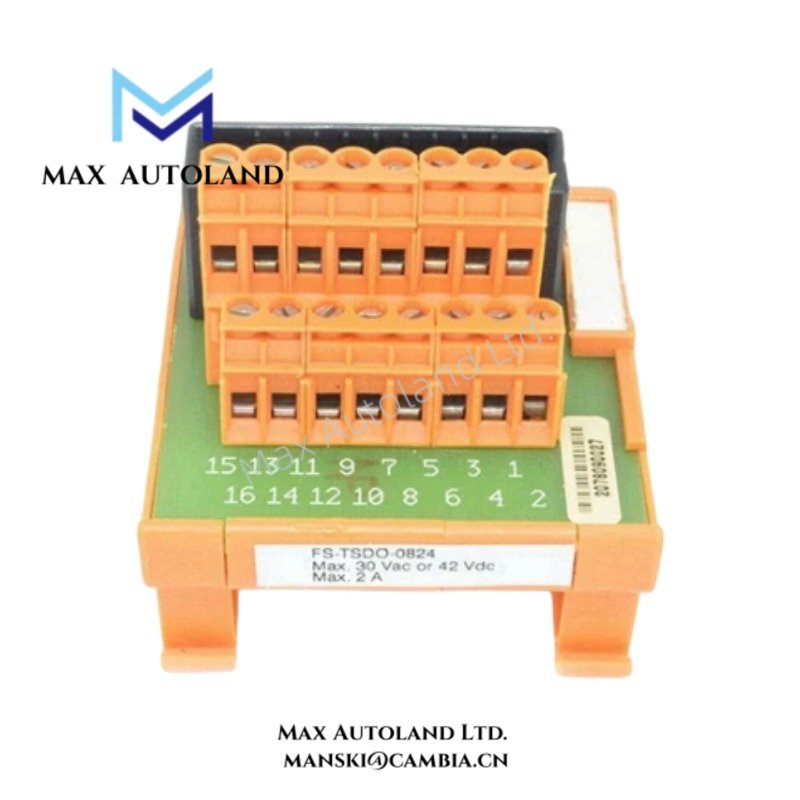

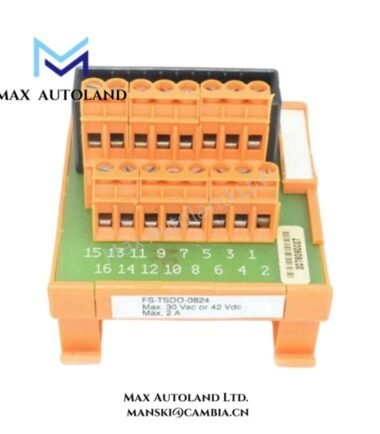

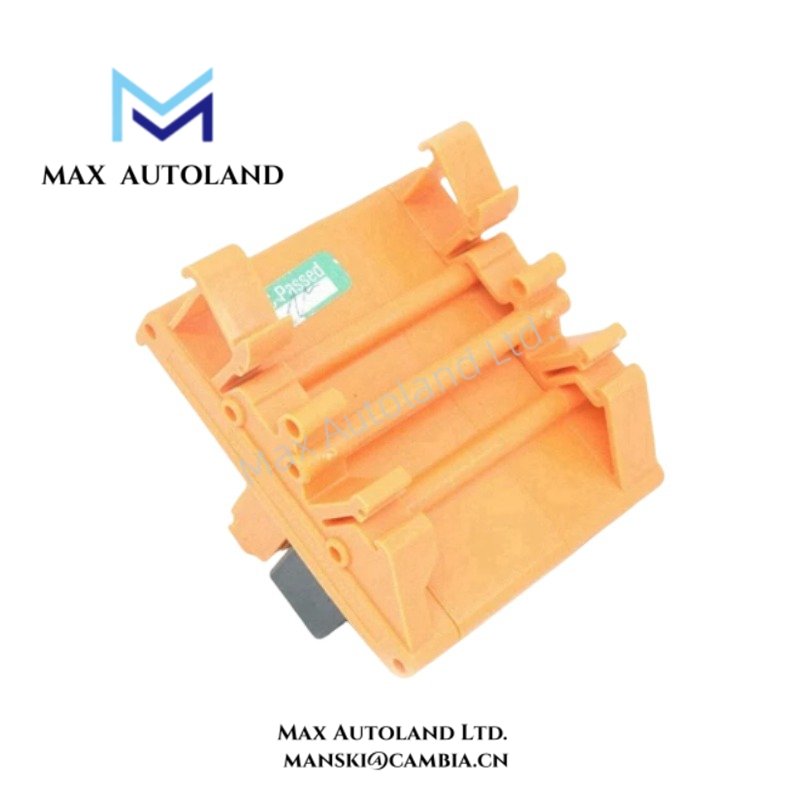

Configured for safe digital output termination at 24 VDC, the Honeywell FC-TSDO-0824C (FC-TSDO-0824C Safe Digital Output FTA) provides eight relay output channels for AK5/6 applications. The assembly accepts field wiring through its termination interface and supports channel switching within the stated electrical limits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-TSDO-0824C |
| Brand | Honeywell |
| Module Type | Safe Digital Output FTA |
| Application | AK5/6 applications |
| Origin | USA |
| Weight | 0.08 kg |
| Dimensions | 7 x 6 x 5.8 cm estimated shipping size |
| Number of Channels | 8 |
| Nominal Output Voltage | 24 VDC |
| Maximum Voltage | 36 VDC per IEC 1010 (1990) |
| Maximum Continuous Current per Channel | 1.5 A |
| Relay Rating | 2 A |
| AC Voltage Rating | 30 VAC |
| DC Voltage Rating | 42 VDC |
| Maximum Wire Diameter | 2.5 mm2 (AWG 14) |
| Approvals | CE, TUV, UL, CSA, FM |
Digital Output and Relay Characteristics
The FC-TSDO-0824C provides 8 digital output channels through a field termination assembly. Each channel uses a relay interface for AK5/6 applications. The supplied electrical data specifies a 2 A relay rating, 30 VAC rating, and 42 VDC rating.
The module also specifies a maximum continuous current of 1.5 A per channel and a maximum voltage of 36 VDC according to IEC 1010 (1990). Therefore, field circuit design should remain within the applicable rating that governs the connected load.
Frequently Asked Questions
Q: How many output channels does the FC-TSDO-0824C provide?
A: The FTA provides 8 digital output channels.
Q: What is the maximum continuous current per channel?
A: The specified maximum continuous current is 1.5 A per channel.
Q: What field wire size does the module accept?
A: The specified maximum wire diameter is 2.5 mm2, equivalent to AWG 14.
Field Installation Guidelines
- Verify the FC-TSDO-0824C model and terminal assignment before wiring.
- Keep field wiring within the specified maximum wire size of 2.5 mm2 (AWG 14).
- Confirm that the connected load remains within the applicable relay and channel current ratings.
- Separate digital output wiring from high-energy power conductors where practical to reduce electrical interference.
- Connect protective earth and cabinet grounding according to the control cabinet grounding design and applicable site standards.
- Check terminal tightness and conductor seating before energizing the field circuit.
- Verify output polarity and external circuit requirements against the system wiring documentation before commissioning.
