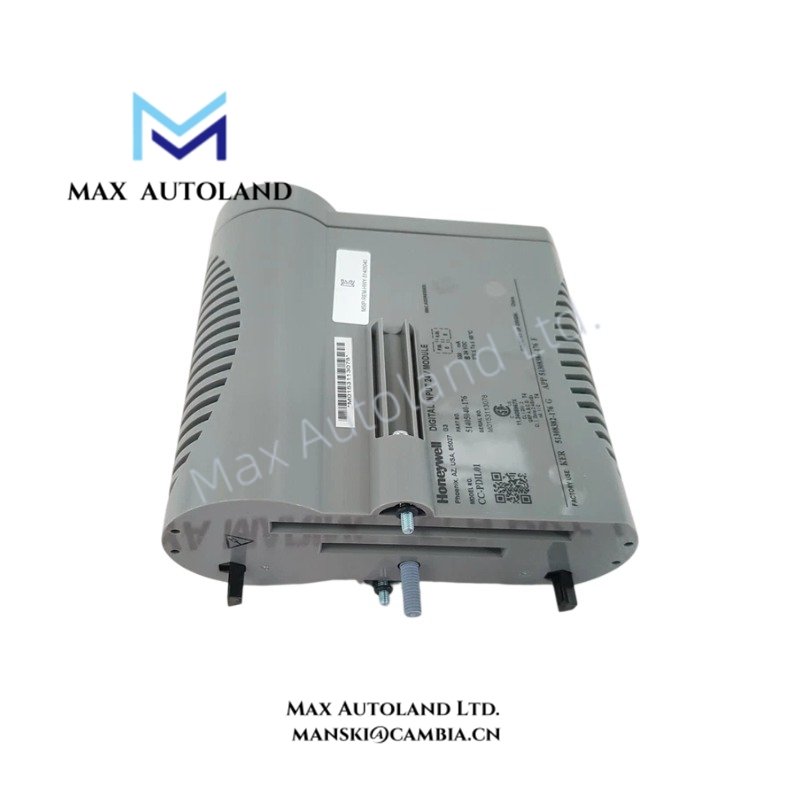

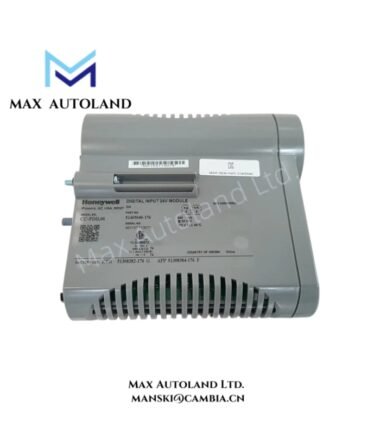

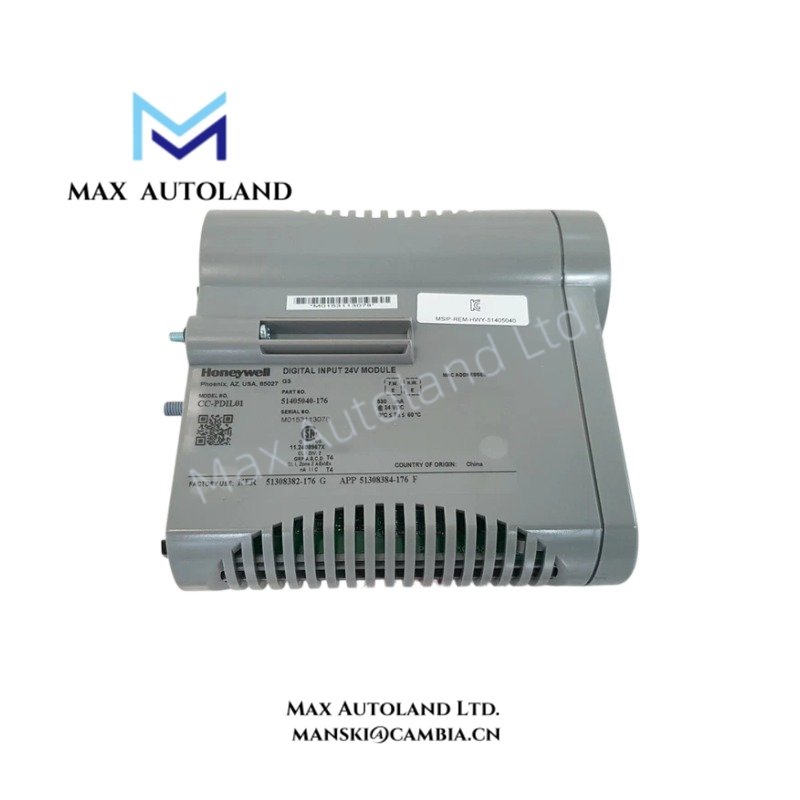

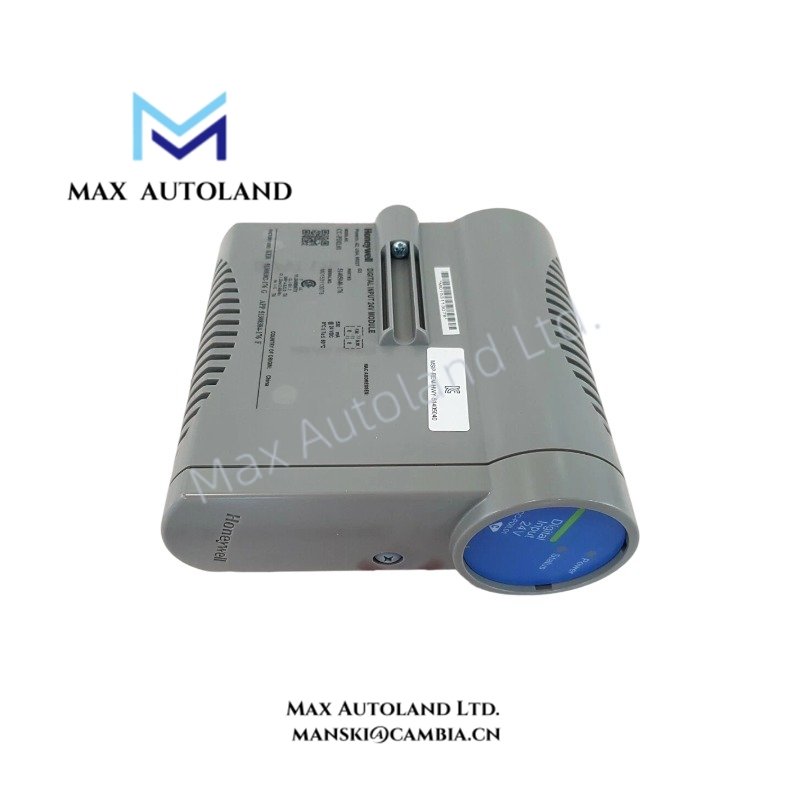

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-PDIL01 51405040-176 |
| Brand | Honeywell |
| Product Type | Digital Input Module |
| Series | Experion Series-C I/O |
| Input Channels | 32 |
| Input Signal Type | 24 VDC Digital Input |
| DI Power Voltage Range | 18 to 30 VDC |
| ON Sense Voltage / Current | 13 VDC min or 3 mA min |
| OFF Sense Voltage / Current | 5 VDC max or 1.2 mA max |
| Galvanic Isolation | 1500 VAC RMS or +/-1500 VDC |
| Isolation Technique | Optical isolation in IOM |
| Field Power Selection | Internal or external field power |
| Field Power Type | Non-incendive field power support |
| Redundancy Function | Optional redundancy through dual IOM installation on IOTA |
| Diagnostics | Internal diagnostics for data integrity |
| Open Wire Detection | Supported |
| Origin | USA |
| Weight | 0.35 kg |
| Dimensions | 6 x 15.2 x 14.3 cm |
| Tariff Code | 8537101190 |
DCS Process Signal Isolation and Channel Diagnostics
The Honeywell CC-PDIL01 51405040-176 provides 32 isolated digital input channels for 24 VDC field signals. The module uses optical isolation inside the IOM to separate field wiring from internal electronics.
Furthermore, the module performs internal channel diagnostics to maintain input data validity. When the system detects an open field wire condition, the corresponding process value receives an invalid status indication. Therefore, the controller can prevent control execution based on incorrect input states.
The module also supports channel-to-channel isolation through its galvanic isolation design. This structure reduces interference from field wiring conditions and improves signal separation within the Experion Series-C I/O architecture.
Frequently Asked Questions
Q: Does the Honeywell CC-PDIL01 51405040-176 support redundant operation?
A: Yes. The module supports optional redundancy by installing a second IOM on the same IOTA. The configuration does not require external redundancy control devices or additional cabling.
Q: What type of input signals does the CC-PDIL01 accept?
A: The module accepts 24 VDC discrete input signals with an operating DI power voltage range of 18 to 30 VDC.
Q: How does the module handle field wiring faults?
A: The CC-PDIL01 detects open wire conditions and marks affected process values as invalid through internal diagnostic functions.
Field Installation Guidelines
- Install the module within the designated Honeywell Experion Series-C I/O rack and compatible IOTA assembly.
- Verify field wiring polarity before applying 24 VDC input power.
- Separate digital input wiring from high-current power cables to reduce electrical noise coupling.
- Use proper shielding and grounding practices according to the plant electrical installation standard.
- Confirm that field devices operate within the specified input voltage and current sensing limits.
- When using redundant configuration, install the second IOM according to the IOTA redundancy configuration requirements.
- Check diagnostic status after installation to verify open wire monitoring and input channel operation.
