Overview

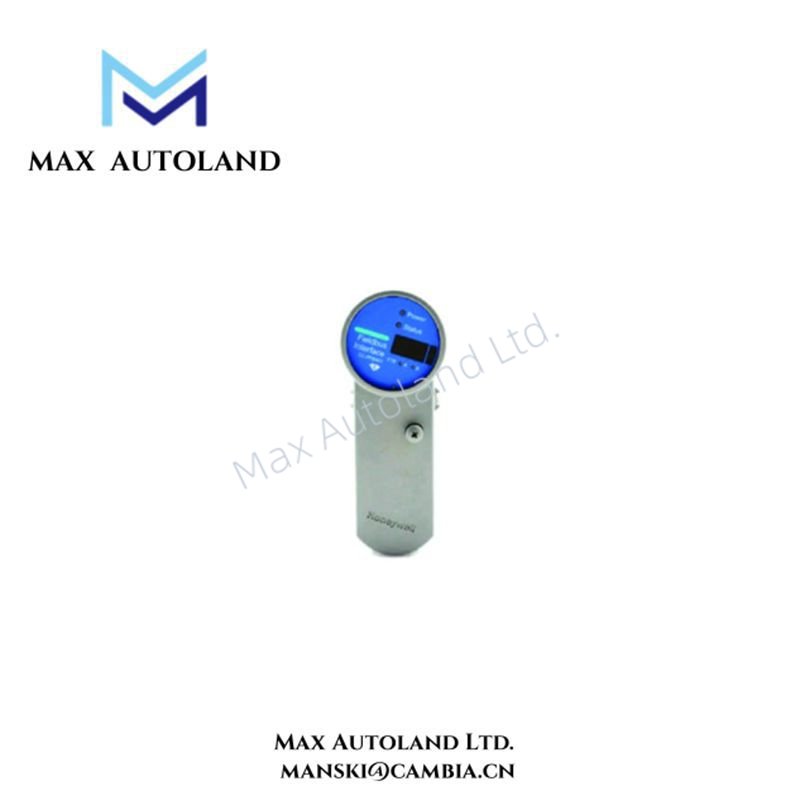

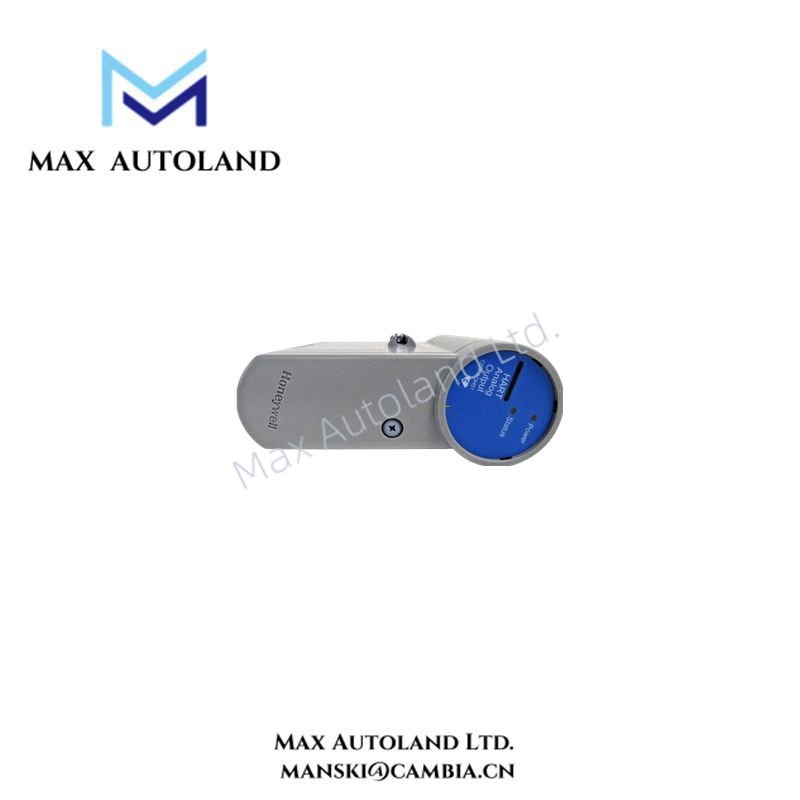

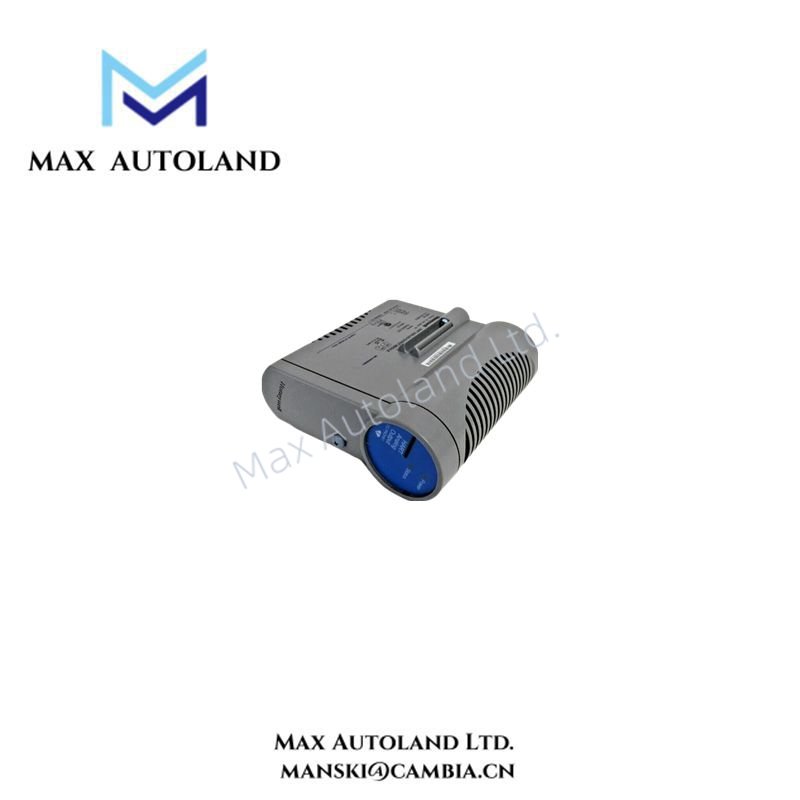

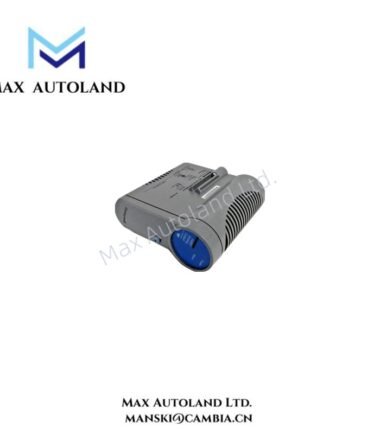

The CC-PAOH51 is a robust analog output module from Honeywell’s Experion Series C. It delivers 16 channels of high-level 4–20 mA output with integrated HART communication. Its design supports FAILOPT safe-state behavior and open-wire detection to ensure reliability in industrial automation.
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices. This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.
Specification
| Parameter | Specification | ||
| Input/Output Model | CC-PAOH51-High-Level Analog Output with HART | ||
| IOTA Models | CC-TAOX51 | Non-Redundant | 6″ |
| CC-TAOX61 | Redundant | 12” | |
| Output Type | 4-20 mA | ||
| Output Channels | 16 | ||
| Output Ripple | <100 mV peak-to-peak at power line frequency,across 250 Ω load | ||
| Output Temperature Drift | 0.005%of Full Scae/C | ||
| Output Readback Accuracy | ±4%of Full Scale | ||
| Output Current Linearity | ±0.05%of Full Scale nominal | ||
| Resolution | ±0.05%of Full Scale | ||
| Calibrated Accuracy | ±0.35%of Full Scale (25°℃)including linearity | ||
| Directly Settable Output Current Range | 0mA,2.9 mA to 21.1 mA | ||
| Maximum Resistive Load (24 Vsupply=22 VDC through 28 VDC) | 800 ohms | ||
| Maximum Output Compliant Voltage (24 Vsupply=22 VDC through 28 VDC) | 16V | ||
| Maximum Open Circuit Voltage | 22V | ||
