Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

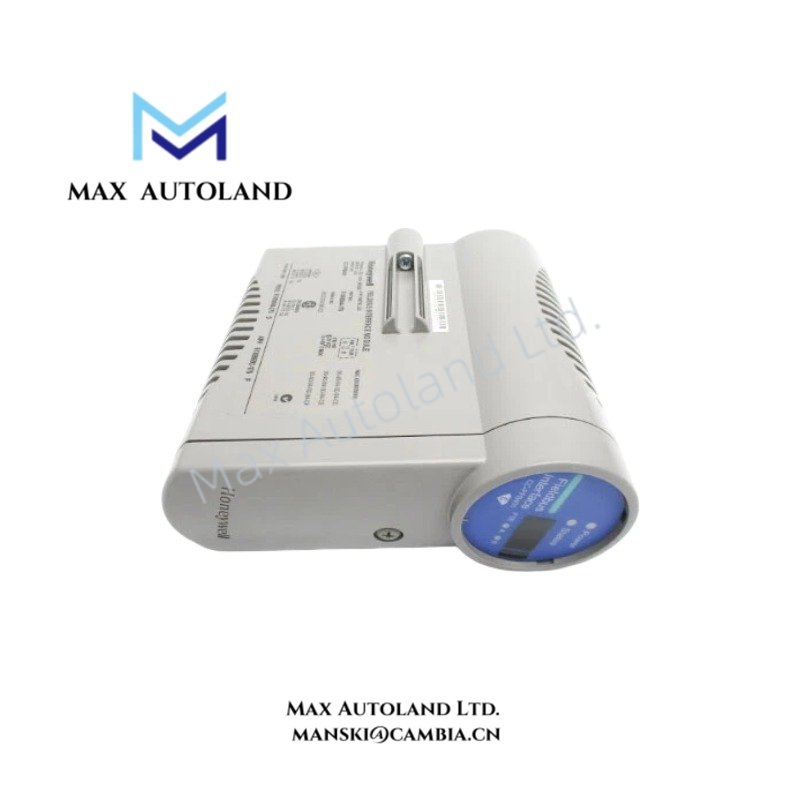

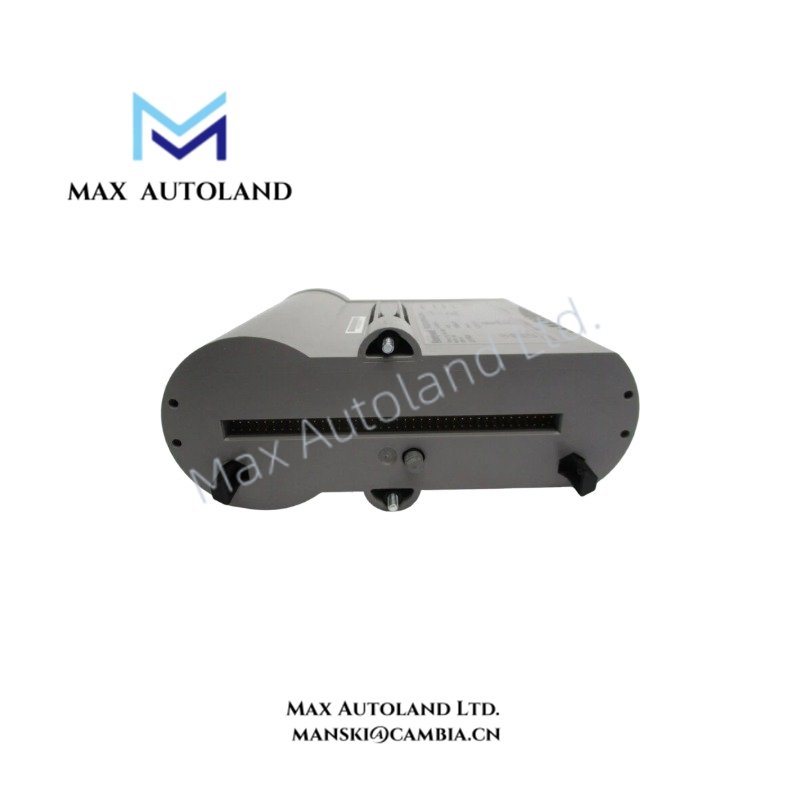

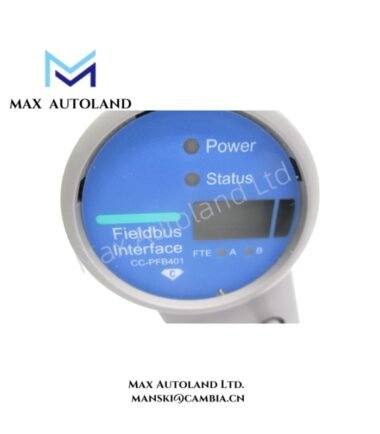

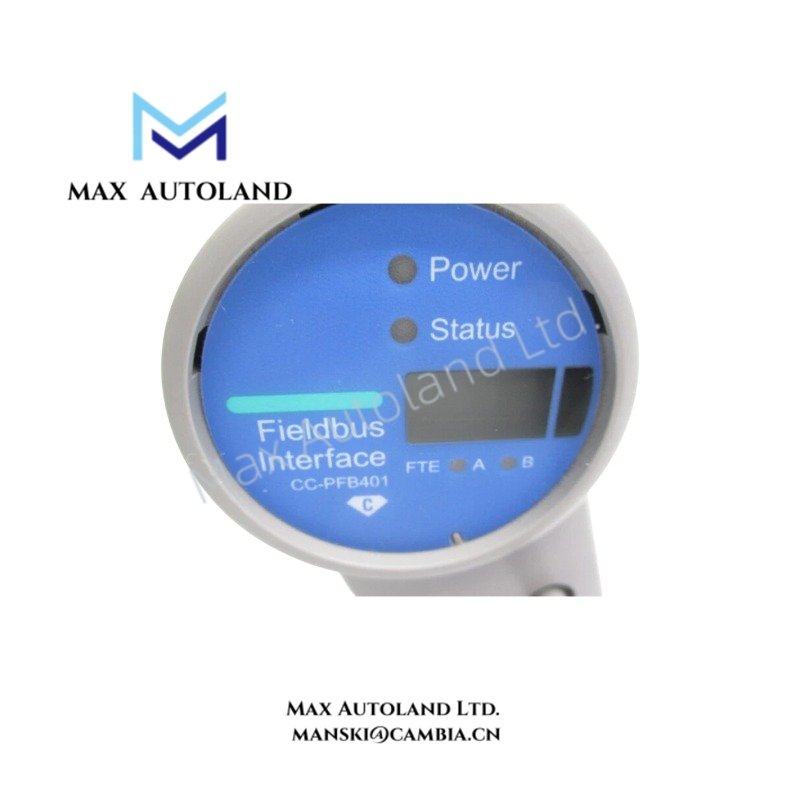

| Model | CC-PFB401 51405044-175 |
| Brand | Honeywell |
| Product Type | Fieldbus Interface Module |
| Origin | USA |
| Weight | 0.44 kg |
| Dimensions | 6.1 x 16.2 x 14.6 cm estimated shipping size |
| Power Consumption | 24 VDC, 210 mA |
| Fieldbus Interface | 4 Link Interface |
| Module Status | Discontinued by manufacturer |
| Tariff Code | 8537101190 |
| Shipment Location | Xiamen, China |
FOUNDATION Fieldbus Connectivity and DCS Communication
The CC-PFB401 module provides four fieldbus link connections for process control communication. It operates with a 24 VDC power supply and consumes 210 mA during operation. The module manages fieldbus signal exchange between connected field devices and Honeywell control system infrastructure.
Furthermore, the module design supports FOUNDATION Fieldbus communication requirements, where proper segment wiring, shield termination, and grounding practices maintain signal integrity. The interface architecture separates field communication functions from higher-level controller execution tasks.
Frequently Asked Questions
Q: What is the primary function of the Honeywell CC-PFB401 module?
A: The CC-PFB401 is a Fieldbus Interface Module that provides four fieldbus link interfaces for communication between field devices and Honeywell control system networks.
Q: What power supply does the CC-PFB401 require?
A: The module requires a 24 VDC power source and has a specified current consumption of 210 mA.
Q: Can the CC-PFB401 be used as a replacement for active manufacturer-supported modules?
A: The CC-PFB401 51405044-175 is discontinued by the manufacturer. Compatibility should be verified against the installed Honeywell system configuration before replacement.
Field Installation Guidelines
Install the CC-PFB401 module according to the applicable Honeywell control system hardware documentation.
Verify that the module rack or carrier provides the correct mechanical mounting interface before installation. Connect fieldbus wiring with proper polarity and maintain cable separation from high-voltage power conductors.
Use shielded fieldbus cable practices and connect cable shields according to site grounding standards. Avoid unnecessary cable loops and maintain clean termination points to reduce communication interference.
Before applying 24 VDC power, confirm supply polarity, wiring integrity, and module seating condition. After installation, check fieldbus communication status through the host control system diagnostics.
