Overview

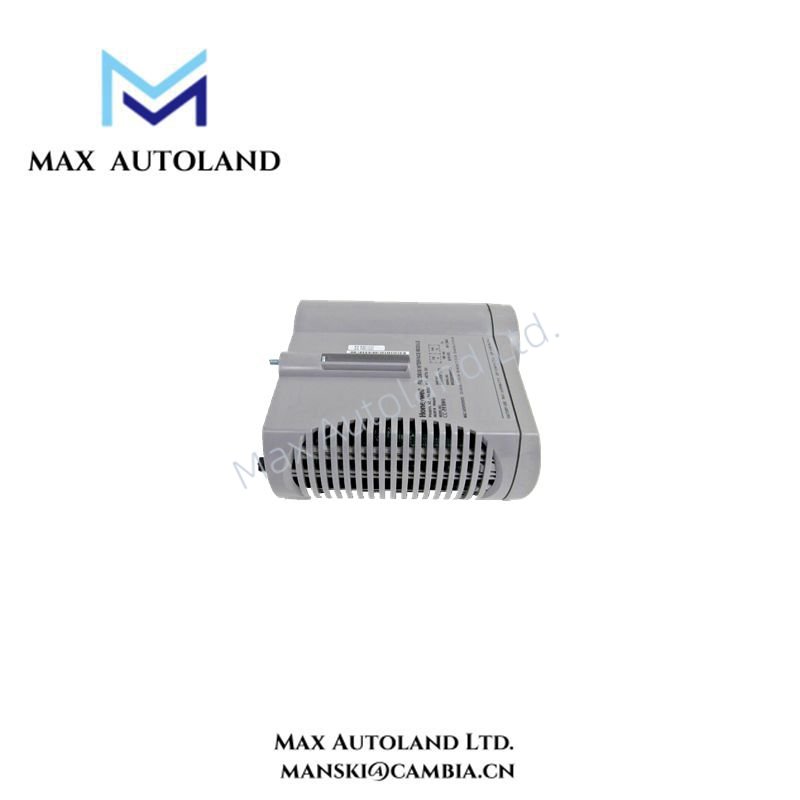

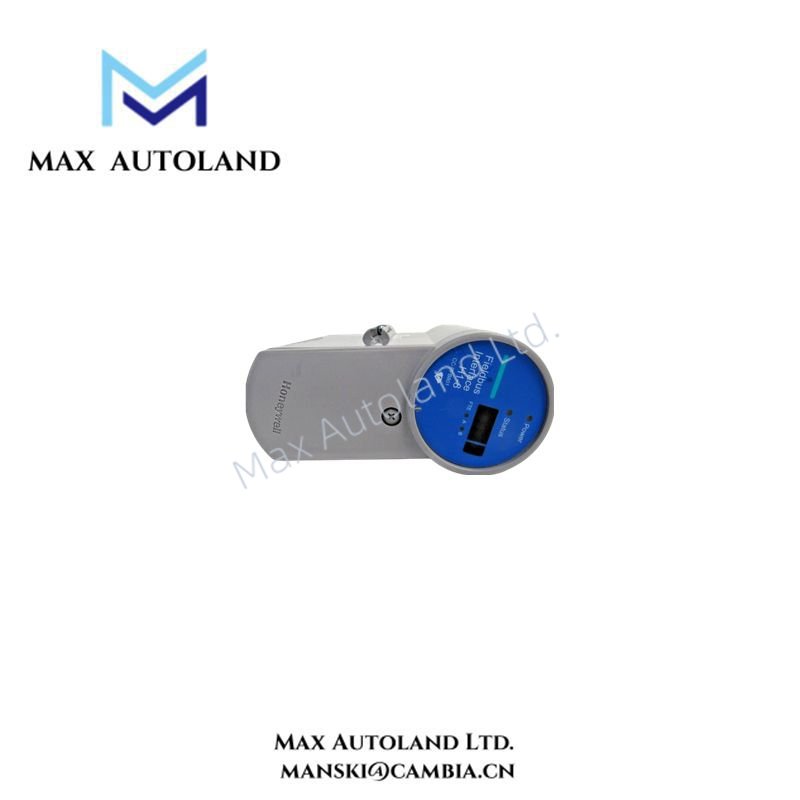

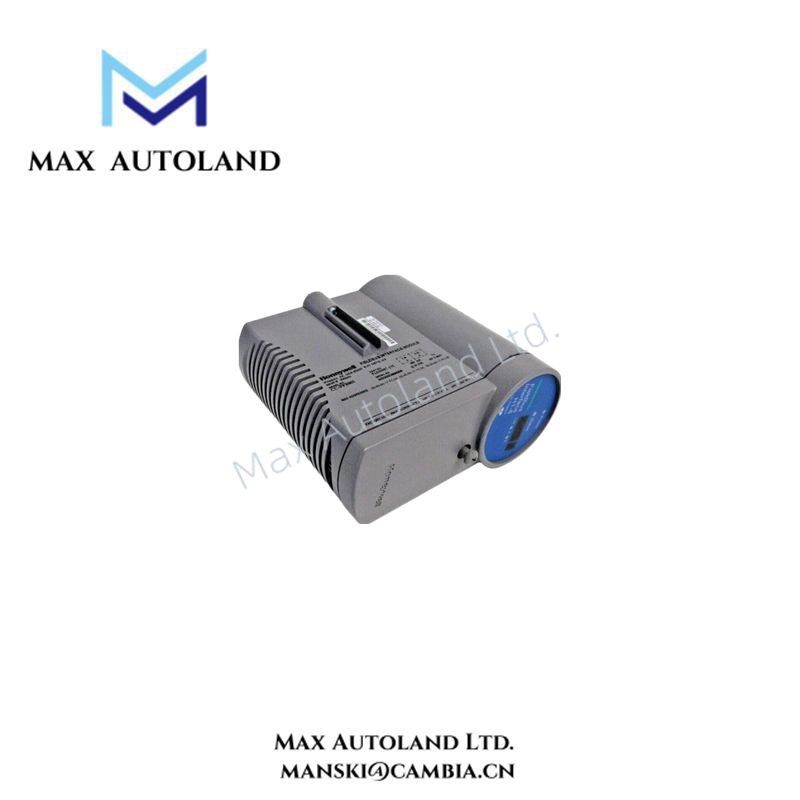

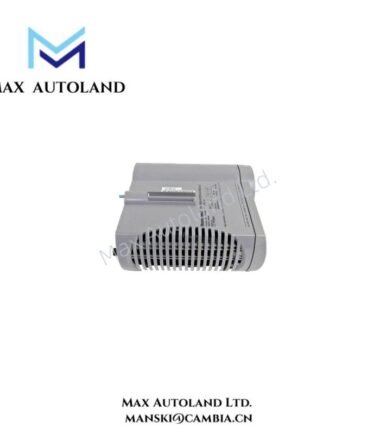

The Honeywell CC-PFB801 Fieldbus Interface Module (FIM8) is engineered to connect up to eight H1 FOUNDATION™ Fieldbus networks to the Experion PKS C300 controller. This module facilitates efficient communication between field devices and the control system, ensuring reliable data exchange and process control.
Redundant Fieldbus Power IOTAs are available for the Series C FIM from from MTL and P+F. MTL-Relcom has two products available, both featuring galvanic isolation between the segment and the input power supplies. The F660A Redundant Fieldbus Power IOTA provides redundant power for four (4) H1 Fieldbus links, using two plug-in power modules per link. The F860 Redundant Fieldbus Power IOTA provides redundant, isolated
conditioned power for eight (8) H1 links, servicing two (2) redundant or non-redundant Series C FIM IOTAs.
Specification
| Feature | Specification |
|---|
| Model Number | CC-PFB801 (Conformally Coated) |
| Module Type | Series C Fieldbus Interface Module (FIM8) |
| Number of H1 Networks | 8 (Each supporting up to 16 devices) |
| Communication Speed | 31.25 kbps per H1 network |
| Power Supply | 24 VDC |
| Power Consumption | 30 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0 to 95% RH (non-condensing) |
| Dimensions | 120 x 80 x 40 mm |
| Weight | 640 g |
| Indicators | Power, Module & FTE Status LEDs; Front display panel with module and link state information |
| Configuration Options | Non-redundant or Redundant (side-by-side) |
| Compliance | IEC 61158 and PROFIBUS PA standards |
