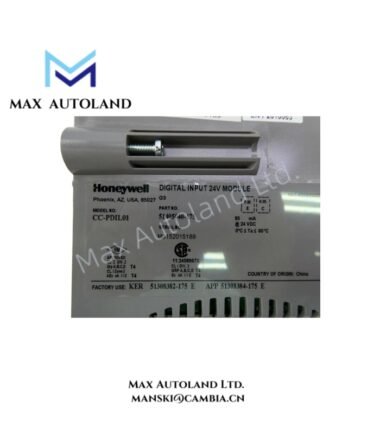

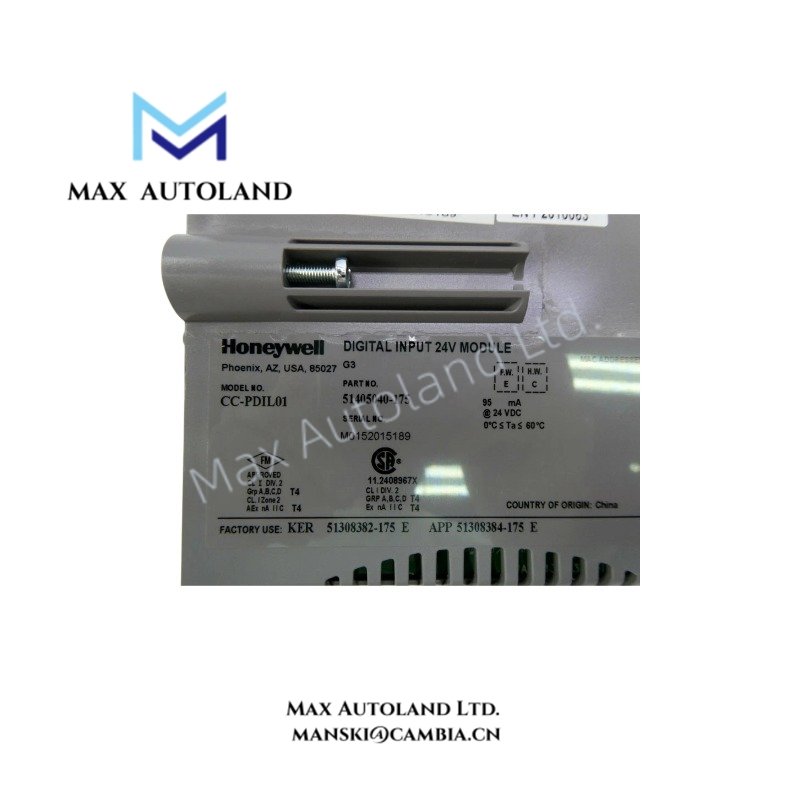

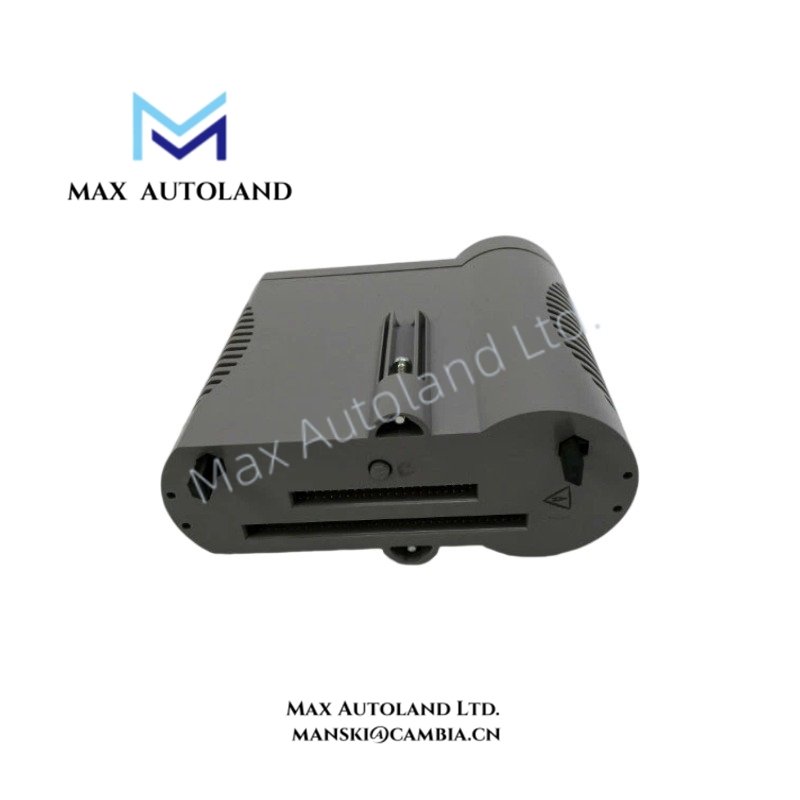

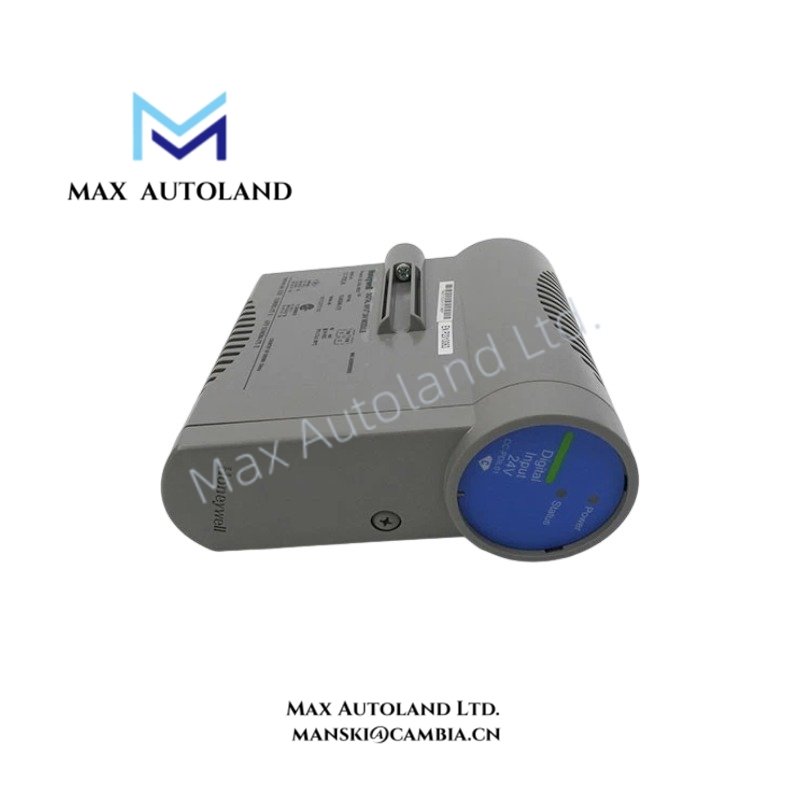

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-PDIL01 51405040-175 |
| Brand | Honeywell |
| Product Type | Digital Input Module 24 VDC |
| System Platform | Honeywell Experion Series-C I/O |
| Origin | USA |
| Shipment Location | Xiamen, China |
| Weight | 0.35 kg |
| Dimensions | 6 x 15.2 x 14.3 cm |
| Input Channels | 32 |
| Input Signal Type | 24 VDC Digital Input |
| DI Power Voltage Range | 18 to 30 VDC |
| ON Sense Voltage / Current | 13 VDC min or 3 mA min |
| OFF Sense Voltage / Current | 5 VDC max or 1.2 mA max |
| Galvanic Isolation | 1500 VAC RMS or +/-1500 VDC |
| Isolation Technique | Optical isolation in IOM |
| Field Power Selection | Internal or external field power |
| Redundancy Support | Optional redundancy through IOTA configuration |
| Field Diagnostics | Internal diagnostics and open wire detection |
| Tariff Code | 8537101190 |
Process Control Signal Isolation and Diagnostics
The Honeywell CC-PDIL01 uses optical isolation within the I/O module to separate field input circuits from internal electronics. The module monitors 32 digital input channels and validates signal states through internal diagnostic functions.
Furthermore, the module detects open field wire conditions and assigns an invalid status to affected process values. This prevents control logic from processing incorrect input states caused by wiring faults.
The module supports internal or external field power selection. In addition, the CC-PDIL01 provides onboard excitation power, eliminating the requirement for external marshalling power in supported configurations.
For Honeywell process control architectures, the module integrates with discrete field devices while maintaining channel-level signal separation and diagnostic visibility.
4-20 mA HART and DCS Signal Integration Considerations
Although the CC-PDIL01 is designed for discrete 24 VDC input signals rather than analog measurement loops, it follows Honeywell Series-C I/O design practices that emphasize channel isolation, field signal validation, and distributed process control integration.
The optical isolation design supports separation between field wiring and controller-side electronics. Therefore, the module reduces the influence of external electrical disturbances on input status evaluation.
Frequently Asked Questions
Q: How many digital input channels does the Honeywell CC-PDIL01 provide?
A: The CC-PDIL01 provides 32 digital input channels for 24 VDC discrete signal acquisition.
Q: Does the CC-PDIL01 support redundant operation?
A: Yes. The CC-PDIL01 supports optional redundancy by adding a second I/O module on the IOTA without external redundancy control devices or additional cabling.
Q: How does the module detect field wiring faults?
A: The CC-PDIL01 performs open wire detection and reports affected channel process values as invalid when wiring conditions do not meet diagnostic requirements.
Field Installation Guidelines
Install the Honeywell CC-PDIL01 according to the Experion Series-C I/O hardware installation requirements.
- Verify that field wiring voltage levels match the 18 to 30 VDC input range before connection.
- Separate digital input wiring from high-voltage power cables to reduce electrical interference.
- Connect field shields according to the cabinet grounding design and local installation standards.
- Confirm correct IOTA mounting and module seating before system commissioning.
- Check channel diagnostics after installation to verify signal integrity and open wire monitoring.
- Use approved field power arrangements when selecting internal or external excitation power modes.
