Overview

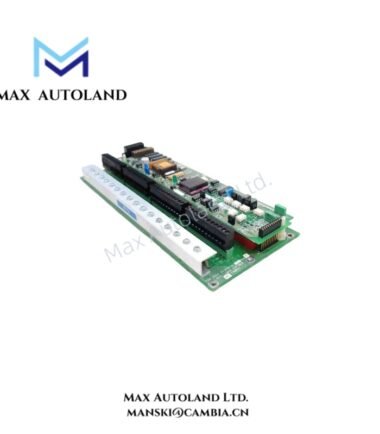

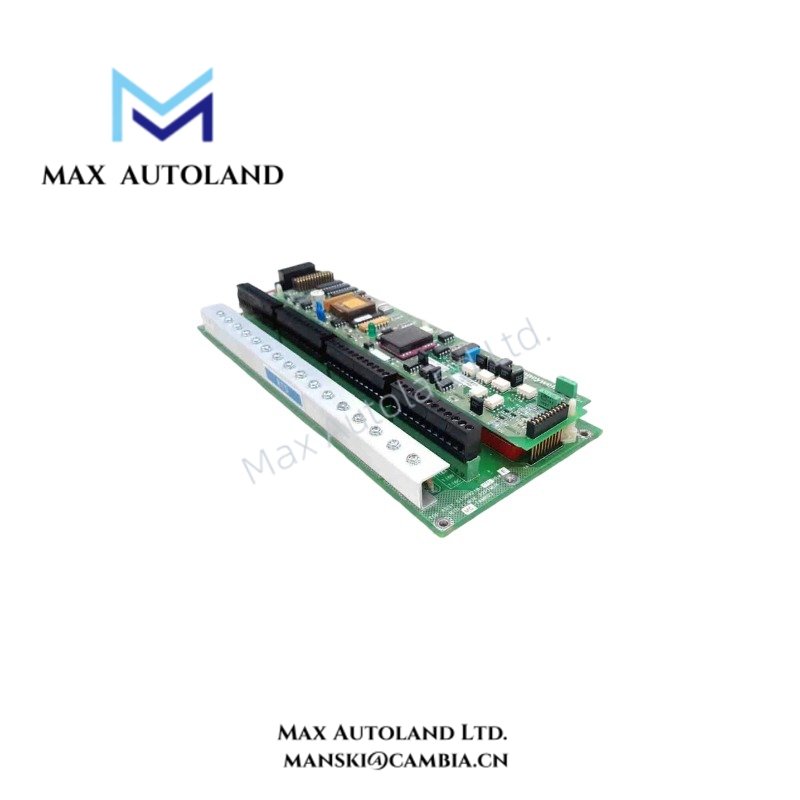

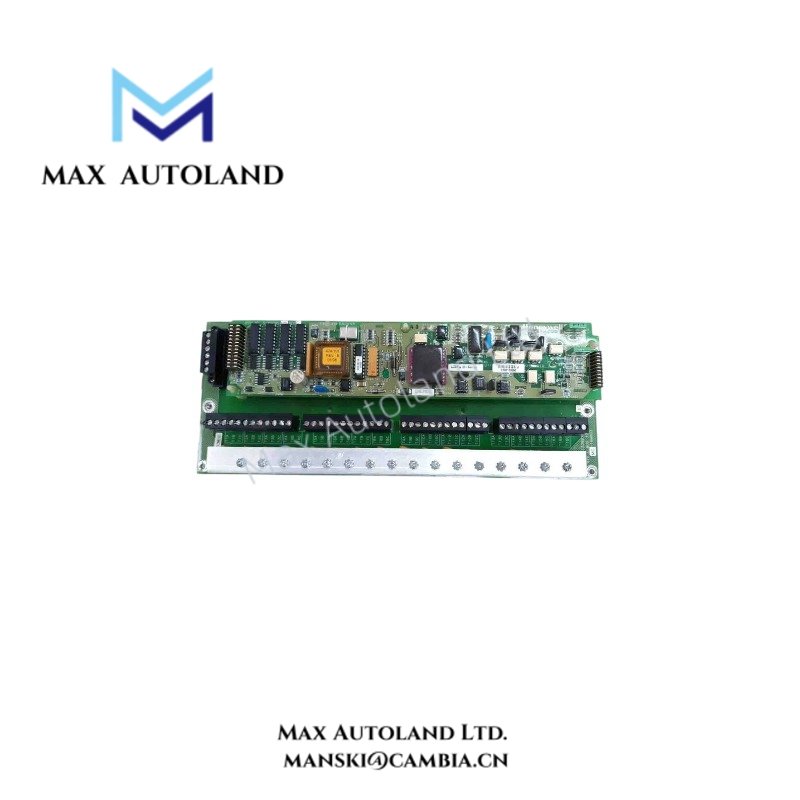

Configured for field signal termination and HART communication support in Honeywell DCS I/O architectures, the Honeywell 51309542-175 (MC-THA011 Field Termination Assembly) provides direct physical and electrical termination between compatible field wiring and control system I/O modules. The assembly supports organized field connections and HART-compatible instrument integration within Honeywell automation installations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51309542-175 / MC-THA011 |
| Brand | Honeywell |
| Product Type | Field Termination Assembly (FTA) |
| Product Function | Field signal termination and I/O interface connection |
| Communication Support | HART protocol support |
| Application | Industrial process control and field device integration |
| Compatibility | Designed for compatible Honeywell control system I/O cards |
| Mounting | DIN rail or panel mounting, depending on enclosure configuration |
| Core Performance Indicator | Supports field termination and HART-compatible signal communication |
4-20 mA HART Loop Interface Characteristics
The MC-THA011 assembly supports field-side termination for HART-compatible instrument circuits. In a compatible 4-20 mA HART loop, the analog process signal and superimposed digital communication signal share the same field wiring path.
Therefore, installation should preserve conductor continuity and avoid wiring arrangements that can attenuate or distort the HART communication component. Shield termination practices should also follow the applicable Honeywell system and site grounding requirements.
The FTA itself does not replace the associated I/O module. Instead, it provides the physical termination interface between field wiring and the compatible Honeywell control hardware.
Frequently Asked Questions
Q: Does the Honeywell 51309542-175 MC-THA011 operate as a standalone HART controller?
A: No. The assembly provides field termination and supports HART-compatible wiring integration with compatible Honeywell control system I/O hardware.
Q: Can the MC-THA011 connect directly to field instruments?
A: Field conductors can terminate at the assembly according to the applicable system wiring arrangement. The connected signal processing function remains dependent on the associated compatible I/O hardware.
Q: Does the provided data define hot-swap capability for the MC-THA011?
A: No hot-swap specification is provided. Personnel should isolate or manage affected circuits according to the applicable Honeywell maintenance procedure before installation or removal.
Field Installation Guidelines
Mount the Honeywell 51309542-175 MC-THA011 securely on the specified DIN rail or panel arrangement. Confirm mechanical retention before connecting field conductors.
Route analog and HART signal wiring separately from high-current switching circuits where practical. This reduces the possibility of electrical noise coupling into low-level field signal circuits.
Use shielded cable where required by the instrument loop specification. Apply shield grounding according to the site grounding philosophy and the applicable Honeywell installation documentation.
Verify terminal identification before energizing the connected I/O system. Incorrect field termination can produce incorrect process readings or communication faults.
Inspect conductor insulation, terminal torque, and cable strain relief during commissioning. Then verify the analog loop and HART communication path through the associated control system hardware.
