Overview

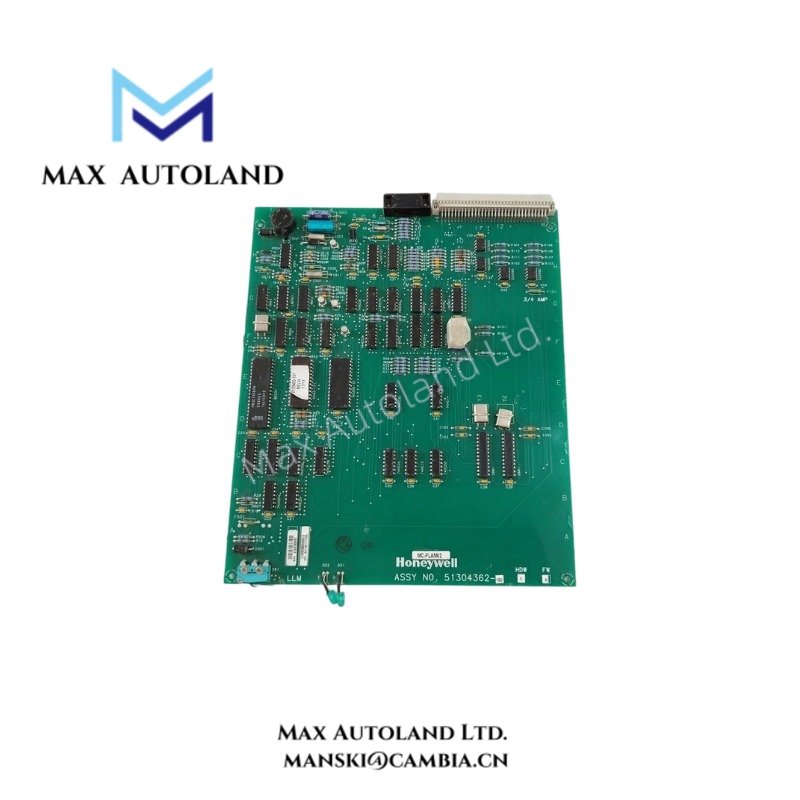

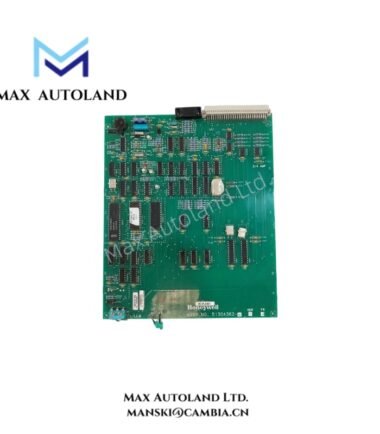

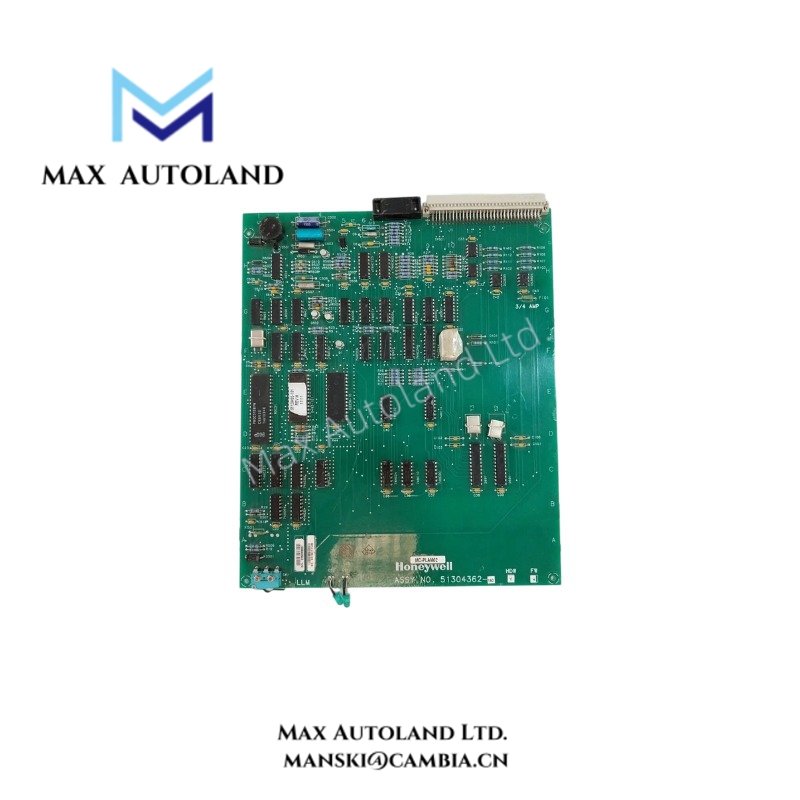

The Honeywell MC-PLAM02 51304362-150, also cataloged as the MC-PLAM02 Low Level Analog Multiplexer Processor, operates as a dedicated hardware component for scanning and multiplexing low-level analog input signals within Honeywell process control I/O architectures. It supports 32 input channels, an input scan rate of 32 samples per second, configurable 50 or 60 Hz line synchronization, and 2 Mohm minimum input impedance at 100 mV.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PLAM02 51304362-150 |
| Brand | Honeywell |
| Product Type | Low Level Analog Input Multiplexer Processor |
| Product Parameters | Processor, Low Level Analog MUX |
| Input Capacity | 32 inputs |
| IOP Type | Low Level Multiplexer (LLMux) |
| Assembly Type | LLMux IOP, conformally coated |
| Input Scan Rate | 32 samples per second |
| Input Impedance | 2 Mohm minimum at 100 mV |
| Crosstalk, DC to 60 Hz | 120 dB |
| Line Frequency Synchronization | Configurable to 50 or 60 Hz |
| Software Accuracy | +/-0.1 deg C typical; +/-0.5 deg C maximum at 23.5 +/-2 deg C |
| Operating Temp | Not specified in the provided technical data |
| Power Consumption | Not specified in the provided technical data |
| Weight | 0.6 kg |
| Dimensions | 3 x 31.8 x 28 cm estimated shipping size |
| Origin | USA |
| Manufacturer | Honeywell |
Low-Level Signal Processing and Channel Isolation
The Honeywell MC-PLAM02 51304362-150 is designed for low-level analog signal multiplexing, where input impedance and channel-to-channel signal separation directly affect measurement performance. The specified 120 dB crosstalk performance from DC to 60 Hz limits unwanted coupling between multiplexed input paths.
In addition, the configurable 50 or 60 Hz line-frequency synchronization allows the scan process to operate in coordination with the local power-frequency environment. The module therefore supports controlled sampling of low-level signals while maintaining a defined 32 samples-per-second scan rate.
The 2 Mohm minimum input impedance at 100 mV also reduces loading on connected low-level signal sources. For temperature-related applications, the stated software-only accuracy specification applies under the specified reference conditions. Cold junction compensation is not identified in the provided technical data and should not be assumed for this module.
Frequently Asked Questions
Q: How many analog inputs can the MC-PLAM02 51304362-150 process?
A: The module is specified as a 32-input Low Level Multiplexer processor and scans the inputs at 32 samples per second.
Q: Does the MC-PLAM02 51304362-150 support 50 Hz and 60 Hz installations?
A: Yes. Its line-frequency synchronization is configurable for either 50 Hz or 60 Hz operation.
Q: What is the specified input impedance of the module?
A: The input impedance is specified as 2 Mohm minimum at an input level of 100 mV.
Field Installation Guidelines
Install the Honeywell MC-PLAM02 51304362-150 only in the compatible Honeywell I/O hardware arrangement specified for the corresponding LLMux IOP assembly.
- Isolate system power before inserting or removing the module unless the applicable Honeywell system documentation explicitly permits energized replacement.
- Verify the module part number, slot assignment, and I/O configuration before installation.
- Route low-level analog signal wiring separately from high-current power conductors and switching output circuits.
- Use shielded signal cabling where required by the connected field circuit and ground cable shields according to the system grounding scheme.
- Avoid unnecessary parallel routing with AC power wiring to reduce induced noise.
- Confirm the configured line-frequency synchronization setting matches the applicable 50 Hz or 60 Hz installation.
- Inspect the connector interface and mounting position for contamination, bent contacts, or mechanical damage before energizing the system.
- Because the assembly is conformally coated, avoid unauthorized cleaning agents or mechanical abrasion that could damage the protective coating.
