Overview

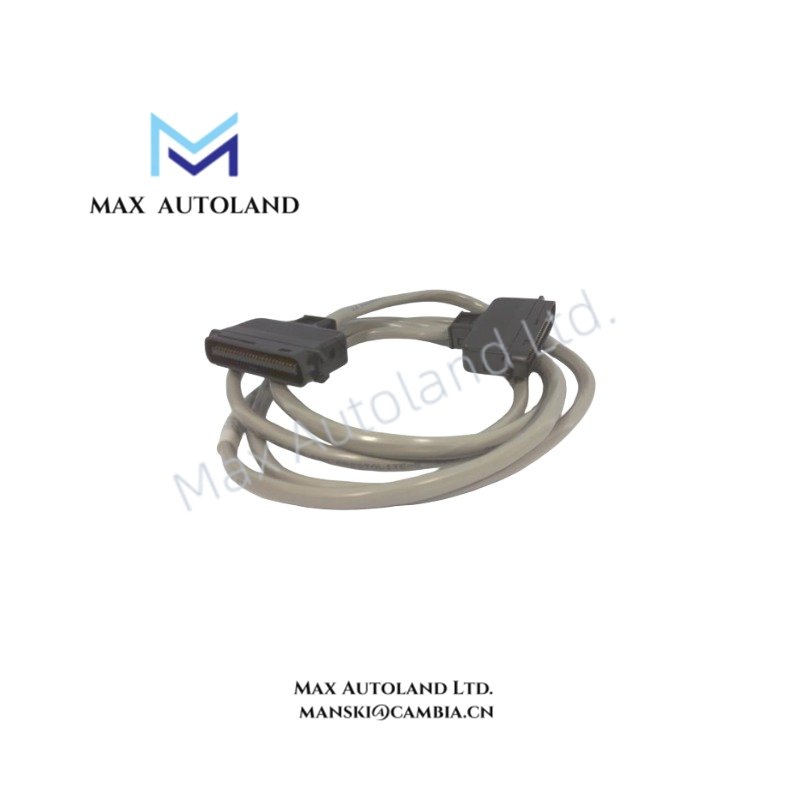

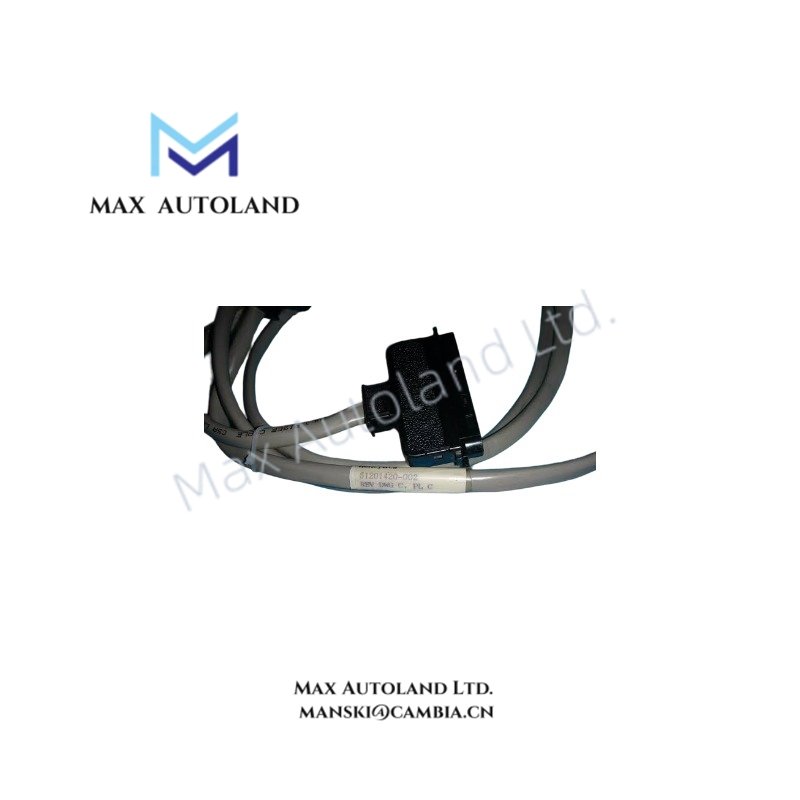

Configured for physical signal termination and I/O link conduction in Honeywell TDC 3000, TPS, and Experion PKS DCS environments, the Honeywell 51201420-002 (51201420 Field Termination Assembly / I/O Link Cable) provides direct electrical interconnection between control system hardware nodes and field termination assemblies.
The assembly is designed as a fixed-length interconnect element for cabinet-level signal routing within LCN / UCN based architectures, supporting structured I/O wiring topologies without active signal processing.
Suffix Breakdown & Model Matrix
No validated manufacturer-supplied decomposition data is available for internal suffix segmentation beyond standard length designation “-002” indicating 2 meter cable assembly variant.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51201420-002 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.45 kg (approx) |
| Operating Temp | -40 deg C to +85 deg C |
| Power Consumption | Passive component (no electrical load) |
| Product Type | Field Termination Assembly / I/O Link Cable |
| System Compatibility | TDC 3000, TPS, Experion PKS DCS |
| Cable Length | 2 m |
| Jacket Material | Flame-retardant industrial grade polymer |
| Shielding Type | Non-shielded / system dependent |
Honeywell Process Control Interconnection Characteristics
Within Honeywell DCS architectures, field termination assemblies and I/O link cables operate as passive signal transport layers between controller I/O subsystems and field termination points. In TDC 3000 and Experion PKS configurations, signal integrity is maintained through system-level 4-20 mA loop design practices and HART-compatible analog channel structures.
Signal conditioning, including channel-to-channel isolation and loop impedance control, is implemented at module and termination hardware level rather than within the cable assembly. In UCN/LCN topologies, deterministic I/O routing depends on fixed impedance paths and controlled grounding schemes across cabinet backplanes and termination units.
Frequently Asked Questions (FAQ)
Q: Does the 51201420-002 cable perform any signal conditioning or conversion?
A: No. It is a passive interconnect element and does not perform signal conversion, scaling, or isolation.
Q: Is the cable suitable for hot-swap operations in Experion PKS systems?
A: Cable assemblies are not hot-swappable components; insertion or removal must follow controller and I/O rack power-down procedures.
Q: Does shielding exist for EMI protection in this model?
A: The assembly is typically non-shielded or system-dependent; EMI mitigation is handled at cabinet grounding and I/O module design level.
Field Installation Guidelines
- Maintain separation from high-voltage power conductors to reduce induced noise coupling.
- Ensure correct routing within designated Honeywell cabinet cable channels to avoid mechanical strain.
- Verify connector seating integrity at both termination ends before system energization.
- Follow cabinet grounding architecture to maintain reference potential consistency across LCN / UCN segments.
- Avoid sharp bending radius below standard industrial cable handling limits to prevent conductor fatigue.
