Overview

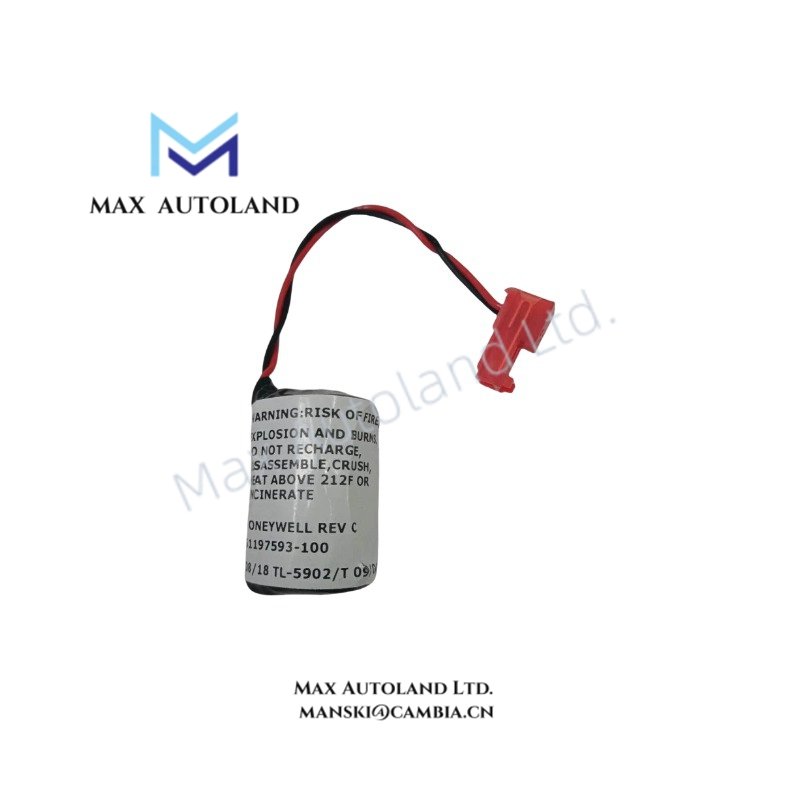

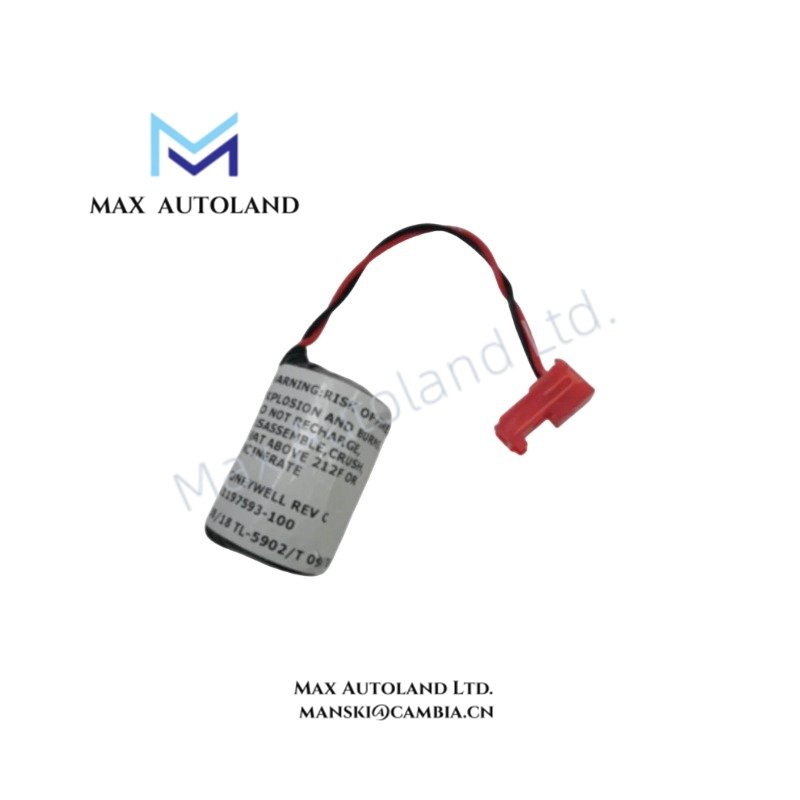

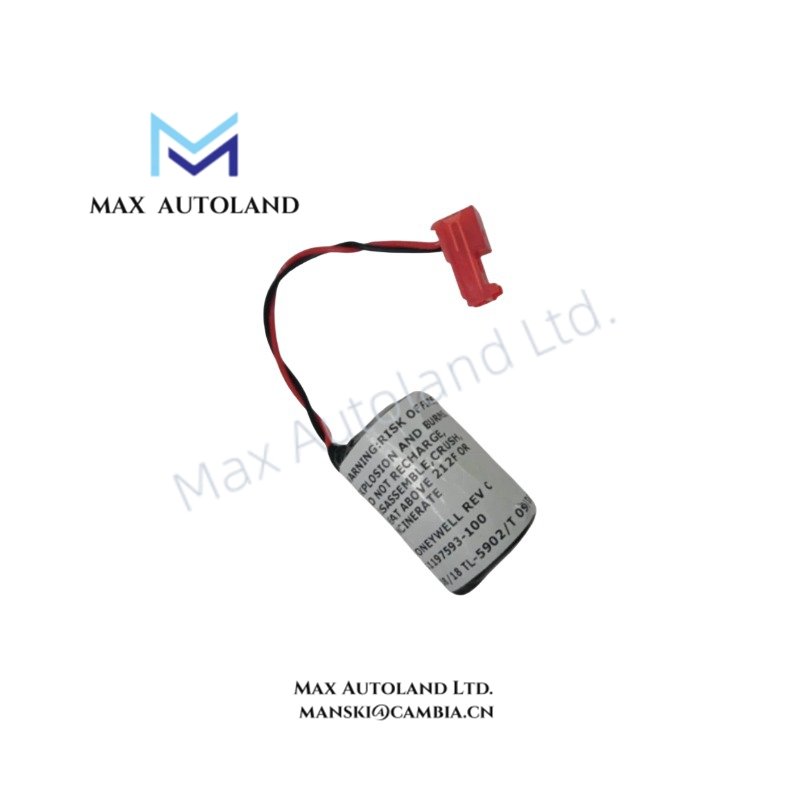

Configured for backup energy provisioning in industrial controller memory retention and real-time clock (RTC) circuits within Honeywell automation platforms, the Honeywell 51197593-100 (51197593100 Replacement Lithium Battery) provides direct physical/electrical execution of non-volatile power support functions across distributed control system (DCS) and PLC-based architectures. The module delivers 3.6 VDC lithium-based energy storage using manganese dioxide chemistry, intended to maintain volatile memory states and configuration registers during primary supply interruption. Operation is defined by sealed electrochemical discharge behavior with fixed-output characteristics and no recharge cycle support.
Suffix Breakdown & Model Matrix
No validated manufacturer-published suffix segmentation is defined for 51197593-100. The designation is treated as a single-orderable part number mapped to a replacement battery module assembly. No internal functional variant encoding is confirmed.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51197593-100 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | Not specified (industrial grade lithium chemistry, typical -40 deg C to +85 deg C in similar modules) |
| Power Consumption | Passive energy storage device |
| Nominal Voltage | 3.6 VDC |
| Capacity | 1200 mAh |
| Chemistry | Lithium Manganese Dioxide |
| Function | Memory / RTC backup power supply |
Process Control Memory Retention Characteristics (Honeywell DCS Context)
In Honeywell process automation architectures, backup battery modules interface indirectly with controller memory subsystems rather than field signal loops such as 4-20 mA HART or FOUNDATION Fieldbus. The battery element supports volatile RAM retention and clock oscillation continuity under main power loss conditions. Electrical isolation is inherent due to standalone electrochemical design, with no channel-to-channel signal interaction or fieldbus participation. Failure mode is characterized by gradual voltage decay below retention threshold, resulting in loss of stored configuration states upon depletion.
Frequently Asked Questions (FAQ)
Q: Does the 51197593-100 support hot-swap replacement under live controller operation?
A: Hot-swap capability is dependent on the host Honeywell controller backplane design. The battery itself is a passive module and does not impose electrical switching logic; removal under energized conditions may result in temporary memory instability depending on system buffering design.
Q: What is the expected behavior when battery voltage drops below threshold?
A: Below minimum retention voltage, SRAM and RTC backup domains lose stable supply, resulting in reset of volatile memory content. Non-volatile firmware remains unaffected.
Q: Is recharge or external charging supported?
A: The lithium manganese dioxide chemistry used in this module is non-rechargeable. External charging must not be applied.
Field Installation Guidelines
Ensure primary controller power is isolated before battery replacement unless system design explicitly supports live maintenance. Observe polarity alignment on battery connector interface. Avoid mechanical stress on PCB header pins during insertion. Maintain electrostatic discharge (ESD) precautions when handling exposed controller assemblies. Route cabling away from high-noise switching elements to prevent incidental thermal exposure, even though the battery module itself is not signal-sensitive. Verify secure seating to prevent intermittent contact during vibration exposure in cabinet-mounted installations.
