Overview

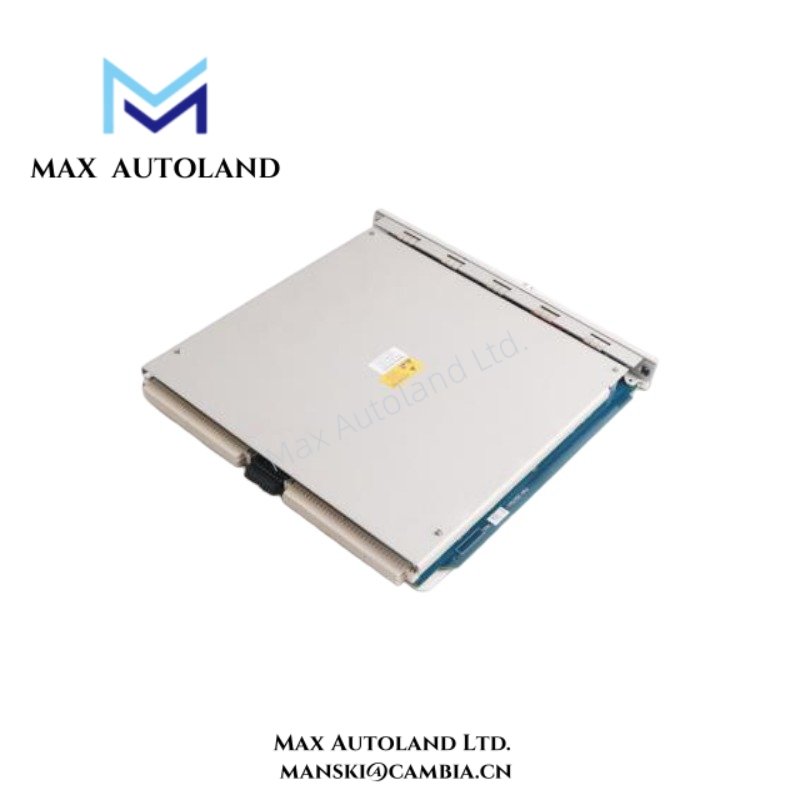

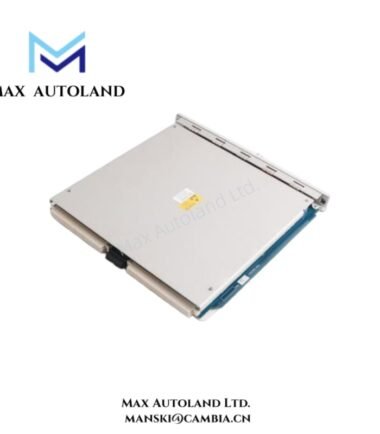

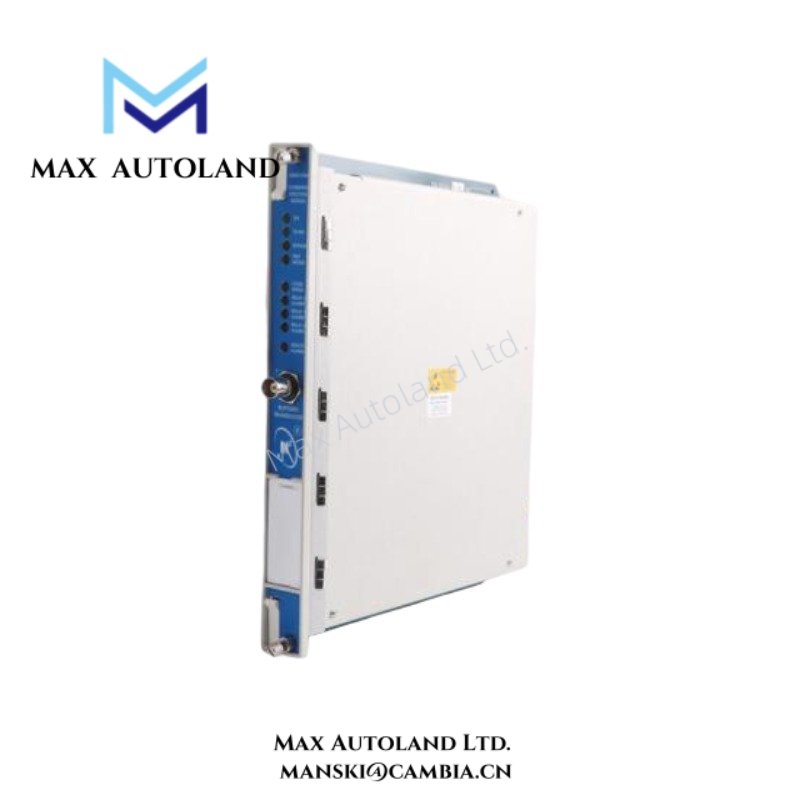

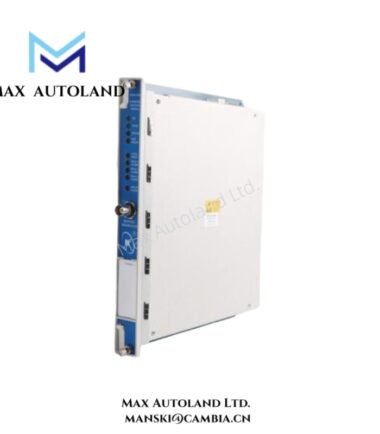

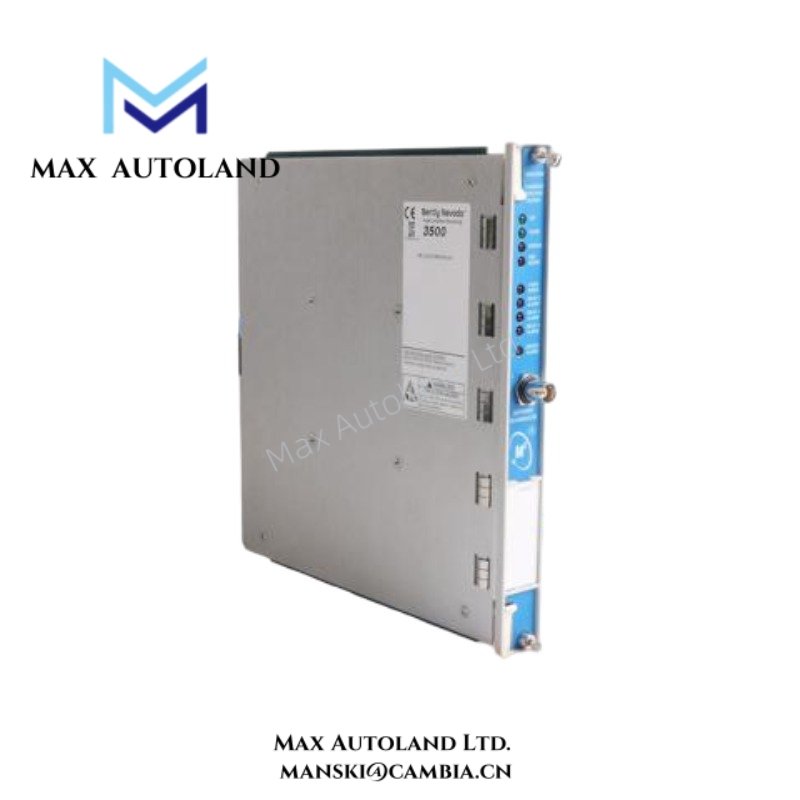

The Bently Nevada 3500 Overspeed Detection Module is engineered for high-speed machinery protection in critical rotating equipment applications. It provides precise overspeed monitoring to prevent catastrophic mechanical failures caused by excessive rotational speed.
This module continuously evaluates input signals from speed sensors and delivers real-time overspeed detection logic. Moreover, it ensures immediate system response when predefined speed thresholds are exceeded, protecting turbines and other high-energy machines.
Engineers rely on this module to enhance operational safety in environments where mechanical overspeed conditions can lead to severe damage. Therefore, it plays a vital role in safeguarding both equipment and personnel.
In addition, the module integrates seamlessly into the Bently Nevada 3500 system architecture, allowing centralized monitoring and alarm management. This integration improves system reliability and supports fast decision-making during abnormal operating conditions.
Key Features and Functional Highlights
- Provides high-accuracy overspeed detection for rotating machinery systems
- Supports redundant and independent speed input channels for safety assurance
- Moreover, delivers real-time trip and alarm signals for immediate protection response
- Fully integrated within the Bently Nevada 3500 machinery protection system
- Therefore, enhances turbine and compressor safety under high-speed conditions
- Configurable threshold settings for flexible application requirements
- Designed for continuous operation in critical industrial environments
Specification
| Parameter | Description |
|---|---|
| Module Type | Electronic Overspeed Detection Module |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Function | Overspeed detection and trip signal generation |
| Input Signal Type | Speed signals from magnetic pickups or proximity probes |
| Number of Channels | Typically dual or redundant channel configuration |
| Detection Method | Digital overspeed logic with programmable thresholds |
| Response Output | Alarm and trip signal output to protection system |
| Integration | Fully compatible with 3500 rack architecture |
| Setpoint Configuration | User-configurable overspeed limits |
| Mounting | Rack-mounted within 3500 system chassis |
| Display Indicators | LED status indicators for channel and system health |
| Environmental Design | Suitable for high-vibration industrial environments |
| Operating Temperature | Designed for standard industrial operating ranges |
| Reliability | Engineered for high-integrity safety-critical applications |
| Compliance | Meets industrial machinery protection and safety standards |
FAQ
Q1: What is the main function of the overspeed detection module?
A1: It detects excessive rotational speed and triggers alarms or shutdown signals to protect machinery.
Q2: What types of sensors does it support?
A2: It supports magnetic pickups and proximity probe speed sensors for accurate measurement.
Q3: Where is this module commonly used?
A3: It is used in turbines, compressors, and other high-speed rotating industrial equipment.
Q4: Does it integrate with the 3500 system?
A4: Yes, it fully integrates into the Bently Nevada 3500 machinery protection architecture.
Q5: Why is overspeed protection important?
A5: It prevents mechanical failure and catastrophic damage caused by uncontrolled high rotational speed.
Reviews
There are no reviews yet.
