Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 172103-01 |

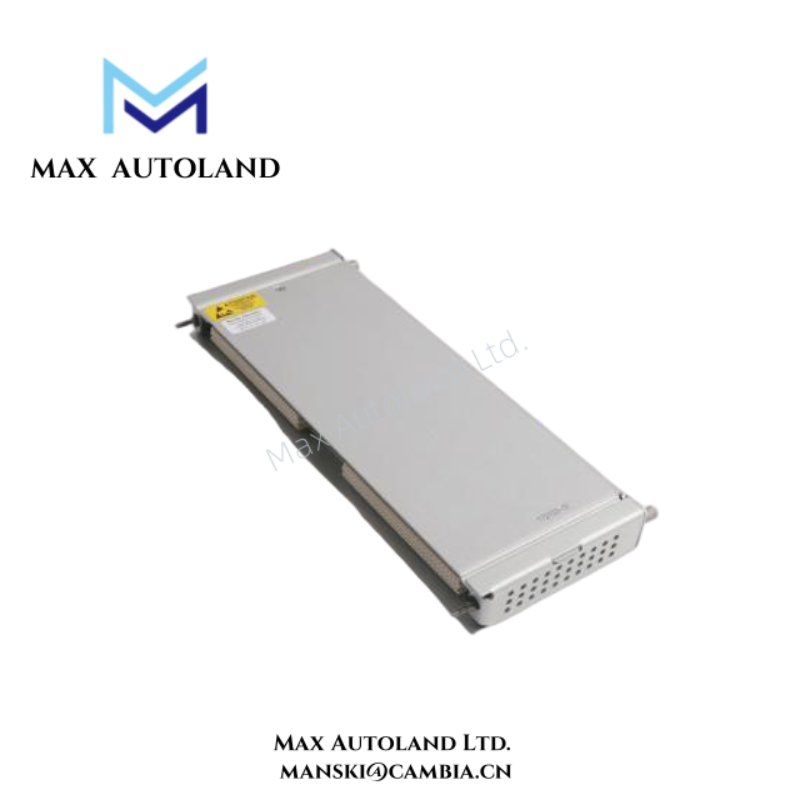

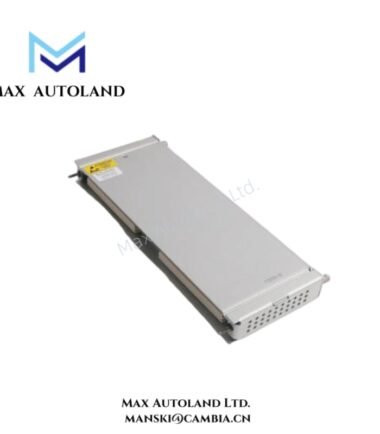

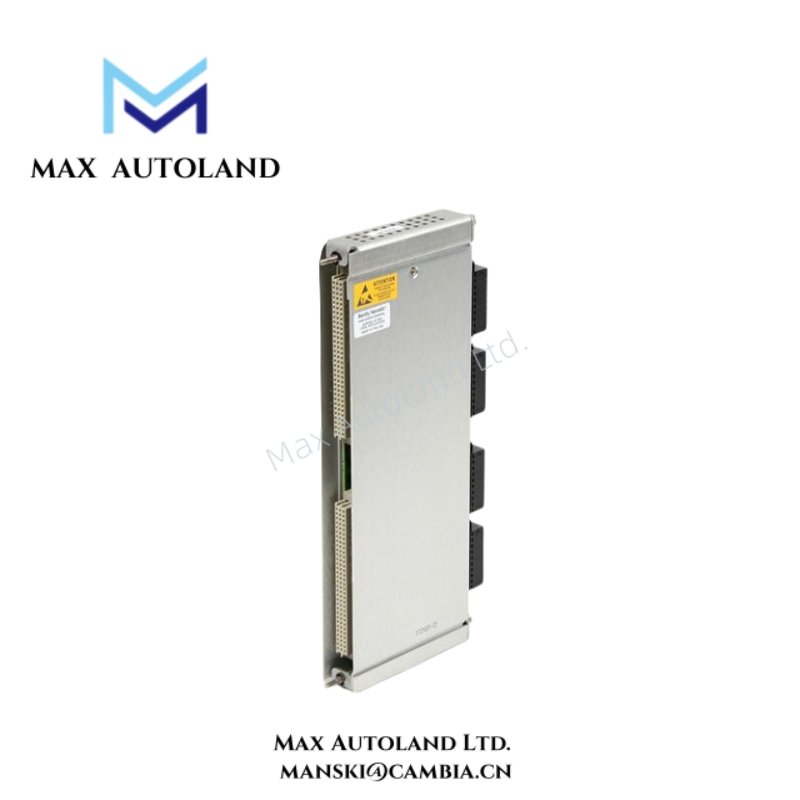

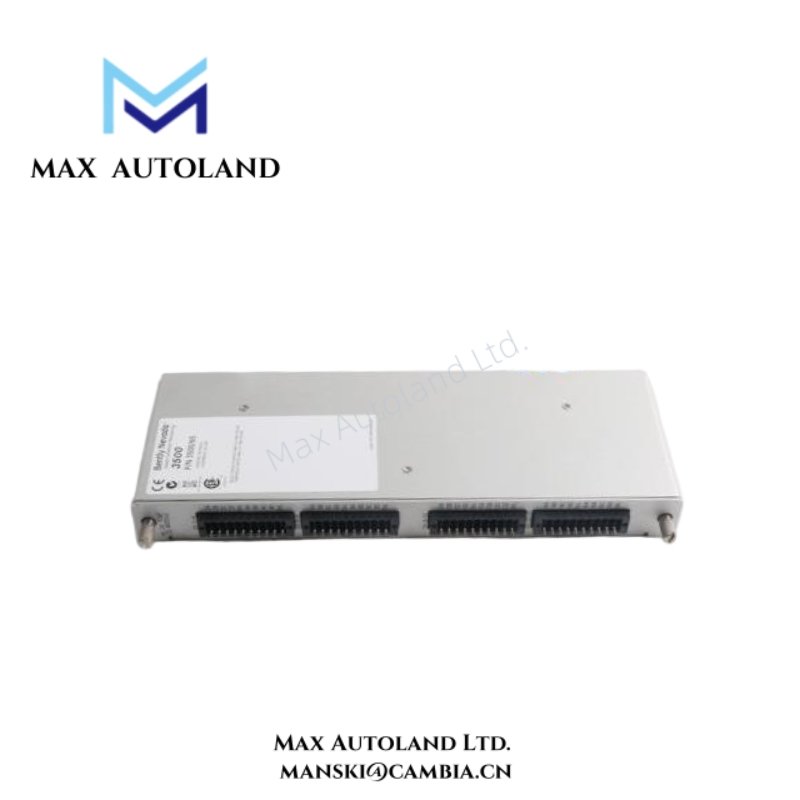

| Module Type | 3500/65 RTD / Isolated Tip Thermocouple I/O Module |
| Number of Channels | 16 independent input channels |
| Supported Sensor Types | RTD (PT100, PT1000, etc.), Isolated Tip Thermocouples (TC Types J, K) |
| Input Range – RTD | 0–400Ω typical, 0–850°C depending on sensor type |
| Input Range – Thermocouple | Type J: -210–1200°C, Type K: -200–1372°C |
| Input Resolution | 0.01°C for RTD, 0.1°C for TC |
| Accuracy – RTD | ±0.1°C typical at 0–100°C |
| Accuracy – Thermocouple | ±0.5°C typical |
| Isolation | Channel-to-channel and channel-to-system isolated |
| Terminations | Internal factory-configured, simplifies wiring |
| Signal Conditioning | Filtering, cold junction compensation, linearization |
| Sample Rate | Up to 2 samples/sec per channel |
| Response Time | RTD: <200 ms, Thermocouple: <300 ms |
| Integration | Compatible with Bently Nevada 3500 Machinery Protection System |
| Chassis Slot | Standard 3500 module form factor |
| Operating Temperature | 0–70°C (32–158°F) |
| Storage Temperature | -40–85°C (-40–185°F) |
| Humidity | 5–95% non-condensing |
| Power Supply | Supplied by 3500 chassis |
| Dimensions | Standard 3500 module footprint |
| Mounting | DIN rail or chassis slot |
| Certifications / Compliance | CE, UL listed (depending on region) |
| LED / Diagnostics | Status LEDs for channel health and fault detection |
| Environmental Protection | Designed for industrial use, vibration and EMI resistant |
FAQ
A1: It supports RTD sensors and isolated tip thermocouples for high-accuracy measurements.Q2: How many input channels are available on this module?
A2: The module provides 16 independent input channels for RTD or thermocouple connections.
Q3: Can the module operate in electrically noisy environments?
A3: Yes, its isolated inputs reduce interference and maintain signal integrity.
Q4: Is it compatible with the Bently Nevada 3500 system?
A4: Yes, it fully integrates with 3500 Machinery Protection System modules.
Q5: Does the module simplify wiring installation?
A5: Yes, internal terminations reduce wiring complexity and streamline setup.
Q6: What is the operating temperature range for this module?
A6: The module operates safely between 0°C and 70°C (32–158°F).
