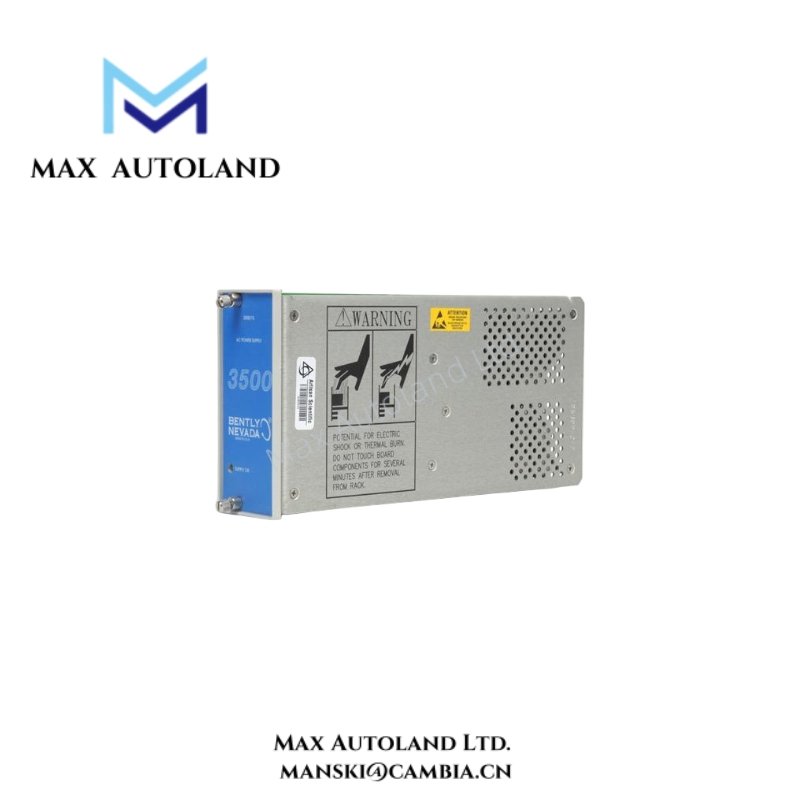

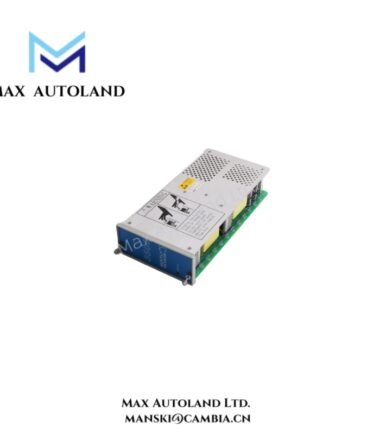

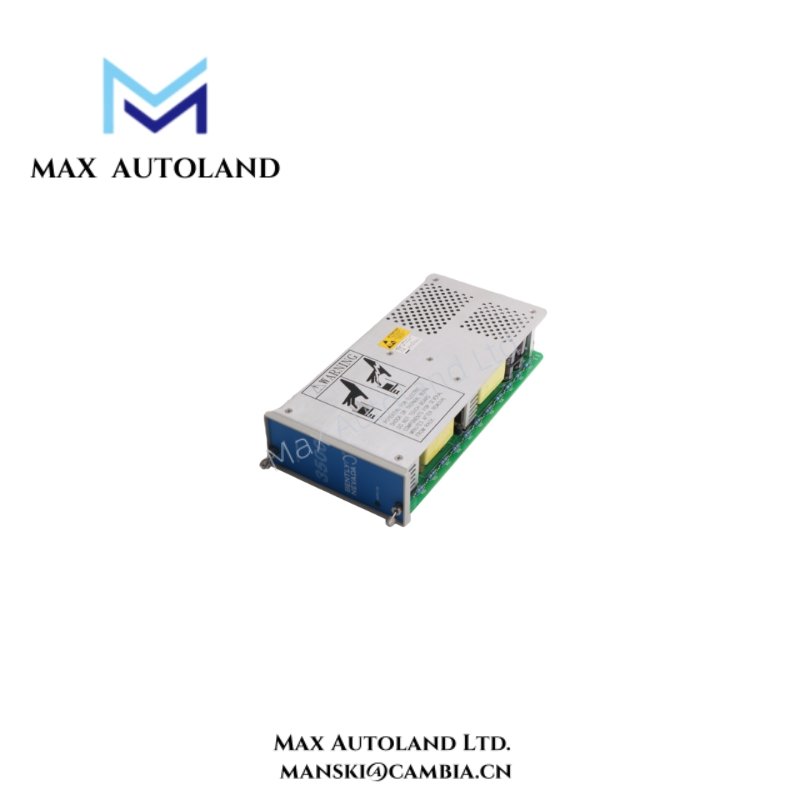

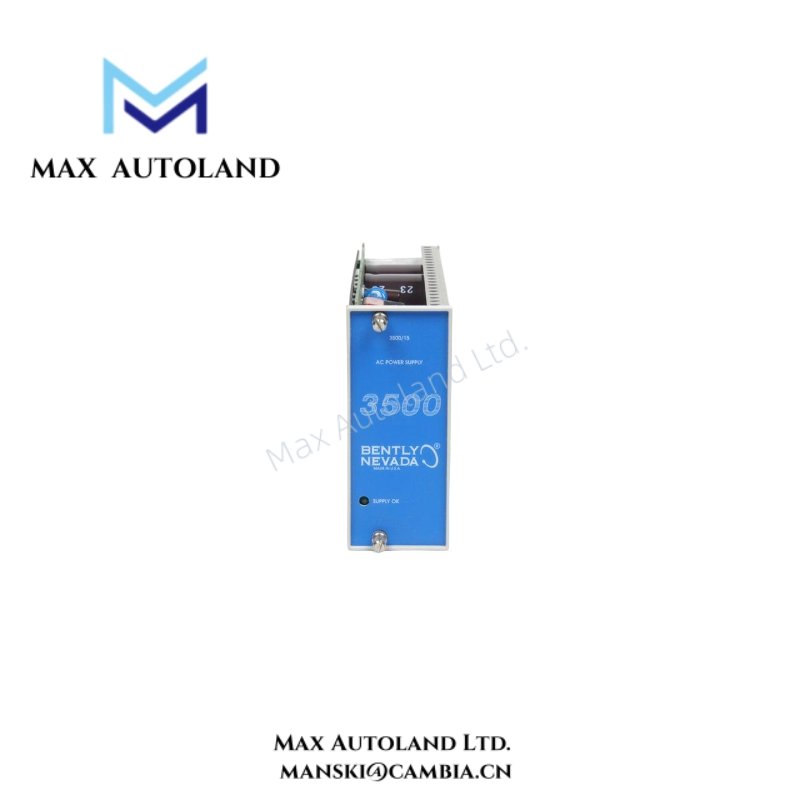

Overview
Specification
| Parameter | Description |
|---|---|
| Model Number | 3500/15 |
| Part Number | 127610-01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Function | AC to DC regulated power supply for the 3500 system |
| Input Voltage Range | 85 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Input Power Consumption | Typically 90 VA per module |
| Output Voltage | +24 VDC, +15 VDC, –15 VDC, +5 VDC (regulated for system use) |
| Output Power Capacity | Sufficient for full rack load of 3500 modules |
| Efficiency | >80% typical under nominal load |
| Power Redundancy | Dual module operation with automatic failover |
| Switchover Time | <20 milliseconds (seamless transition between supplies) |
| Inrush Current | <30A peak at 120 VAC input |
| Electrical Isolation | 1500 V RMS isolation between input and output |
| Cooling Method | Convection-cooled, no moving parts |
| Indicators | OK (green), Power (green), Fault (red) |
| Module Location | Installs in the leftmost rack position of the 3500 frame |
| Operating Temperature | 0°C to +65°C (32°F to +149°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Relative Humidity | 95% non-condensing |
| Dimensions | Approx. 24.4 cm (H) × 3.8 cm (W) × 17.1 cm (D) |
| Weight | Approx. 1.2 kg (2.65 lb) |
| Certifications | CE, CSA, IEC/EN 61010-1 |
| Mounting | Fits standard 3500 rack slot |
| Maintenance Interval | Recommended inspection every 12–24 months |
| Warranty | Typically 2 years (may vary by distributor) |
FAQ
A1: The 127610-01 is the standard AC power version, while 127610-02 is a variant optimized for specific voltage configurations.Q2: Can this module be used with DC input?
A2: No, this version supports AC input only. Use the 3500/15 DC Power Supply for DC sources.Q3: Does the power supply require external cooling?
A3: No, it uses natural convection cooling and does not include fans.
Q4: What happens if the primary power supply fails?
A4: The redundant module automatically takes over, ensuring uninterrupted system operation.
Q5: How often should the module be replaced or inspected?
A5: Regular inspection every 12 to 24 months is recommended to maintain system reliability.
