Overview

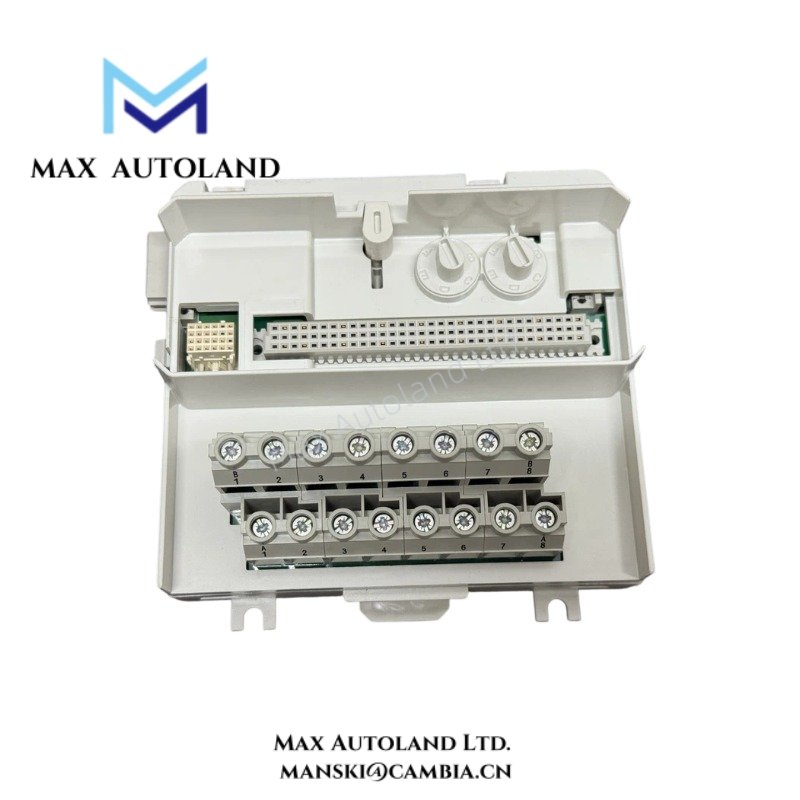

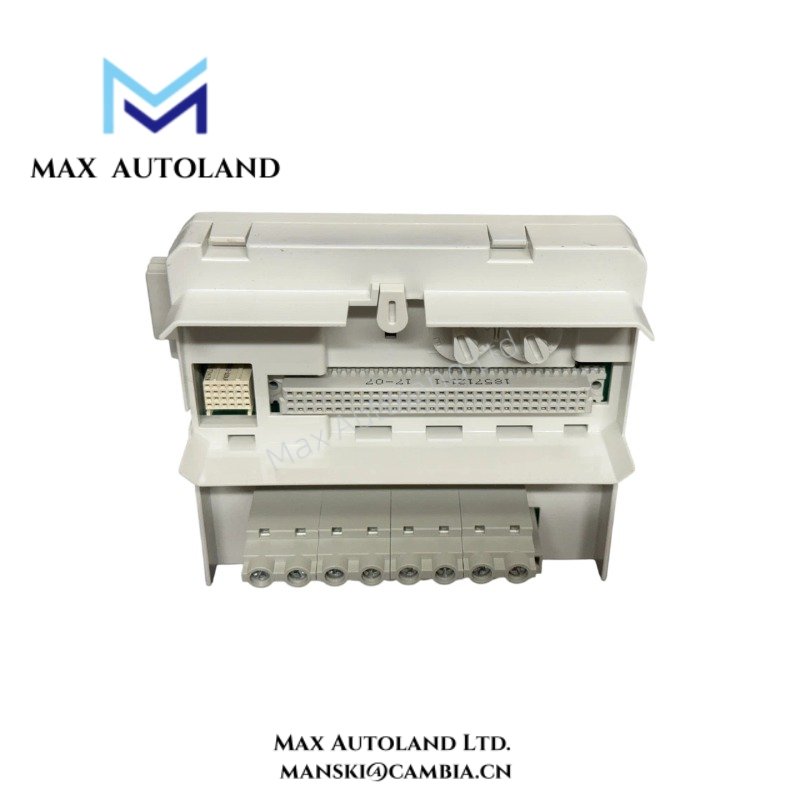

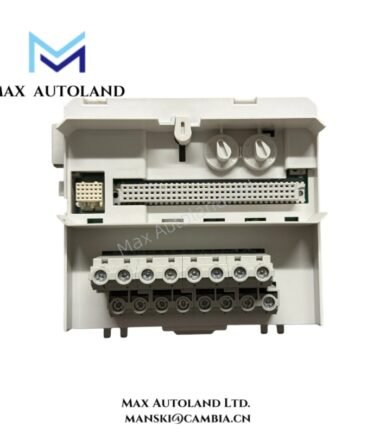

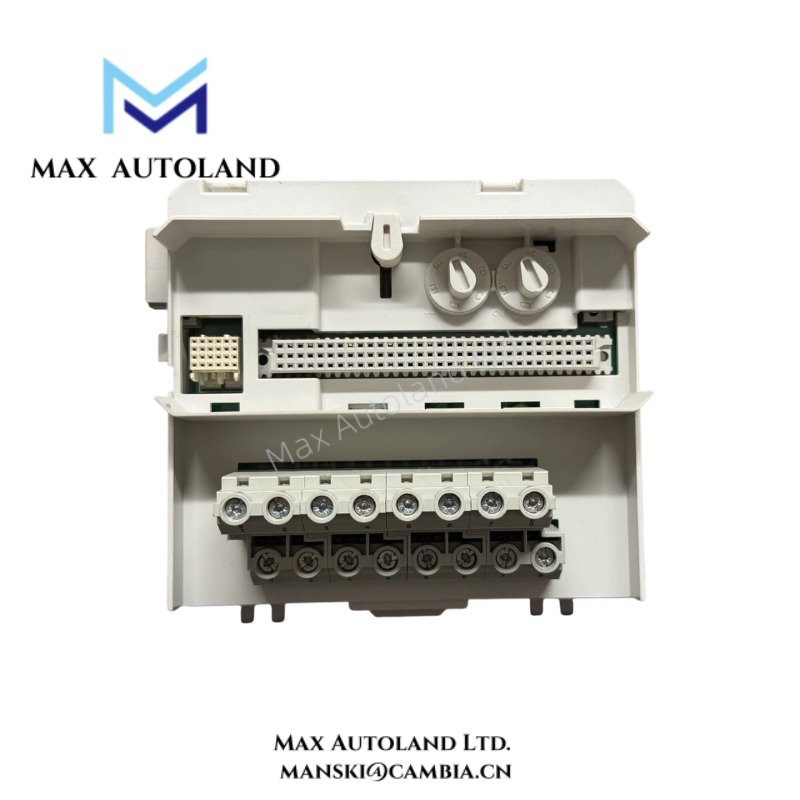

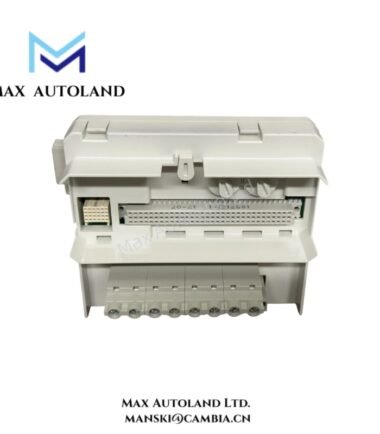

The ABB TU831V1 3BSE013235R1 is a robust terminal unit designed for seamless integration within Advant OCS and 800xA systems. It provides a reliable interface between field wiring and S800 I/O modules, ensuring stable signal transmission in demanding industrial environments. Moreover, the compact and modular design simplifies installation while maintaining high wiring density and service accessibility.
Engineers often select the TU831V1 for its consistent performance and straightforward integration into existing ABB automation architectures. In addition, the unit supports efficient signal routing, which reduces commissioning time and minimizes wiring errors during system setup. Therefore, it plays a critical role in maintaining system integrity across distributed control environments.
Key Features and Functional Benefits
The TU831V1 terminal unit offers flexible connectivity for industrial I/O systems, enabling fast and secure wiring termination. Moreover, its robust construction ensures long-term durability even under harsh environmental conditions, including vibration and temperature variations.
In addition, the design supports clear channel identification, which improves maintenance efficiency and reduces troubleshooting time in complex installations. For instance, technicians can quickly isolate signals during diagnostics, significantly reducing system downtime. Therefore, this module enhances both operational reliability and lifecycle cost efficiency.
Furthermore, compatibility with ABB S800 I/O modules ensures smooth integration without additional adapters or custom configurations. As a result, system engineers can standardize hardware across multiple projects and reduce spare part complexity.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Product Type | Terminal Unit | Designed for ABB S800 I/O systems to provide structured field wiring termination |
| Model | TU831V1 | Standard terminal unit version optimized for reliability and ease of integration |
| Order Number | 3BSE013235R1 | Unique ABB identification number for procurement and system configuration |
| System Compatibility | ABB Advant OCS, ABB 800xA | Fully compatible with distributed control systems using S800 I/O architecture |
| Mounting Method | DIN Rail Mounting | Supports standard 35 mm DIN rail for fast installation and secure panel placement |
| Connection Type | Screw Terminal Connections | Provides stable and vibration-resistant wiring termination for industrial signals |
| Channel Capacity | Module Dependent | Supports multiple I/O channels depending on the connected S800 I/O module type |
| Wiring Configuration | Structured Field Wiring | Enables organized cable routing and clear signal separation within control cabinets |
| Material | Industrial-Grade Insulating Material | High-durability thermoplastic designed for electrical insulation and mechanical strength |
| Operating Temperature | -25°C to +70°C | Suitable for continuous operation in harsh industrial environments |
| Storage Temperature | -40°C to +85°C | Ensures safe storage and transport without performance degradation |
| Humidity Resistance | Up to 95% non-condensing | Designed to operate reliably in high-humidity industrial conditions |
| Protection Features | सुरक्षित Signal Termination | Ensures safe electrical isolation and minimizes risk of short circuits or signal interference |
| Mechanical Stability | High مقاومت to Vibration | Engineered to withstand vibration in heavy industrial installations |
| Dimensions | Compact Form Factor | Space-saving design allows high-density installation in control cabinets |
| Installation Efficiency | Tool-Assisted Wiring | Screw terminals enable quick and secure installation with standard tools |
| Maintenance Accessibility | Clear Terminal Labeling | Simplifies troubleshooting, inspection, and signal identification |
| Compliance | Industrial Automation Standards | Designed in accordance with ABB system and industrial control requirements |
FAQ
Q1: Is the TU831V1 compatible with ABB 800xA systems?
Yes, the TU831V1 fully supports ABB 800xA and Advant OCS systems without additional configuration requirements.
Q2: What type of connections does the TU831V1 use?
It uses screw terminal connections, which provide secure and reliable wiring for industrial applications.
Q3: Can this terminal unit be used in harsh environments?
Yes, it is designed with industrial-grade materials and supports operation in demanding temperature and vibration conditions.
Q4: Does the TU831V1 require regular maintenance?
No, it requires minimal maintenance due to its durable design and straightforward terminal layout.
Q5: Is it suitable for retrofit projects?
Yes, it integrates easily into existing ABB systems, making it ideal for both upgrades and new installations.
