Overview

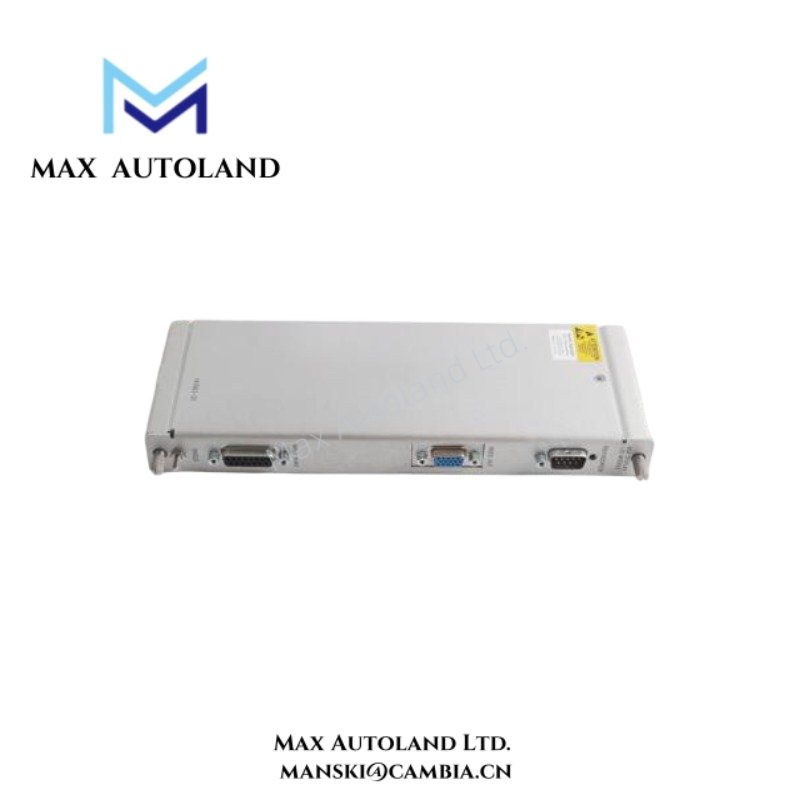

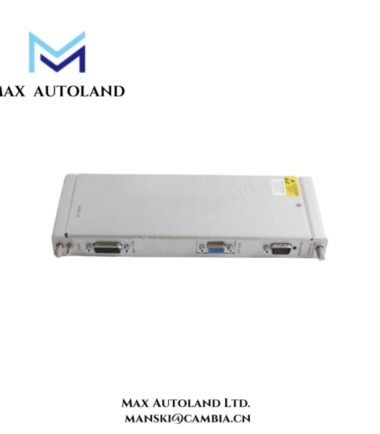

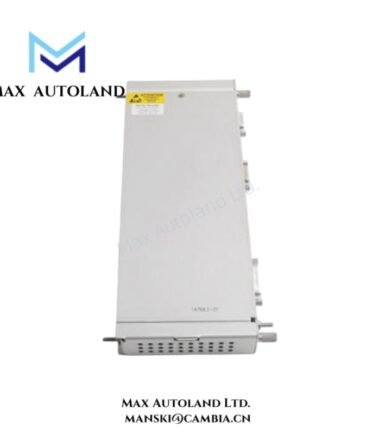

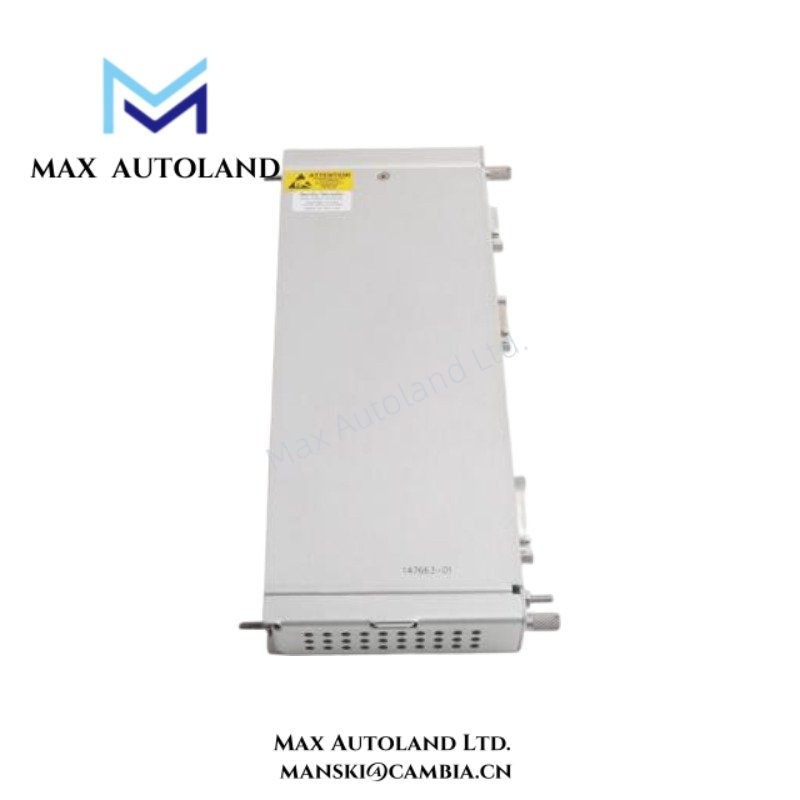

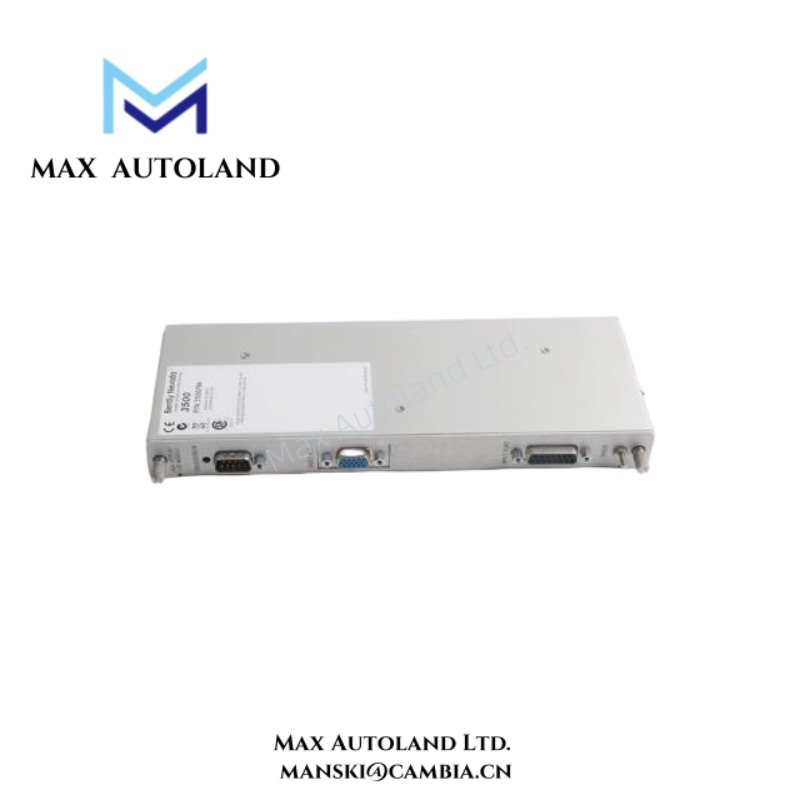

The Bently Nevada 3500/94 147663-01 I/O Module provides reliable interface functionality within the 3500 Machinery Protection System.
It manages signal input and output operations between field instrumentation and system monitoring modules.
Moreover, the module ensures stable and accurate data transmission for vibration and machinery condition monitoring applications.
Therefore, engineers rely on it to maintain consistent communication between sensors and protection system architecture.
It supports continuous operation in demanding industrial environments where data integrity remains essential.
Key Features and Functional Highlights
The module handles multiple analog and digital signal interfaces for machinery monitoring systems.
In addition, it supports flexible configuration options to adapt to different industrial application requirements.
Engineers configure input and output channels to match specific monitoring and control strategies.
Moreover, it integrates seamlessly with other 3500 system modules for synchronized data processing.
Furthermore, built-in diagnostics continuously monitor signal health and system communication stability.
Specification
| Parameter | Description |
|---|---|
| Model | 3500/94 I/O Module |
| Part Number | 147663-01 |
| Function | Input/Output interface for machinery protection system |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Signal Types | Analog and digital signal processing |
| Channel Configuration | Multi-channel configurable I/O |
| Data Handling | Real-time signal acquisition and transmission |
| Communication | Internal 3500 rack backplane communication |
| Mounting | Rack-mounted module |
| Power Supply | Supplied via 3500 rack backplane |
| Diagnostics | Built-in self-test and signal integrity monitoring |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
FAQ
Q1: What is the main function of the 3500/94 module?
It provides input and output signal interfacing for the Bently Nevada 3500 monitoring system.
Q2: What types of signals does it support?
It supports both analog and digital signal processing for industrial monitoring applications.
Q3: Is it compatible with all 3500 modules?
Yes, it integrates fully within the Bently Nevada 3500 Machinery Protection System.
Q4: Can it be used in harsh environments?
Yes, it is designed for continuous operation in demanding industrial conditions.
