Overview

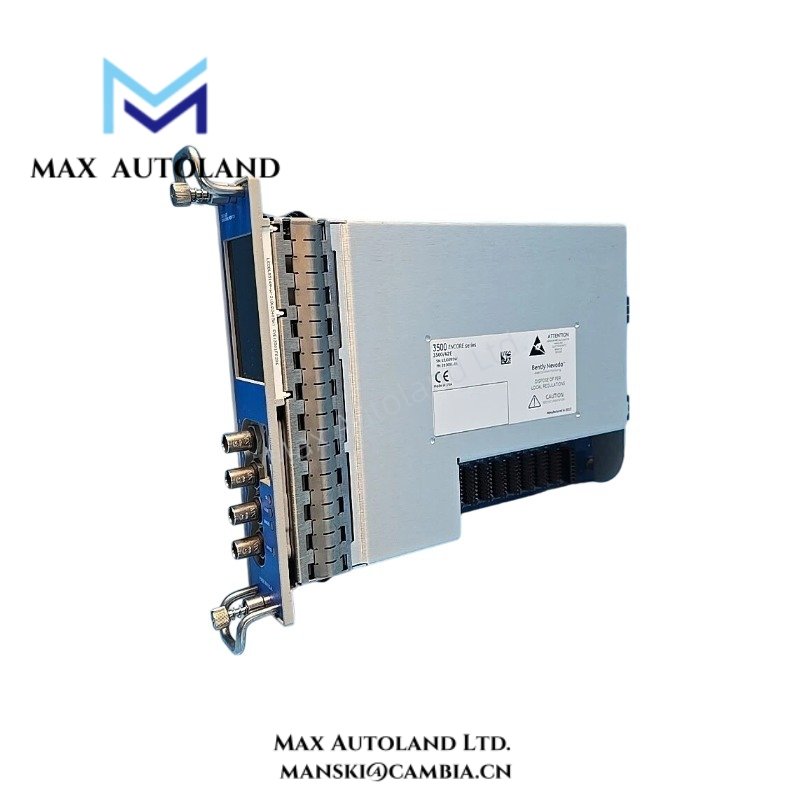

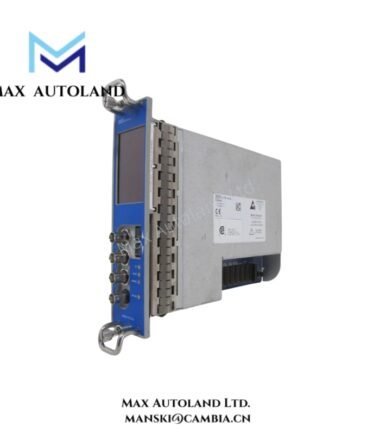

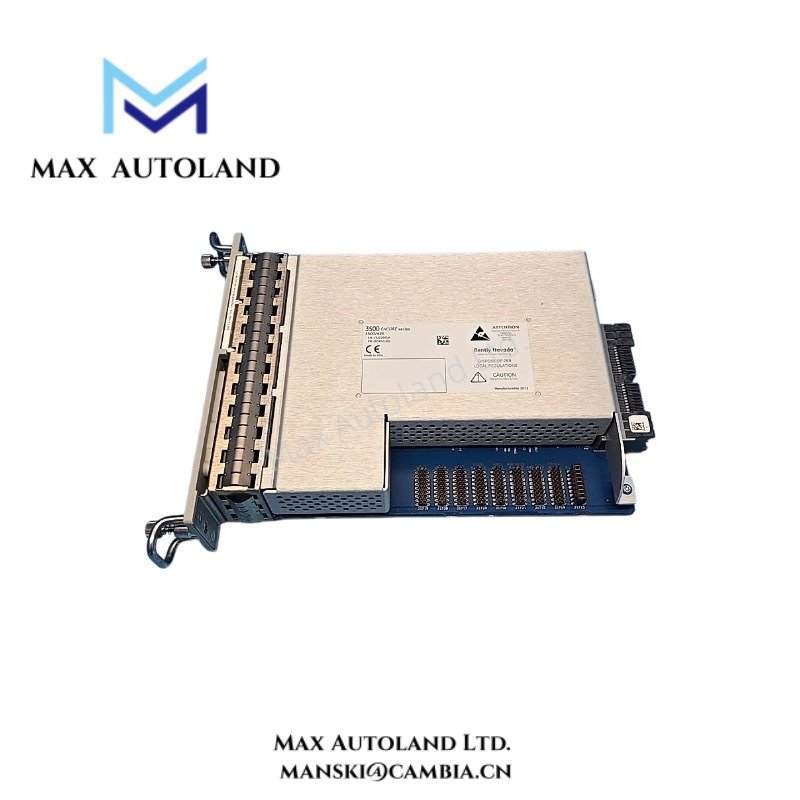

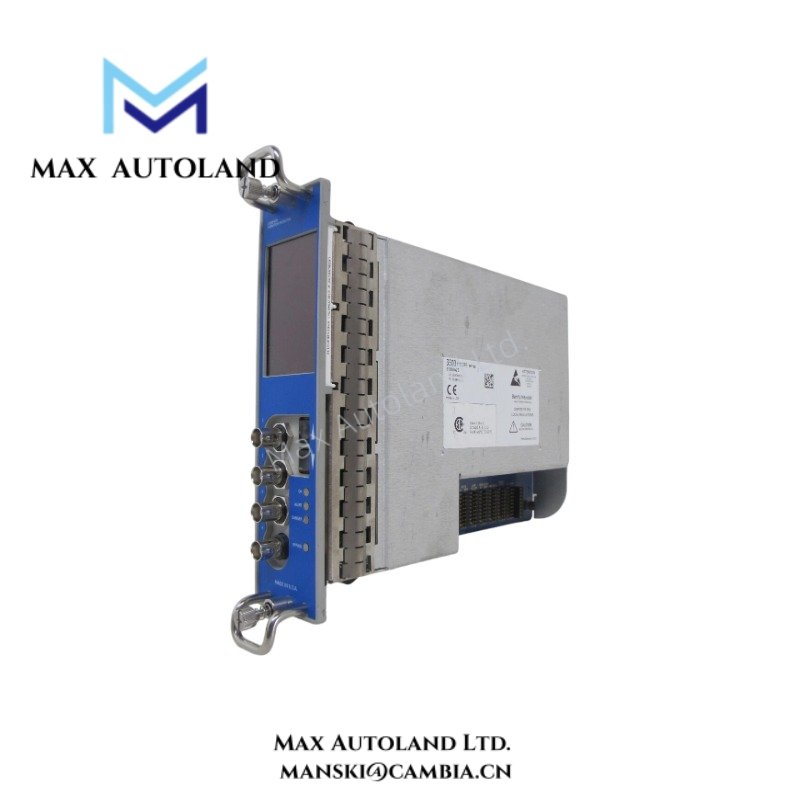

The Bently Nevada 3500/42E 285691-01 Proximitor/Seismic Monitor provides high-precision vibration and position monitoring for critical rotating machinery.
It processes signals from proximity probes and seismic sensors to deliver reliable machinery condition data.
Moreover, the module integrates directly into the 3500 Machinery Protection System for continuous asset monitoring.
Therefore, engineers use it to ensure early detection of vibration anomalies and mechanical instability.
It delivers stable performance in harsh industrial environments where accuracy and reliability remain essential.
Key Features and Functional Highlights
The module supports simultaneous monitoring of both proximity and seismic vibration signals.
In addition, it converts raw sensor inputs into accurate, real-time condition data for analysis systems.
Engineers configure alarm thresholds and scaling parameters based on specific machine operating profiles.
Moreover, it supports dual-channel processing, improving redundancy and measurement reliability.
Furthermore, built-in diagnostics continuously evaluate sensor health and signal integrity during operation.
Specification
| Parameter | Description |
|---|---|
| Model | 3500/42E Proximitor/Seismic Monitor |
| Part Number | 285691-01 |
| Function | Vibration and position monitoring module |
| Input Types | Proximity probes and seismic velocity sensors |
| Channels | Multi-channel configuration support |
| Measurement Types | Vibration, position, and dynamic motion data |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Signal Processing | Real-time analog-to-digital conversion |
| Output Data | Condition monitoring and alarm signals |
| Mounting | Rack-mounted within 3500 system |
| Power Supply | Supplied via 3500 rack backplane |
| Diagnostics | Continuous self-check and sensor validation |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
FAQ
Q1: What is the main function of the 3500/42E module?
It monitors vibration and position signals from proximity and seismic sensors in machinery systems.
Q2: What types of sensors does it support?
It supports proximity probes and seismic velocity sensors for vibration monitoring applications.
Q3: Can it be used with other 3500 modules?
Yes, it integrates fully with the Bently Nevada 3500 Machinery Protection System.
Q4: Is the module suitable for harsh environments?
Yes, it operates reliably in high vibration, temperature, and industrial noise conditions.
