Overview

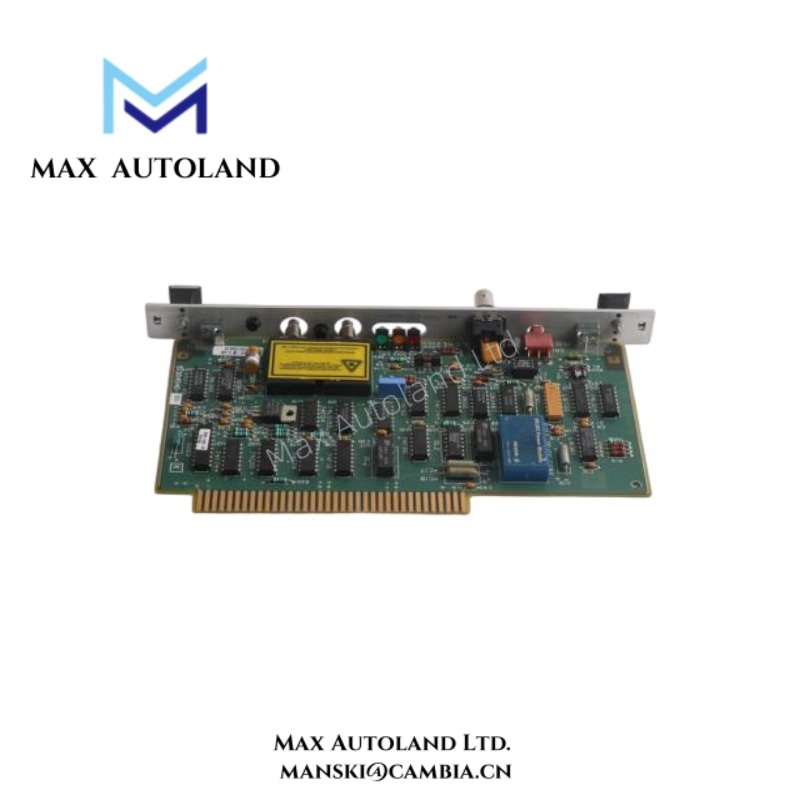

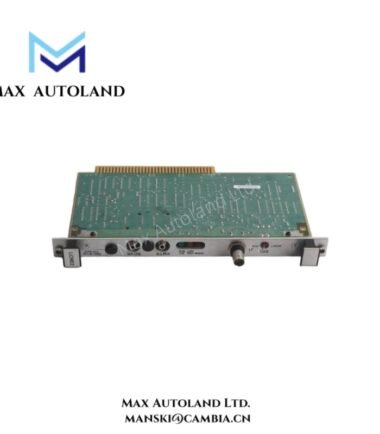

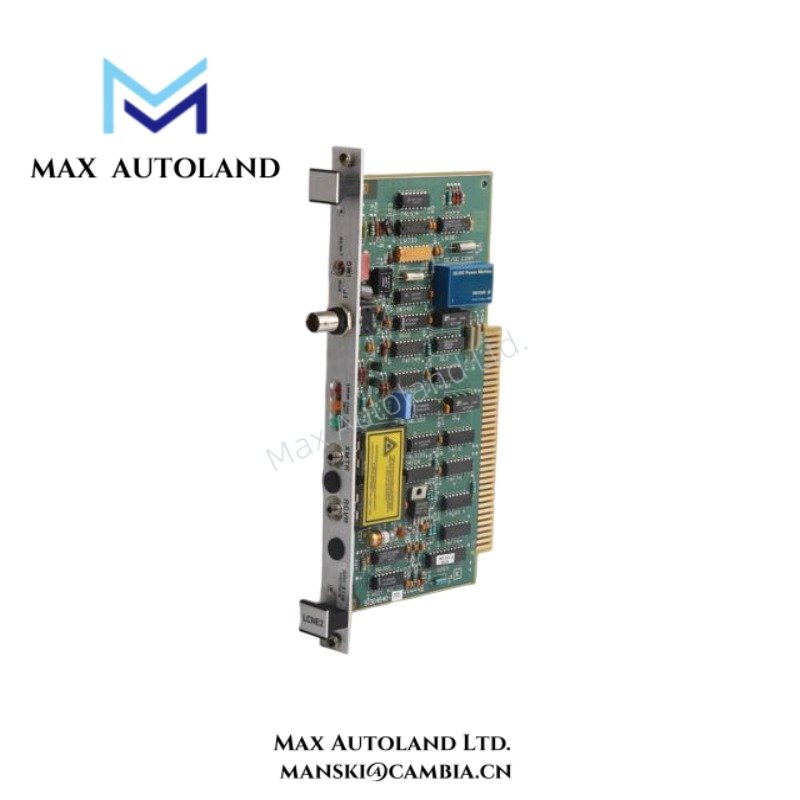

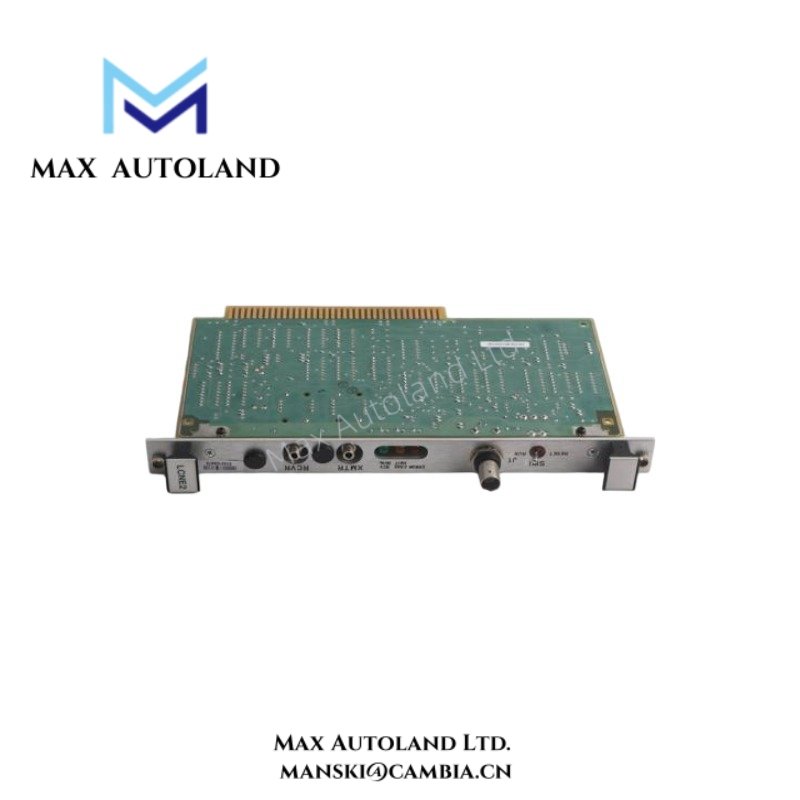

The 51304540-200 paddle board provides reliable signal interfacing for Honeywell TDC 3000 control systems.
Moreover, Honeywell designs the 51304540-200 to ensure stable communication within LCNE2 network architectures.
Additionally, the module supports efficient data exchange between control processors and field modules.
Therefore, engineers rely on 51304540-200 for consistent system connectivity and operational stability.
Key Technical Features
The 51304540-200 delivers stable electrical interfacing for distributed control system communication.
Furthermore, the board supports LCNE2 network integration for high-reliability industrial automation.
In addition, Honeywell equips the 51304540-200 with robust circuit design for noise-resistant signal transmission.
As a result, the module ensures dependable performance in continuous industrial operation environments.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | 51304540-200 |
| Manufacturer | Honeywell |
| Product Type | Paddle Board / Interface Module |
| Series | TDC 3000 |
| Application | Industrial control system communication interface |
| Network Type | LCNE2 communication interface support |
| Signal Function | Data routing and control signal distribution |
| Interface Channels | Multi-channel backplane signal interface |
| Connector Type | Industrial-grade edge connector |
| Pin Configuration | High-density multi-pin connection layout |
| Signal Type | Digital control and communication signals |
| Data Transfer | Stable low-latency system communication |
| Power Supply | Backplane powered module |
| Power Consumption | Approx. 5–9 W |
| Energy Storage | None (passive interface board) |
| Dimensions | Approx. 220 mm × 140 mm × 40 mm |
| Weight | Approx. 0.6 kg |
| Mounting Type | Rack-mounted backplane installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Features | Industrial noise filtering and signal stabilization |
