Overview
Specification
| Parameter | Description |
|---|---|
| Model | 330101-00-12-10-02-05 |

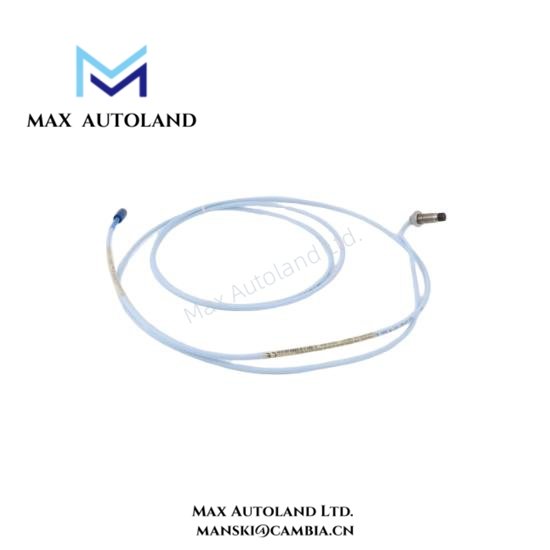

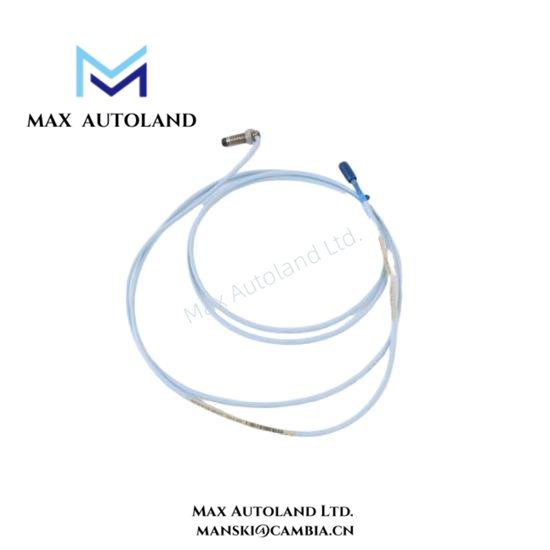

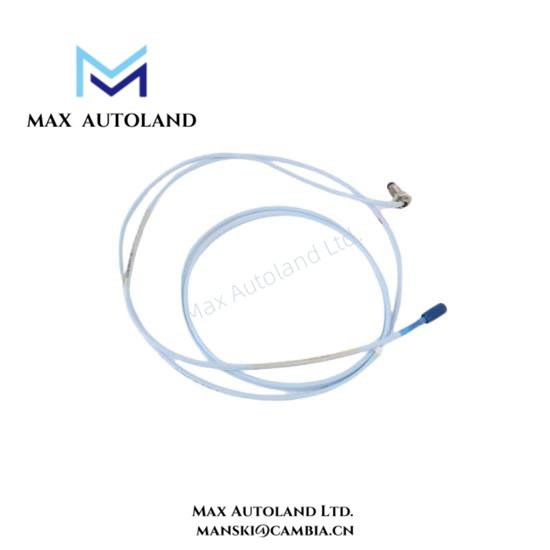

| Probe Type | 8 mm NSv Proximity Transducer Probe |
| Measurement Principle | Eddy-current proximity sensing for shaft displacement |
| Measurement Range | 0–500 µm peak-to-peak typical |
| Sensitivity | 200 mV/mil (7.87 mV/µm) typical |
| Linearity | ±1% of full scale under normal operating conditions |
| Frequency Response | DC to 10 kHz, suitable for high-speed shaft monitoring |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Storage Temperature | -55°C to +125°C (-67°F to +257°F) |
| Shock Resistance | Up to 50 g for 11 ms per axis, operational |
| Vibration Resistance | 20 g, 10–2000 Hz, operational |
| EMI / RFI Immunity | Shielded probe and cable to reduce interference in industrial environments |
| Cable Type | Standard NSv extension or interconnect cable compatible |
| Mounting | Standard threaded probe mounting for 3300 XL system |
| Tip Material | Non-magnetic stainless steel, corrosion-resistant |
| Calibration | Front-panel adjustable via 3300 XL system |
| System Integration | Supports single, dual, or multiple probes in a 3300 XL rack |
| Typical Applications | Turbines, compressors, motors, pumps, generators, and other critical rotating machinery |
| Environmental Rating | Industrial-grade, resistant to dust, moisture, vibration, and EMI |
FAQ
Yes, it integrates fully with all 3300 XL modules, enabling continuous shaft vibration and displacement monitoring. Moreover, this simplifies system setup and ensures reliable data.
Q2: What is the probe’s measurement range?
It measures 0–500 µm peak-to-peak, providing high-resolution data. In addition, this range accommodates most industrial shaft displacement applications.
Q3: Is this probe suitable for harsh industrial environments?
Yes, it performs reliably under vibration, shock, EMI interference, and wide temperature fluctuations. Therefore, it delivers consistent operation in demanding conditions.
Q4: What is the probe’s sensitivity?
The probe provides 200 mV/mil for precise displacement measurement. Moreover, this sensitivity supports early detection of misalignment and bearing wear.
Q5: How is the probe calibrated for accurate measurements?
Calibration is performed through the 3300 XL system’s front-panel controls, allowing fast and reliable setup. In addition, operators can maintain accuracy without specialized tools.
Q6: Can this probe be used for multiple shaft monitoring points?
Yes, it supports dual or multiple probe arrangements with corresponding 3300 XL modules. Therefore, it increases monitoring coverage while maintaining system efficiency.
