Overview
Specification
| Parameter | Description |
|---|---|
| Model | 330101-00-12-10-02-00 |

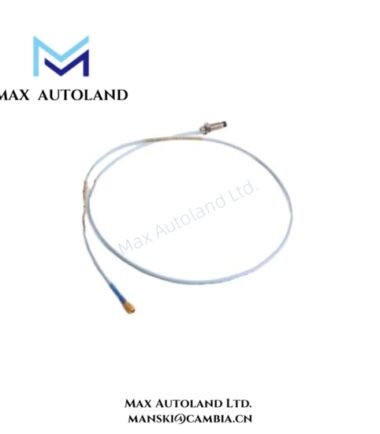

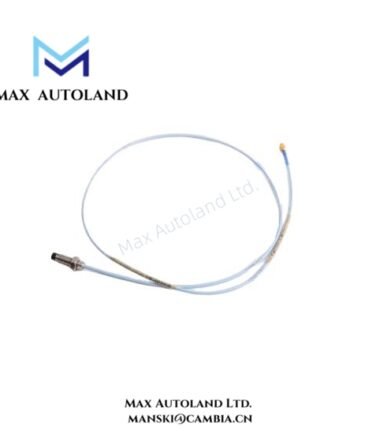

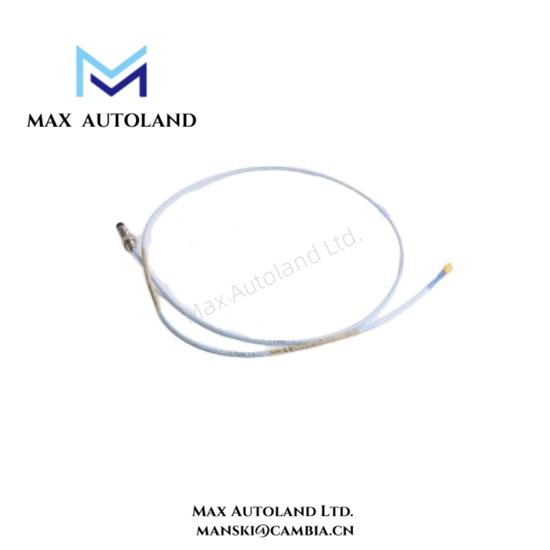

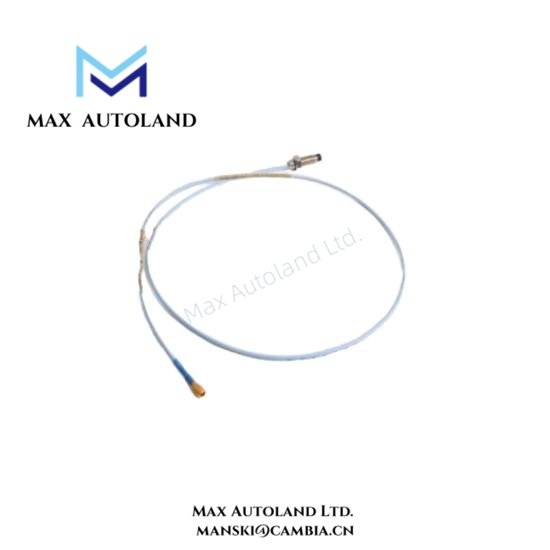

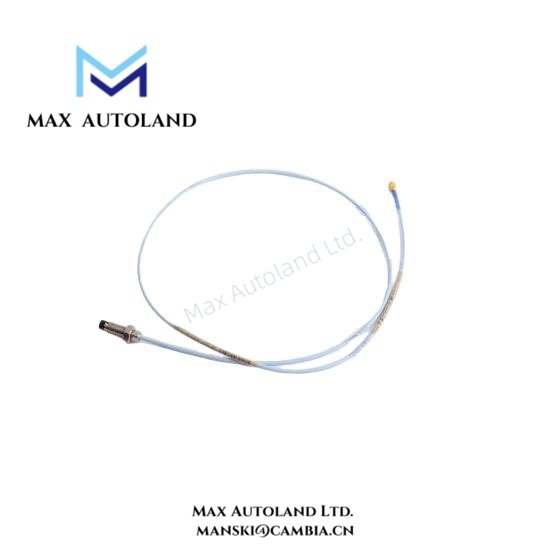

| Probe Type | NSv 8 mm proximity transducer |
| Measurement Function | Shaft displacement and vibration detection |
| Probe Diameter | 8 mm |
| Measurement Range | 0 – 500 µm peak-to-peak (typical) |
| Sensitivity | 200 mV/mil |
| Frequency Response | 0.5 Hz – 10 kHz |
| Phase Capability | Supports phase reference for relative shaft motion analysis |
| Connector Type | 3300 XL module-compatible |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Rating | Industrial-grade, vibration and shock resistant |
| Mounting | Compatible with 3300 XL system layout and rack slots |
| Calibration | Front-panel adjustable via 3300 XL system |
| Protection Features | EMI shielding, overvoltage and short-circuit protection |
| Typical Applications | Turbines, pumps, compressors, motors, and generators |
| Standards Compliance | Meets Bently Nevada industrial vibration monitoring standards |
FAQ
Yes, it fully integrates with all 3300 XL modules, enabling continuous shaft vibration and displacement monitoring. Moreover, this integration simplifies system setup and ensures reliable data collection.
Q2: What is the probe’s measurement range?
It typically measures 0–500 µm peak-to-peak, providing high-resolution data for critical machinery. In addition, this wide range accommodates most industrial shaft displacement applications.
Q3: Is this probe suitable for harsh industrial environments?
Yes, it operates reliably under vibration, shock, EMI interference, and wide temperature fluctuations. Therefore, it ensures consistent performance in demanding conditions.
Q4: What is the probe’s sensitivity?
The probe delivers 200 mV/mil for precise displacement measurement, which ensures accurate system readings. Furthermore, this sensitivity supports early detection of misalignment and bearing wear.
Q5: How is the probe calibrated for accurate measurements?
Calibration occurs via the 3300 XL system’s front-panel adjustments, allowing quick and reliable setup. Moreover, operators can easily maintain accuracy without specialized tools.
