Overview
Specification
| Parameter | Description |
|---|---|
| Model | 330101-00-12-15-02-05 |

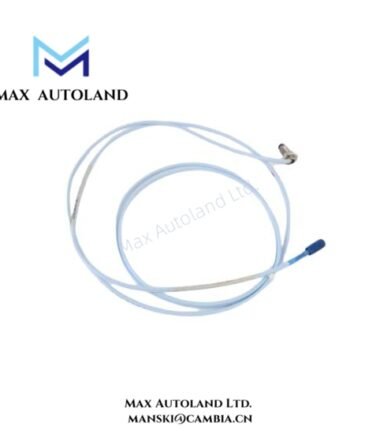

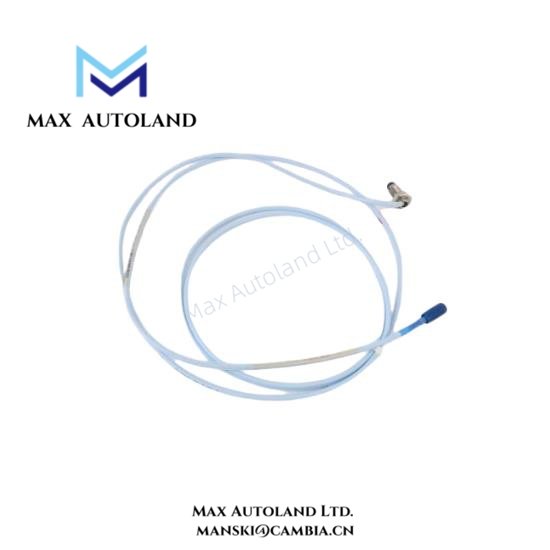

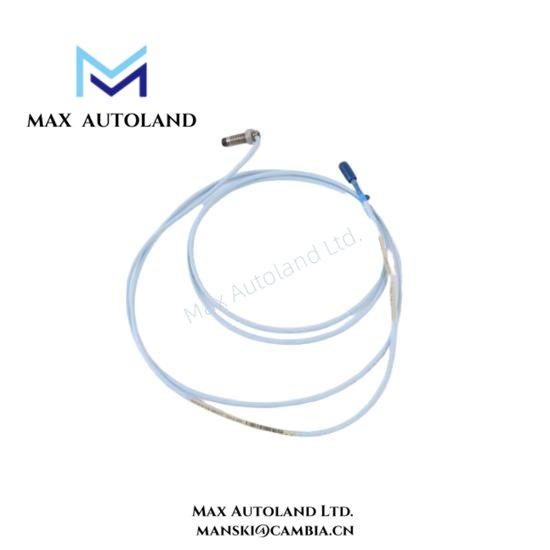

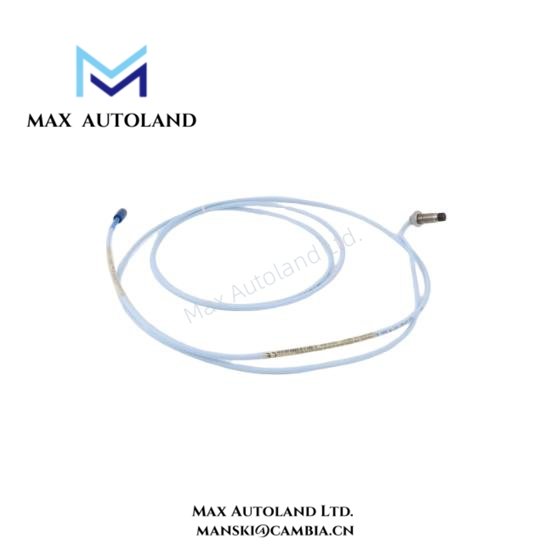

| Probe Type | 8 mm NSv Proximity Transducer Probe |
| Measurement Principle | Eddy-current proximity sensing |
| Measurement Range | 0–500 µm peak-to-peak |
| Sensitivity | 200 mV/mil (7.87 mV/µm) typical |
| Linearity | ±1% full scale under normal conditions |
| Frequency Response | DC to 10 kHz for high-speed shaft monitoring |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Storage Temperature | -55°C to +125°C (-67°F to +257°F) |
| Shock Resistance | Up to 50 g for 11 ms per axis |
| Vibration Resistance | 20 g, 10–2000 Hz operational |
| EMI / RFI Immunity | Shielded probe and cable reduce interference |
| Cable Type | Standard NSv extension or interconnect cable compatible |
| Mounting | Standard threaded probe mounting for 3300 XL system |
| Tip Material | Non-magnetic stainless steel, corrosion-resistant |
| Calibration | Front-panel adjustable via 3300 XL system |
| System Integration | Single, dual, or multiple probe arrangements supported |
| Typical Applications | Turbines, compressors, motors, pumps, generators |
| Environmental Rating | Industrial-grade: dust, moisture, vibration, EMI-resistant |
FAQ
Yes, it integrates seamlessly with all 3300 XL modules for continuous shaft vibration and displacement monitoring.
Q2: What is the probe’s measurement range?
It measures 0–500 µm peak-to-peak, providing precise data for high-speed, critical machinery.
Q3: Is this probe suitable for harsh industrial environments?
Yes, it withstands vibration, shock, EMI interference, and wide temperature fluctuations reliably.
Q4: What is the probe’s sensitivity?
The probe delivers 200 mV/mil, ensuring highly accurate displacement readings across all operating conditions.
Q5: How is the probe calibrated?
Calibration is performed via the 3300 XL system front-panel adjustments, ensuring ease of use and measurement reliability.
Q6: Can multiple probes be used on the same shaft?
Yes, the probe supports dual or multiple probe arrangements when integrated with corresponding 3300 XL modules.
