Overview

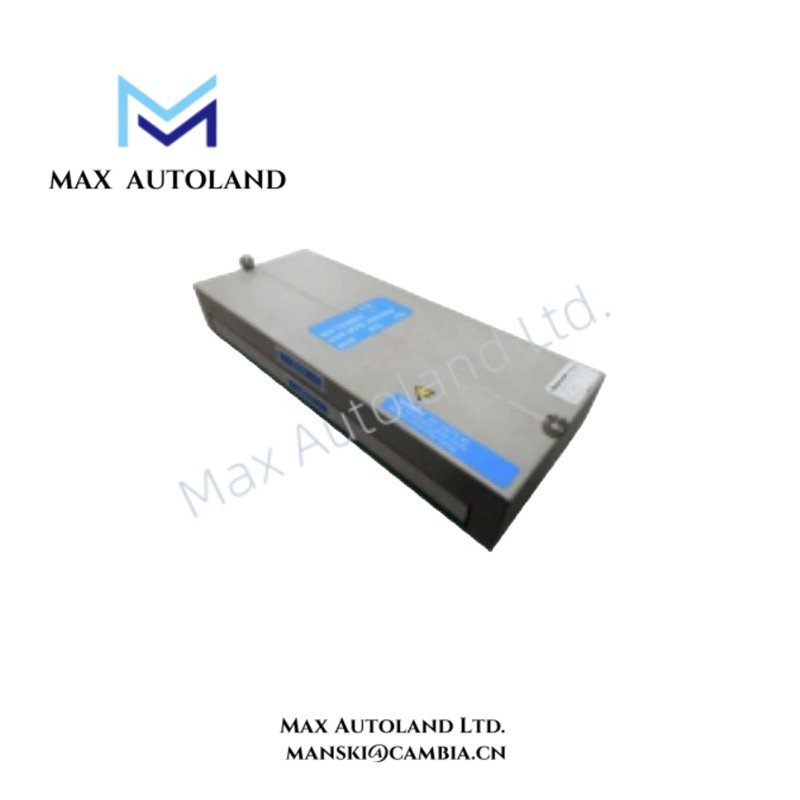

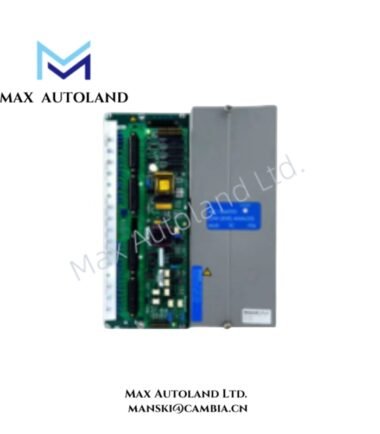

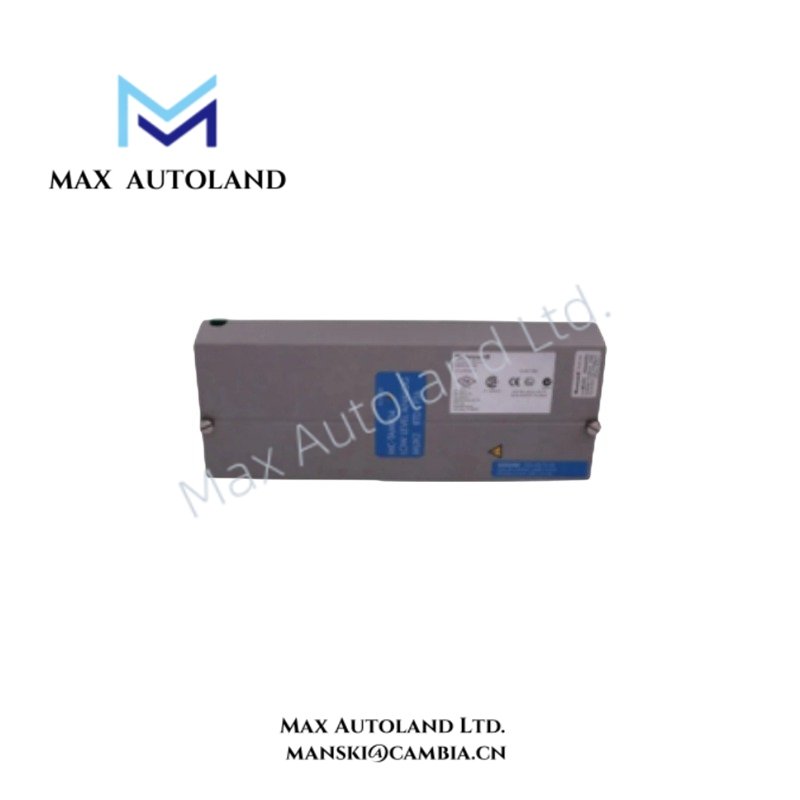

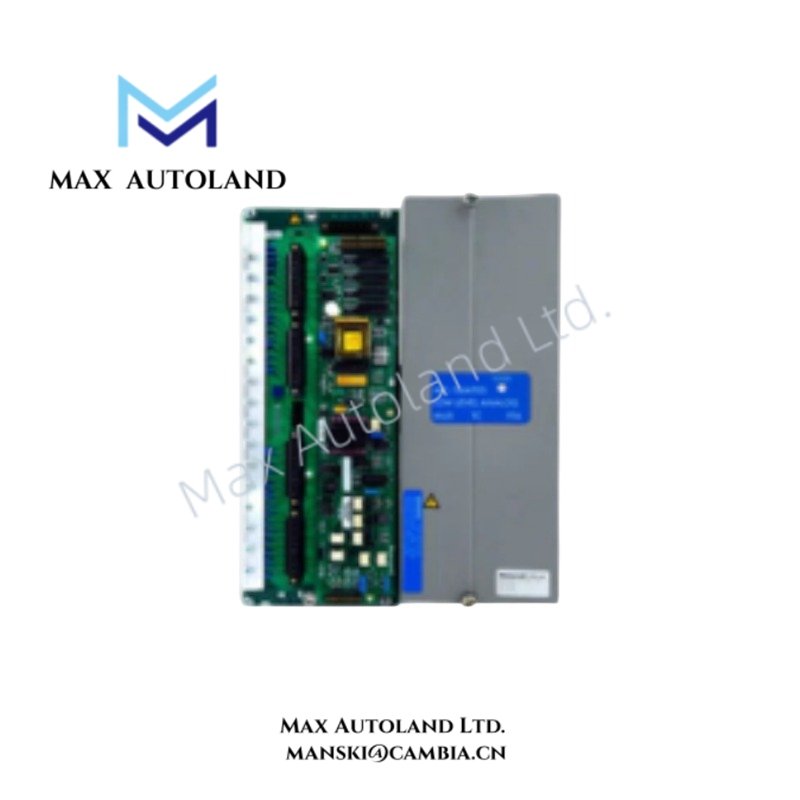

Configured for control-network hardware interfacing within Honeywell Experion PKS and related TDC/TPS architectures, the Honeywell MU-TMCN02 561401846-200 (MU-TMCN02 Control Network Interface Module) provides the physical interface required by the applicable control-system assembly. The supplied data identifies 561401846-2XX as a related part-number series.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TMCN02 |
| Part Number | 561401846-200 |
| Related Part Number Series | 561401846-2XX |
| Brand | Honeywell |
| Product Type | Control Network Interface Module |
| System Compatibility | Honeywell Experion PKS, TDC/TPS and related control-system architectures |
| Equipment Function | Control network or communication interface component |
| Mounting | System-dependent; cabinet, rack, or applicable sub-assembly installation |
| Pinout | Revision and assembly dependent; refer to the applicable Honeywell installation documentation |
| Electrical Interface | System-dependent; exact interface specification is not provided |
Honeywell DCS Communication Interface Characteristics
The MU-TMCN02 belongs to the Honeywell control-system hardware environment, where communication assemblies exchange control and diagnostic data through defined system interfaces. Therefore, technicians should verify the applicable network architecture before installation.
The supplied information does not identify a specific 4-20 mA HART, FOUNDATION Fieldbus, or Profibus PA interface for this part. Consequently, these protocols should not be assigned to the MU-TMCN02 without confirmation from the system hardware manual.
Channel isolation, signal reference, grounding, and communication wiring depend on the exact Honeywell assembly and system revision. Furthermore, technicians should confirm the applicable electrical interface before connecting field or network conductors.
Frequently Asked Questions (FAQ)
Q: Does the 561401846-200 part number identify the exact MU-TMCN02 hardware revision?
A: Yes. The supplied data identifies 561401846-200 with MU-TMCN02. The related 561401846-2XX designation indicates a broader part-number series, but it does not define undocumented electrical differences.
Q: Can the MU-TMCN02 be assigned a specific communication protocol from the supplied specifications?
A: No. The available data describes the component as a control-network or communication interface component but does not specify a particular protocol.
Q: What should technicians verify before replacing this component?
A: Verify the system revision, mounting arrangement, connector or pinout, network interface, grounding method, and applicable power requirements against the Honeywell installation documentation.
Field Installation Guidelines
- Isolate the applicable control-system power and follow the site’s approved electrical isolation procedure before removing the assembly.
- Confirm the installed part number and hardware revision against the replacement MU-TMCN02, 561401846-200.
- Inspect connectors, mating contacts, mounting hardware, and cable jackets before installation.
- Route communication cables separately from high-voltage and high-current conductors where the system installation manual requires segregation.
- Maintain the specified cable bend radius and avoid excessive mechanical stress at connectors.
- Terminate cable shields according to the Honeywell system grounding specification. Do not introduce an unapproved shield-ground connection.
- Confirm connector orientation and pin assignment before energizing the system.
- After installation, verify network status, module diagnostics, and communication integrity from the applicable Honeywell engineering or maintenance interface.
- Record the installed part number and hardware revision for future maintenance and configuration control.
