Overview

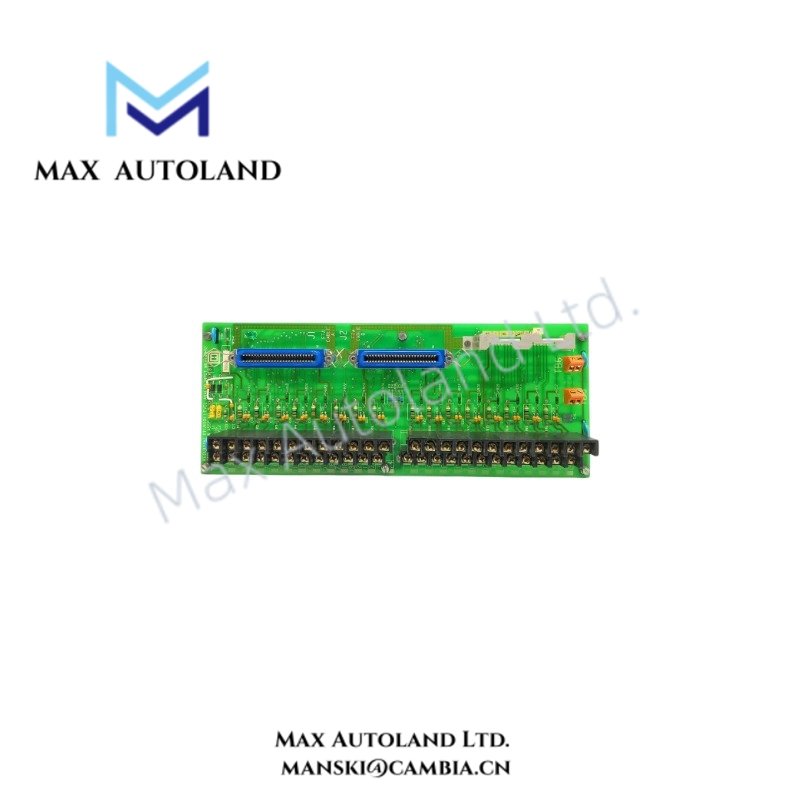

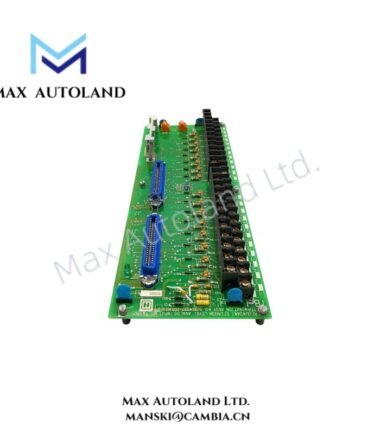

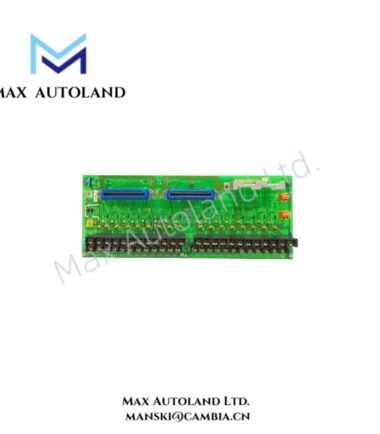

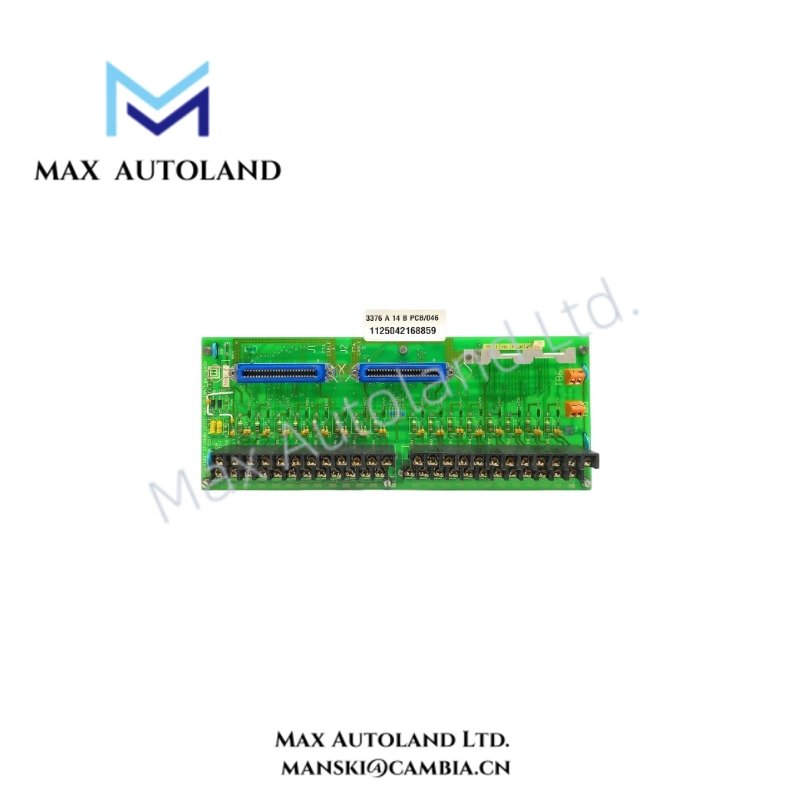

Configured for 24 VDC digital output signal distribution in Honeywell TDC 3000 and Experion PKS Process Manager architectures, the Honeywell MU-TDOY62 (51204156-125) (MU-TDOY62 Digital Output Field Termination Assembly) provides direct electrical interface execution between I/O cards and field control devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDOY62 (51204156-125) |
| Brand | Honeywell |
| Origin | USA |
| Module Type | Digital Output Field Termination Assembly (DO FTA) |
| System Compatibility | Honeywell TDC 3000 / Experion PKS PM and APM systems |
| Channel Capacity | 32 digital output channels |
| Signal Type | Discrete digital output |
| Operating Voltage | 24 VDC |
| Output Voltage Range | 18 VDC to 30 VDC |
| Output Configuration | Solid-state / relay-driven isolated output channels |
| Signal Isolation | Galvanic isolation between system interface and field wiring |
| Mounting Type | DIN rail / cabinet mounting |
| Operating Temp | 0 deg C to +60 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Relative Humidity | 10% to 90% RH, non-condensing |
| Power Consumption | Dependent on connected field loads and system configuration |
Honeywell DCS Digital Output Interface Characteristics
The MU-TDOY62 performs field-side switching and signal termination for discrete output circuits connected to Honeywell process control systems. It receives output commands from Process Manager I/O hardware and transfers electrical signals to external devices such as solenoid valves, actuators, interlocks, and status indicators.
Furthermore, the assembly supports channel-to-channel isolation to reduce interference between field circuits. This configuration follows Honeywell DCS signal handling practices, where separated output paths maintain electrical protection between control electronics and external loads.
The module architecture supports high I/O density scaling by providing 32 digital output channels within a single termination assembly. Therefore, it reduces cabinet wiring requirements while maintaining structured field termination access.
Frequently Asked Questions
Q: What type of field devices can connect to the MU-TDOY62?
A: The MU-TDOY62 connects to 24 VDC discrete field devices including solenoid valves, actuators, interlocks, and indicator circuits that match the configured output characteristics.
Q: Does the MU-TDOY62 provide electrical isolation for field signals?
A: Yes. The assembly provides isolated output paths between the DCS I/O interface and field wiring to limit electrical noise transfer and protect internal electronics.
Q: Can the MU-TDOY62 operate as a standalone I/O controller?
A: No. The MU-TDOY62 functions as a field termination assembly and requires connection to compatible Honeywell Process Manager I/O hardware for signal processing.
Field Installation Guidelines
- Install the MU-TDOY62 inside a suitable control cabinet with adequate ventilation and environmental protection.
- Verify terminal assignments before connecting field wiring to prevent incorrect digital output channel mapping.
- Separate signal wiring from high-voltage power cables to reduce electromagnetic interference.
- Use appropriate grounding methods for cabinet structures and cable shields according to site electrical standards.
- Confirm that connected field devices operate within the specified 24 VDC output range before commissioning.
- Inspect terminal connections during maintenance activities to ensure proper mechanical retention and electrical continuity.
