Overview

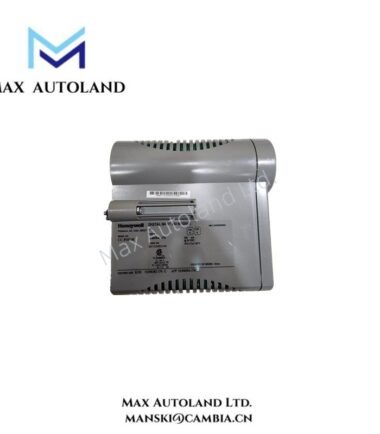

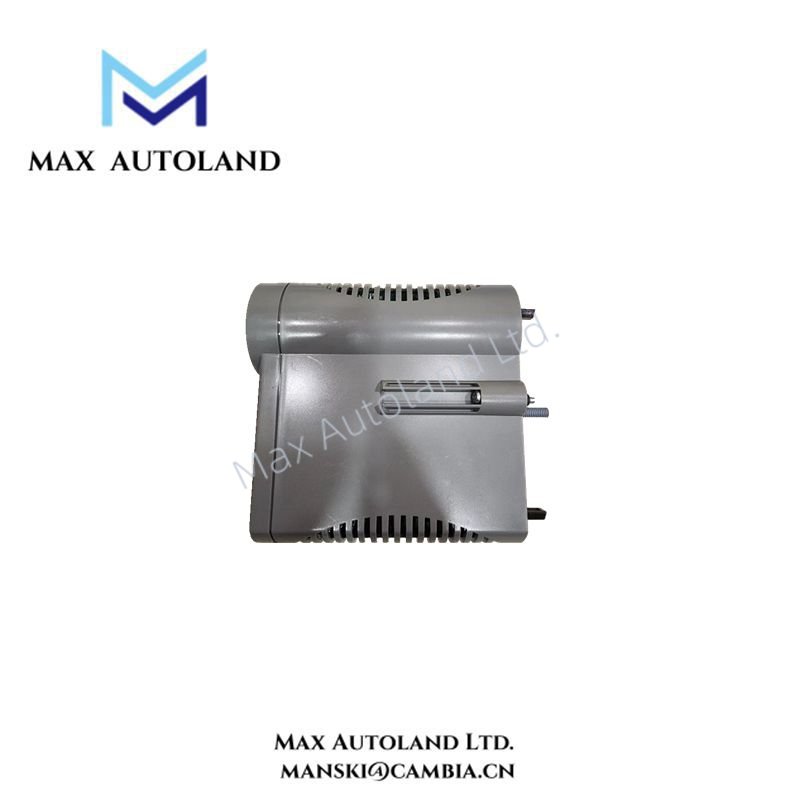

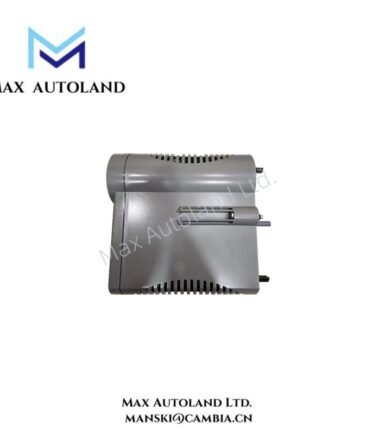

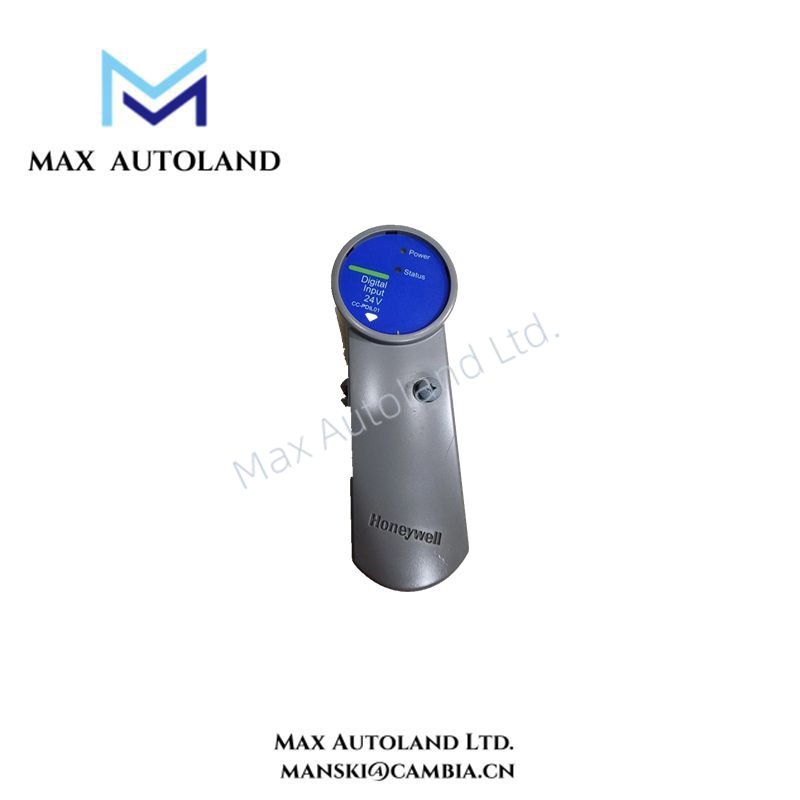

The Honeywell CC-PDIH01 is a 32-channel high voltage digital input module designed for the Experion PKS Series-C system. It accepts 120 VAC or 240 VAC signals, providing reliable digital input for various industrial applications. This module offers galvanic isolation of 1500 VAC RMS or ±1500 VDC, ensuring protection against high-voltage spikes and transients. With a response time of less than 5 milliseconds, it ensures quick and accurate signal processing.
The Digital Input High Voltage accepts 120VAC / 125VDC (CC-TDI110, 120), 120VAC (CC-TDI151 PROX) or 250VAC (CC-TDI2xx) signals as discrete inputs. The same IOM but different IOTA is used for both the 120VAC / 125VDC and 250VAC models. This reduces the number of spares required to support Series C system maintenance.
Specification
| Parameter | Specification | ||||||
| Input/Output Model | CC-PDIH01-Digital Input High Voltage | ||||||
| Input Channels | 32 | 32 | |||||
| Galvanic Isolation (field to logic common) | 1500 VAC RMS or±1500 VDC | 1500 VAC RMS or±1500 VDC | |||||
| lsolation Technique | Optical | Optical | |||||
| 120 VAC IOTA | 240 VACIOTA | ||||||
| IOTA Models | CC-TDI110 | Non Redundant | 9″ | CC-TDI220 | Non Redundant | 9″ | |
| CC-TDI120 | Redundant | 12″ | CC-TDI230 | Redundant | 12″ | ||
| CC-TDI151 | Non Redundant | 12″ | |||||
| IOTA Specific Specifications | CC-TDI151 | CC-TDI110&CC-TDI120 | CC-TDI220&CC-TDI230 | ||||
| Nominal Voltage | 120 VAC(PROX) | 120VAC | 125 VDC | 240VAC | |||
| Digital Input Pwr.Range | 90-132VAC RMS | 90-132V AC RMS | 100-138V DC | 180-264VAC RMS | |||
| Sense Current(ON condition) minimum | 7.5mA RMS at 90V RMS | 1.0mA | 1.2 mA | 1.11mA RMS | |||
| 10 mA RMSat 132V RMS | |||||||
| Sense Current(OFF condition) maximum | 2.0 mA RMS | 0.32 mA | 0.32 mA | 0.32 mA RMS | |||
| Pick Up Voltage (ON condition)minimum | 90 VAC RMS | 90 VAC RMS | 100 VDC | 180 VAC RMS | |||
| Drop Out Voltage (OFF condition)maximum | 20 VAC RMS | 25 VAC RMS | 25 VDC | 50 VAC RMS | |||
| Absolute Delay Across Input Filter and lsolation(Bounceless Input to logic level change) | 25ms maximum | 25 ms maximum | 10ms maximum | 25ms maximum | |||
| Frequency Range | 47-63Hz | 47-63Hz | NA | 47-63Hz | |||
Manual/Datasheet PDF
CC-PDIH01 Honeywell C300 Digital Input High Voltage datasheet
