Overview

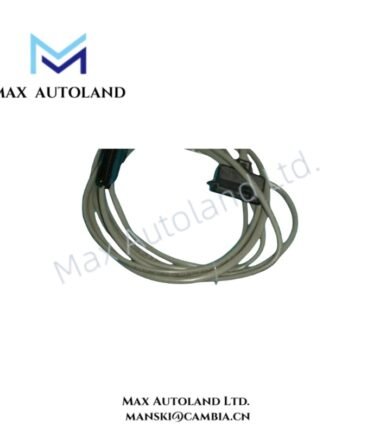

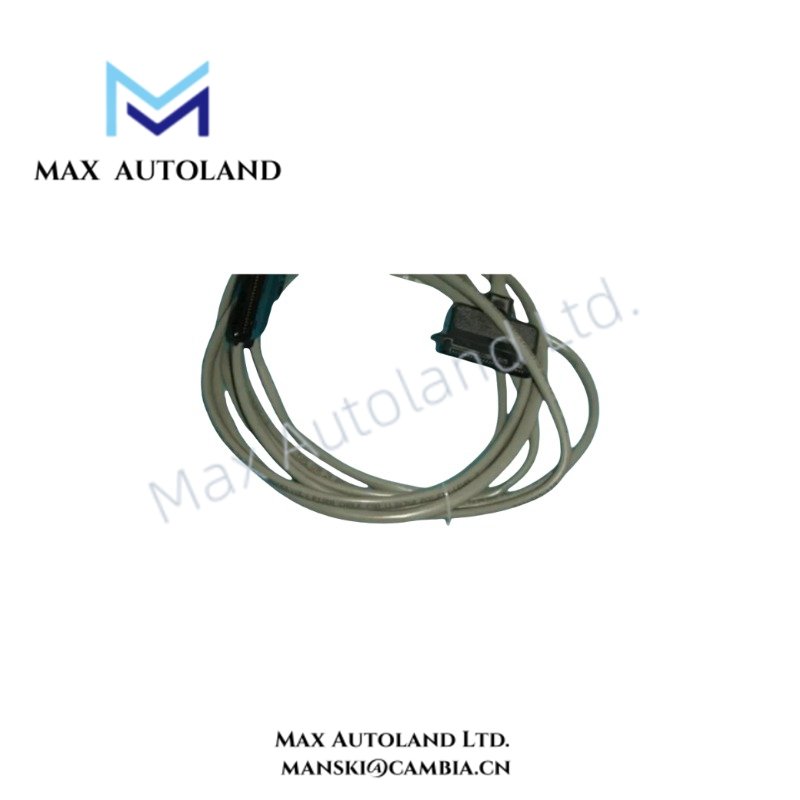

Configured for DC power distribution and grounding connections in Honeywell TDC 3000 and Experion PKS cabinet systems, the Honeywell MU-KGPR02 51109620-080, also cataloged as the MU-KGPR02 Power Interconnect Cable Assembly, provides direct electrical power routing between internal DCS hardware components.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-KGPR02 |
| Brand | Honeywell Process Solutions |
| Origin | United States |
| Product Type | Power Distribution Cable Assembly |
| Part Number | 51109620-080 |
| System Compatibility | Honeywell TDC 3000, PM, APM, HPM, Experion PKS platforms |
| Cable Function | DC power interconnection and cabinet grounding link |
| Cable Length | 0.8 Meters |
| Connector Type | Industrial power connectors / multi-pin terminal interfaces |
| Conductor Material | High-conductivity tinned copper |
| Insulation Material | Flame-retardant industrial PVC / XLPE |
| Shielding | Shielded cable construction for EMI reduction |
| Operating Temp | 0 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Cable assembly dimensions not specified |
| Power Consumption | Passive cable assembly; no internal power consumption |
DCS Power Integrity and Cabinet Interconnection
The Honeywell MU-KGPR02 functions as a passive electrical interface inside Honeywell process control cabinets. It transfers DC power between supply assemblies, rack components, and associated control hardware. Additionally, the cable design reduces electrical noise coupling through controlled conductor construction and shielding methods.
The cable assembly does not process digital signals or execute control functions. Instead, it maintains power continuity and grounding paths required by Honeywell TDC 3000 and Experion PKS hardware configurations. Therefore, correct cable routing and grounding installation directly affect cabinet electrical performance.
Frequently Asked Questions
Q: Does the MU-KGPR02 perform signal conversion or communication functions?
A: No. The MU-KGPR02 is a passive power interconnect cable assembly. It provides DC power distribution and grounding connections without signal processing or communication capability.
Q: Can the MU-KGPR02 replace other Honeywell cabinet power cables?
A: Replacement depends on the original cabinet configuration, connector arrangement, and cable specification. The installed system documentation should verify compatibility before replacement.
Q: Does the MU-KGPR02 require special grounding installation?
A: Yes. The cable shield and grounding connections should follow the cabinet grounding design. Installers should maintain proper separation between power wiring and sensitive signal wiring.
Field Installation Guidelines
- Verify the cabinet power architecture and connector assignment before installation.
- Install the MU-KGPR02 using the specified connectors and avoid excessive bending or mechanical stress on the cable assembly.
- Route the cable separately from high-noise switching circuits to reduce electromagnetic interference coupling.
- Maintain proper shield termination and grounding practices according to the Honeywell cabinet installation drawings.
- Inspect connector contacts for contamination, oxidation, or mechanical damage before system energization.
- Confirm DC power polarity and continuity before applying power to connected DCS hardware.
