Overview

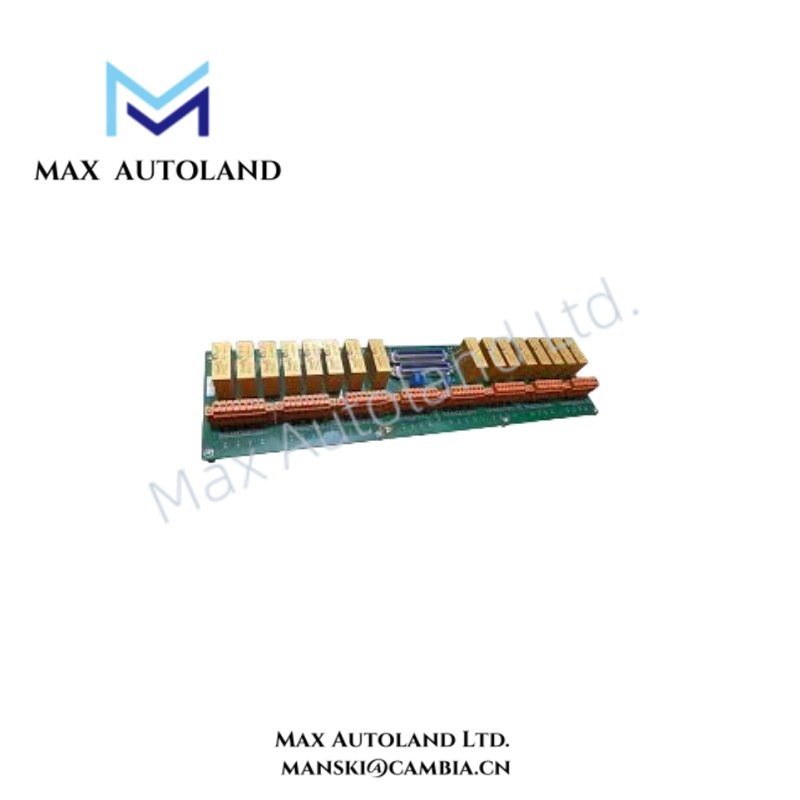

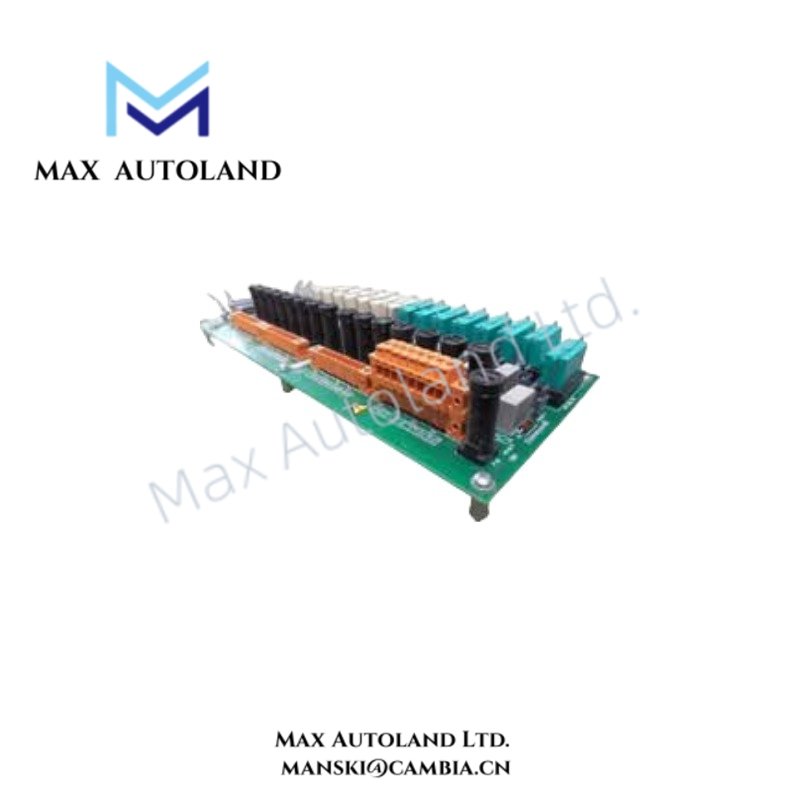

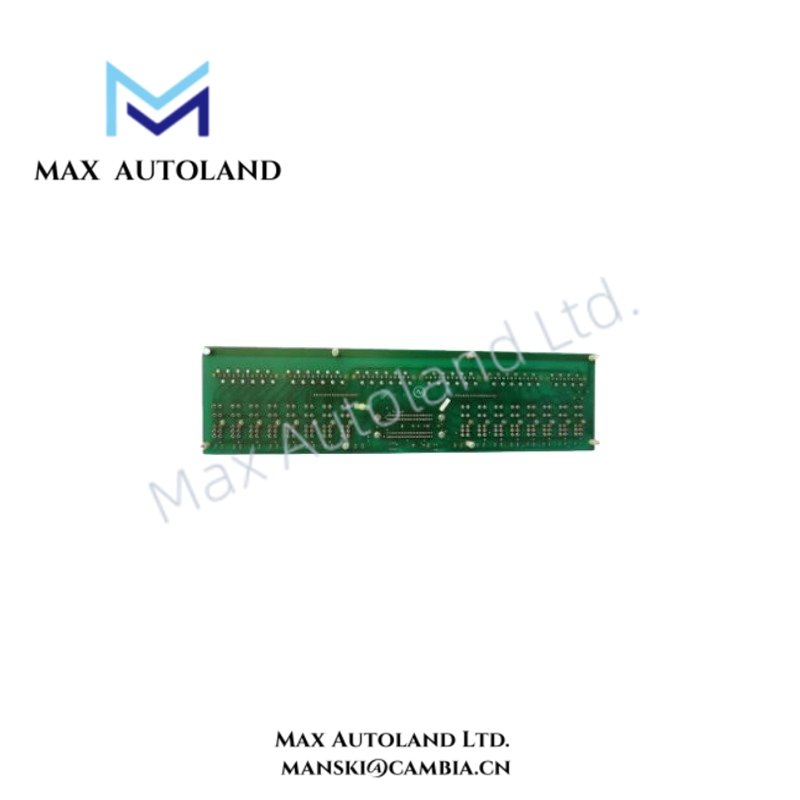

The Honeywell MU-TDOR12 (51304443-100), also cataloged as the MU-TDOR12 Digital Output Field Termination Assembly, provides physical termination and electrical interface functions for digital output field circuits within Honeywell TDC 3000 and Process Manager control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDOR12 (51304443-100) |
| Brand | Honeywell |
| Origin | USA |
| Module Type | Digital Output Field Termination Assembly (FTA) |
| System Compatibility | Honeywell TDC 3000, PM, APM, HPM, Experion PKS |
| Function | Digital output field signal termination and distribution |
| Output Type | Relay / Digital output interface |
| Channel Count | 16 channels |
| Field Voltage Compatibility | 120 VAC / 24 VDC depending on field circuit configuration |
| Connection Type | Screw terminal field wiring interface |
| Mounting Type | DIN rail or FTA mounting channel installation |
| Coating | Standard uncoated construction |
| Power Consumption | Passive termination assembly; no independent power consumption specified |
Process Control Signal Interface Characteristics
The Honeywell MU-TDOR12 interfaces digital output I/O processors with external field devices through terminated wiring connections. It separates field wiring from the control electronics and provides signal routing for actuators, relays, solenoids, and alarm circuits.
The assembly supports Honeywell DCS architectures where digital output channels require organized field termination. In addition, the FTA design allows maintenance personnel to access field wiring without modifying the primary controller hardware.
For Honeywell process control applications, the termination structure maintains channel-to-channel isolation requirements between DCS output electronics and field circuits. Therefore, the assembly reduces wiring interference during digital switching operations and supports stable field signal transmission.
Frequently Asked Questions
Q: Is the MU-TDOR12 a standalone digital output controller module?
A: No. The MU-TDOR12 is a Digital Output Field Termination Assembly. It provides field wiring termination and interface functions but does not execute control logic.
Q: Can the MU-TDOR12 operate with non-Honeywell controllers?
A: The assembly is designed for Honeywell TDC 3000, PM, APM, HPM, and related control system architectures. Compatibility depends on the connected I/O processor and field wiring configuration.
Q: Does the MU-TDOR12 require separate field power input?
A: The assembly does not operate as an independent power supply module. Field circuit voltage depends on the connected digital output channel design and external field equipment requirements.
Field Installation Guidelines
Install the MU-TDOR12 on the specified Honeywell FTA mounting structure and verify mechanical fixing before field wiring connection.
Connect field conductors according to the approved control system drawings. Maintain separation between low-level signal wiring and high-voltage field circuits to reduce electrical interference.
Terminate cable shields according to the site grounding standard. Avoid unnecessary shield loops and ensure grounding points remain consistent with the DCS cabinet design.
Verify terminal identification, channel assignment, and output polarity before energizing connected field devices. Check wiring continuity and insulation condition before commissioning.
