Overview

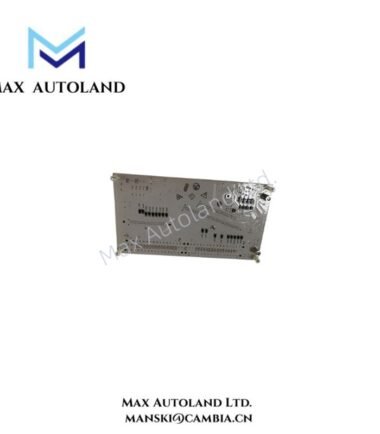

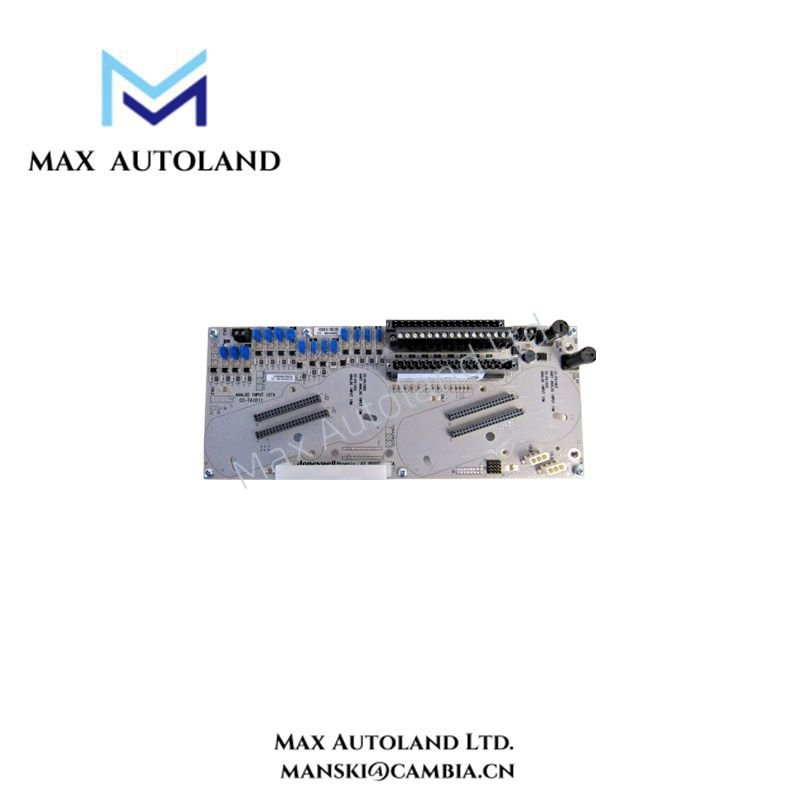

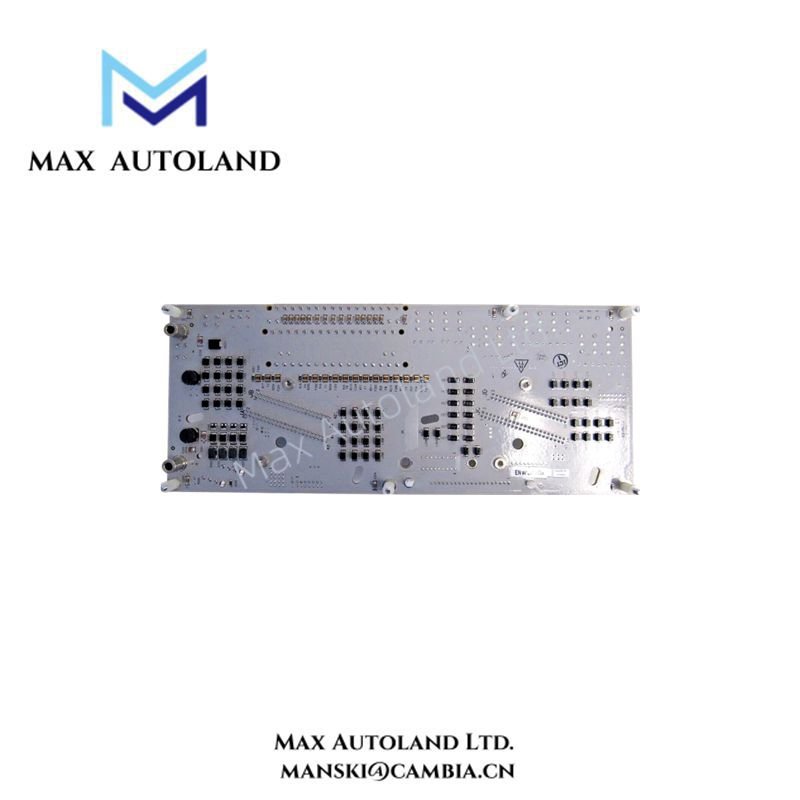

The Honeywell CC-TAID11 is a 16-channel differential analog input module designed for the Experion® PKS Series C system. This red IOTA module enhances analog signal acquisition with high accuracy and reliable channel isolation. It supports multiple voltage and current ranges, ensuring flexibility for various sensors and industrial applications.
Each relay delivers a dry contact for isolated low-voltage/low-current or high-voltage/high-current discrete output applications. Users configure the relay output as Form A or Form B via jumpers. The Relay IOTA connects with the Digital Output 24V (DO24V) IOM through a dedicated IOTA to support Relay functionality. The module fully incorporates all characteristics of the DO24V IOM while enhancing output flexibility.The Analog Input Module accepts high level current or voltage inputs from transmitters and sensing devices.
Specification
| Specification | Details |
|---|---|
| Model | CC-TAID11 |
| Type | 16-Channel Differential Analog Input Module – Red IOTA |
| Compatibility | Experion PKS Series C |
| Input Ranges | 0–10 V, 4–20 mA, 0–5 V, 1–5 V |
| Input Impedance | High impedance |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 Vrms |
| Sampling Rate | User-configurable |
| Power Supply | 24 VDC |
| Mounting Type | DIN rail |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions (L x W x H) | 305 mm x 90 mm x 30 mm |
| Weight | Approximately 0.5 kg |
Manual/Datasheet PDF
CC-TAID11 Honeywell C300 AI IOTA Red – 16 Channel datasheet
