Overview

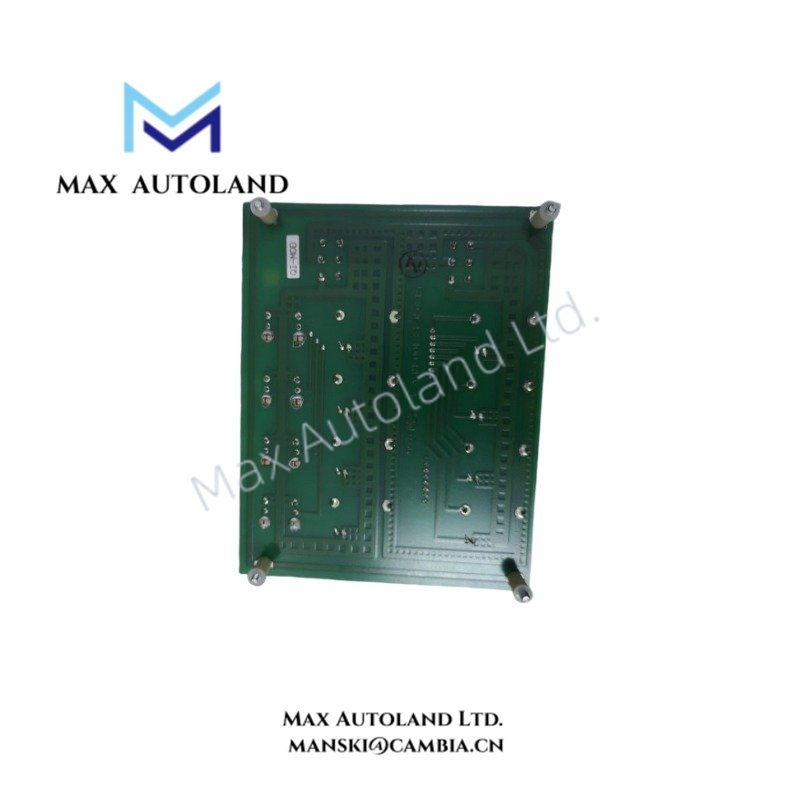

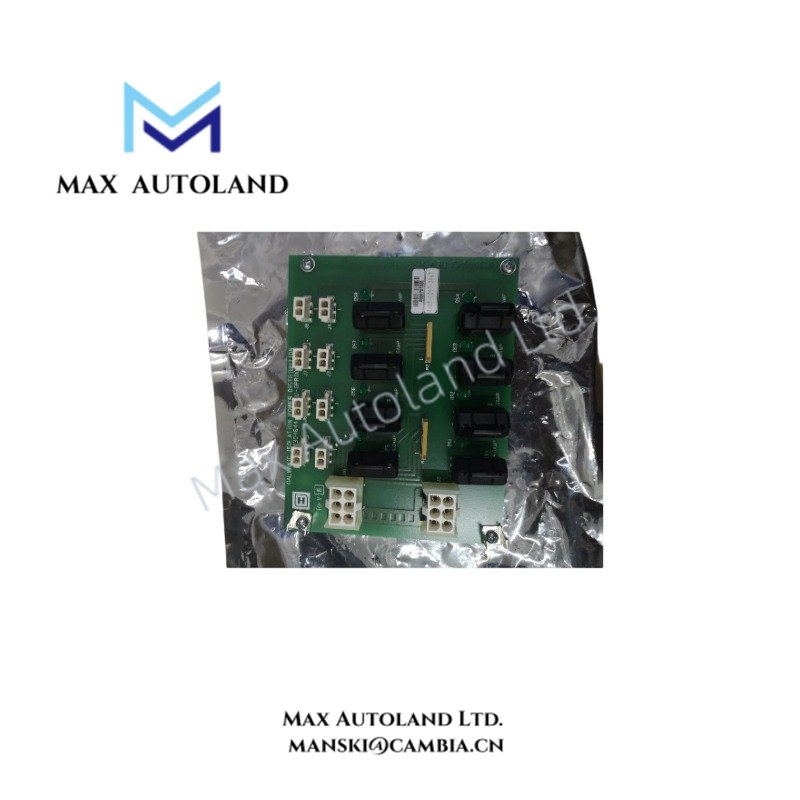

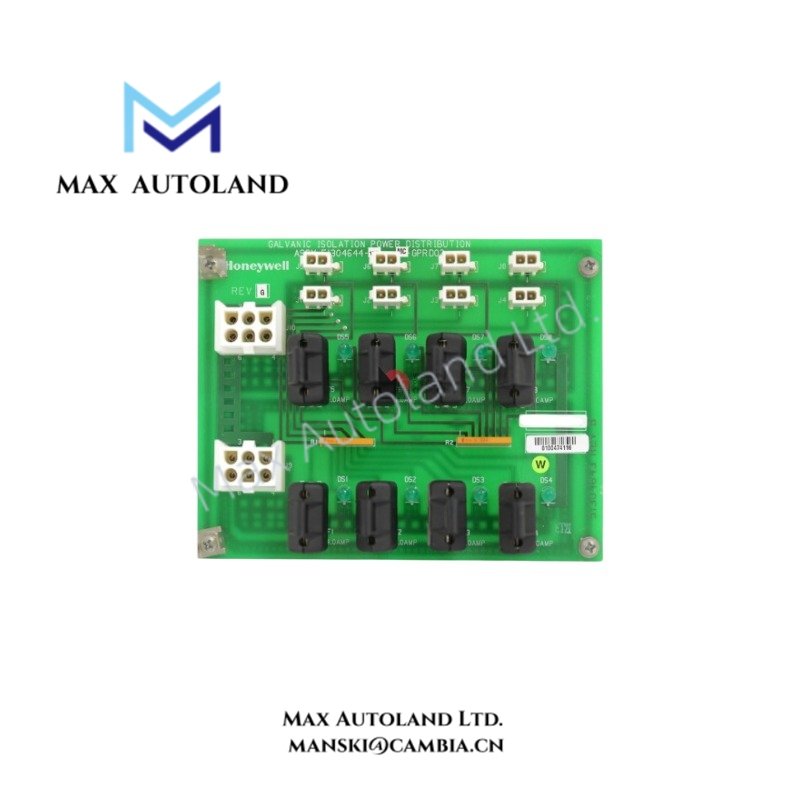

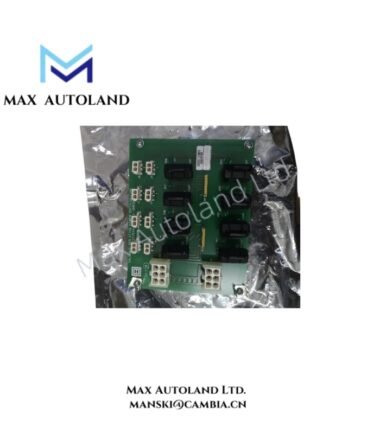

Configured for galvanically isolated power distribution in Honeywell Experion control hardware, the Honeywell MU-GPRD02 (51304644-125) provides isolated power routing between system-side and field-side circuits. Honeywell documentation identifies 51304644-125 as the CE-compliant part number for the MU-GPRD02 Power Distribution Assembly. (device.report)
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-GPRD02 |
| Brand | Honeywell |
| Part Number | 51304644-125 |
| Product Type | Galvanic Isolation Power Distribution Assembly |
| System Compatibility | Honeywell Experion control hardware |
| Configuration | Galvanically isolated power distribution |
| Compliance Variant | CE compliant |
| Origin | USA |
| Weight | Approximately 0.4 kg |
| Dimensions | Approximately 31.3 cm x 27.8 cm x 3 cm |
The Honeywell Experion Control Hardware Planning Guide lists MU-GPRD02 as a Power Distribution Assembly and identifies 51304644-125 as its CE-compliant part number. The same documentation distinguishes it from the conformally coated MC-GPRD02 variant. (device.report)
Galvanic Isolation and Power Distribution
The MU-GPRD02 performs power distribution with galvanic isolation between designated electrical circuits. Therefore, it separates circuit reference potentials and limits direct conductive paths between isolated sections. This configuration can reduce the propagation of ground-loop currents and electrical interference through the power distribution path.
The assembly belongs to the Honeywell FTA hardware family used with C200 and PM I/O hardware configurations. Because the documented function is power distribution rather than analog signal conversion, 4-20 mA HART processing and cold junction compensation should not be assigned to this assembly. (Manuals+)
Frequently Asked Questions
Q: Is 51304644-125 the CE-compliant version of MU-GPRD02?
A: Yes. Honeywell planning documentation lists MU-GPRD02 with 51304644-100 as the non-CE part number and 51304644-125 as the CE-compliant part number. (device.report)
Q: Is MU-GPRD02 an analog input or output module?
A: No. Honeywell classifies MU-GPRD02 as a Power Distribution Assembly rather than an analog or digital I/O channel module. (device.report)
Q: Does the documented specification identify a channel count for MU-GPRD02?
A: No. The Honeywell planning guide shows dashes for terminal type, channels, and mounting size for this Power Distribution Assembly. (Manuals+)
Field Installation Guidelines
Install the assembly only in the Honeywell hardware configuration specified for the corresponding control system. Before installation, isolate applicable power sources and verify the absence of hazardous voltage.
Inspect the assembly and mating connectors for mechanical damage or contamination. Align connectors correctly and avoid applying lateral force to connector pins. Secure the assembly using the designated mechanical hardware.
Route power wiring separately from high-level switching and high-noise conductors where the cabinet design permits. Maintain the specified Honeywell wiring arrangement for isolated circuits. Terminate shields and protective earth conductors according to the system grounding design rather than creating unintended connections between isolated circuit references.
After installation, verify connector seating, terminal integrity, protective bonding, and correct power distribution before energizing the cabinet. Confirm system diagnostic indications after power-up and investigate abnormal status indications before connecting downstream loads.
