Overview

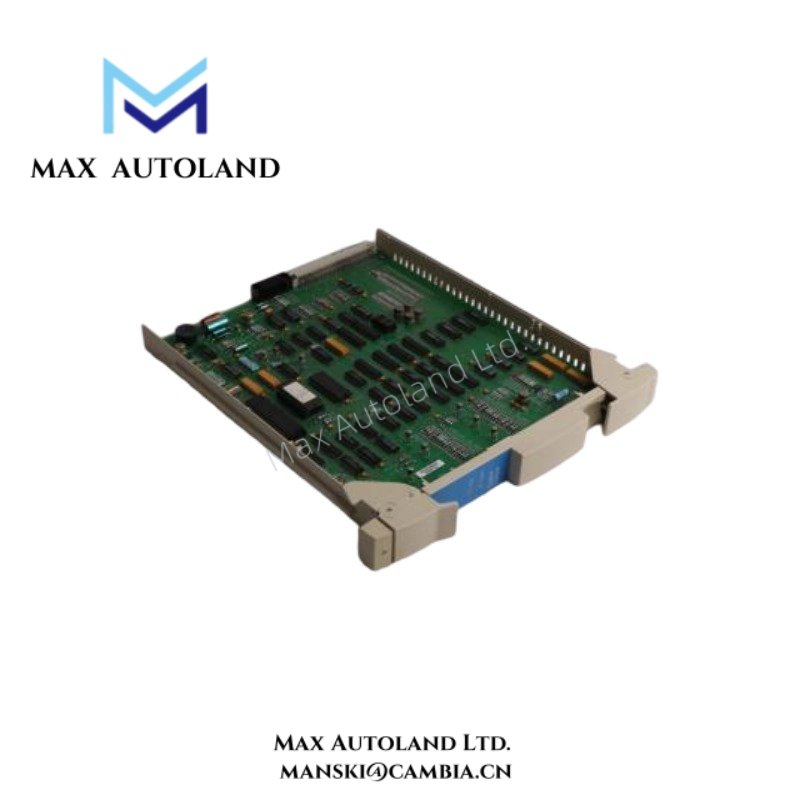

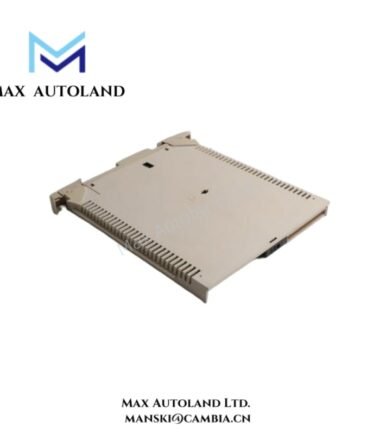

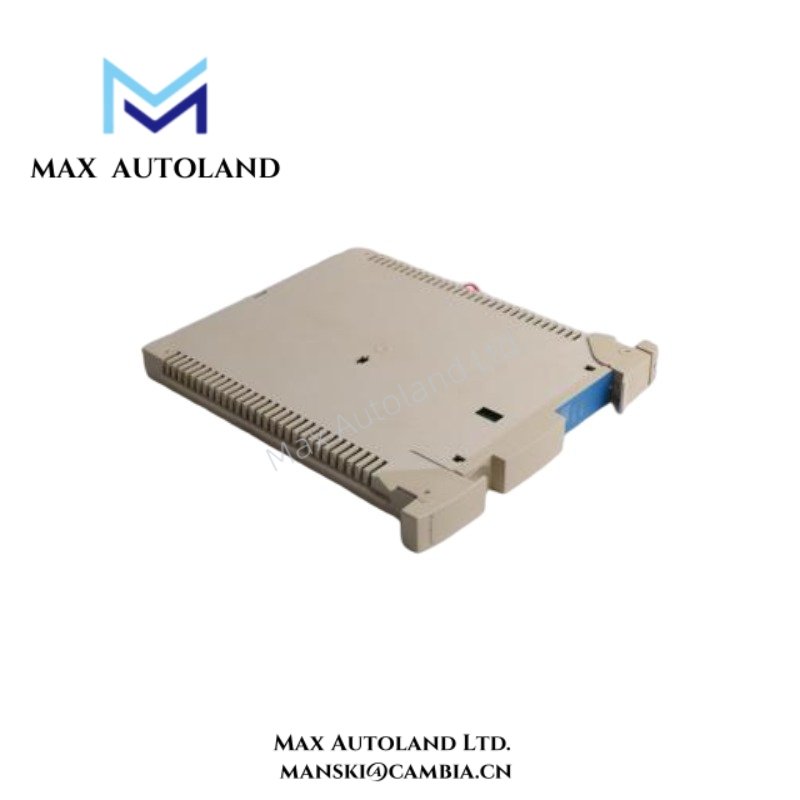

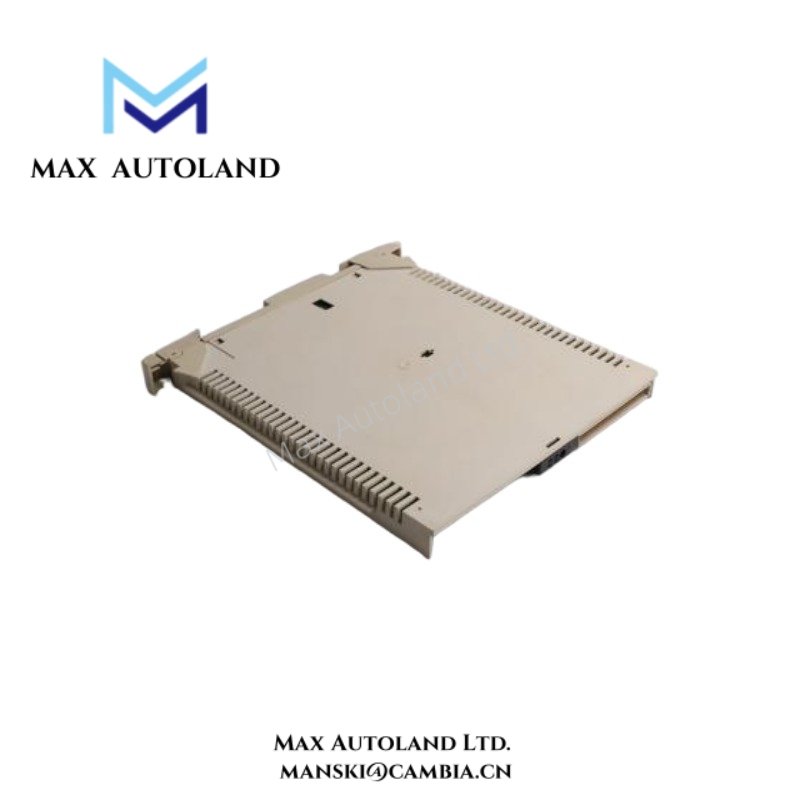

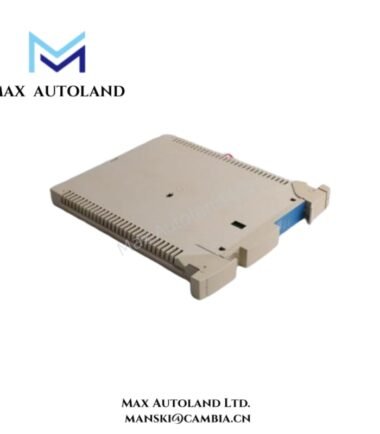

MU-PDOX02 51304487-100 delivers reliable digital output processing for Honeywell industrial automation and control systems.
This module belongs to the Honeywell UCN series, so it ensures stable communication within distributed control architectures.
Moreover, MU-PDOX02 51304487-100 manages digital output signals efficiently, which improves system response and process coordination.
It maintains stable operation performance, while it supports continuous industrial control in demanding environments.
Key Features and Functional Benefits
MU-PDOX02 51304487-100 supports multiple digital output channels, so it enables flexible control of industrial field devices.
Additionally, the module provides fast switching performance, which improves real-time execution of control commands.
It uses advanced isolation circuitry, therefore it protects the control system from electrical noise and voltage disturbances.
Furthermore, the compact I/O processor design simplifies installation, while it reduces cabinet space requirements.
Engineers benefit from stable output reliability, which enhances automation efficiency and system safety.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MU-PDOX02 51304487-100 |
| Manufacturer | Honeywell |
| Product Type | Digital Output Processor / IOP Module |
| Series | Honeywell UCN (Universal Control Network) |
| Output Channels | Multiple digital output points (system configurable design) |
| Output Type | Relay or transistor output depending on system configuration |
| Output Voltage | 24 V DC nominal control output |
| Output Current | Approx. 0.5–2 A per channel depending on load |
| Switching Speed | ≤10 ms fast response switching performance |
| Signal Processing | High-speed digital output processing with control logic support |
| Isolation Type | Channel-to-channel and system electrical isolation |
| Isolation Voltage | Up to 500 V AC protection level |
| Power Supply | 24 V DC via system backplane |
| Power Consumption | Approx. 6–12 W under normal operating conditions |
| Interface Type | Backplane communication interface for Honeywell systems |
| Connector Type | Industrial edge connector for secure installation |
| Dimensions (W×H×D) | Approx. 220 × 150 × 50 mm compact module design |
| Weight | Approx. 1.0–1.5 kg for stable rack mounting |
| Operating Temperature | 0°C to 60°C industrial environment range |
| Storage Temperature | -40°C to 85°C safe storage conditions |
| Humidity Range | 5% to 95% non-condensing environment |
| Mounting Method | Rack-mounted installation in Honeywell chassis |
| Protection Features | Overcurrent protection and fault detection system |
FAQ
Yes, MU-PDOX02 51304487-100 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MU-PDOX02 51304487-100 in stock, so we can process orders quickly.
Q3: How fast can you ship the product?
We ship MU-PDOX02 51304487-100 within 3 days to 2 weeks, depending on order size.
Q4: Which logistics services do you use?
We commonly use DHL, so delivery remains fast, safe, and fully trackable.
Q5: What should I do if there is a quality issue?
We support returns for MU-PDOX02 51304487-100 within 30 days if any quality issue occurs.
Q6: What is the main function of this module?
MU-PDOX02 51304487-100 processes and controls digital output signals for Honeywell industrial automation systems.
