Overview

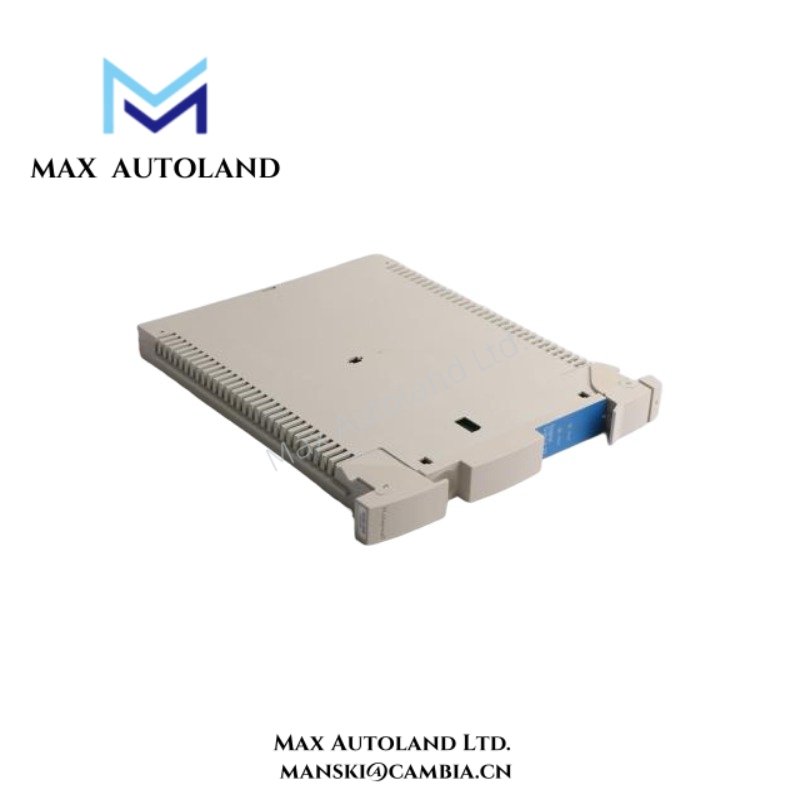

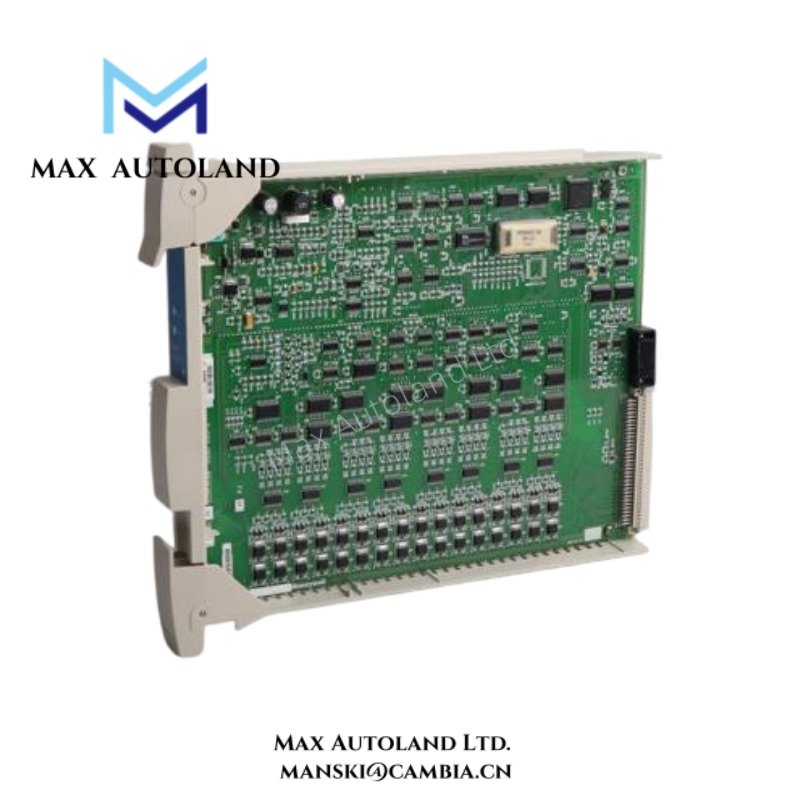

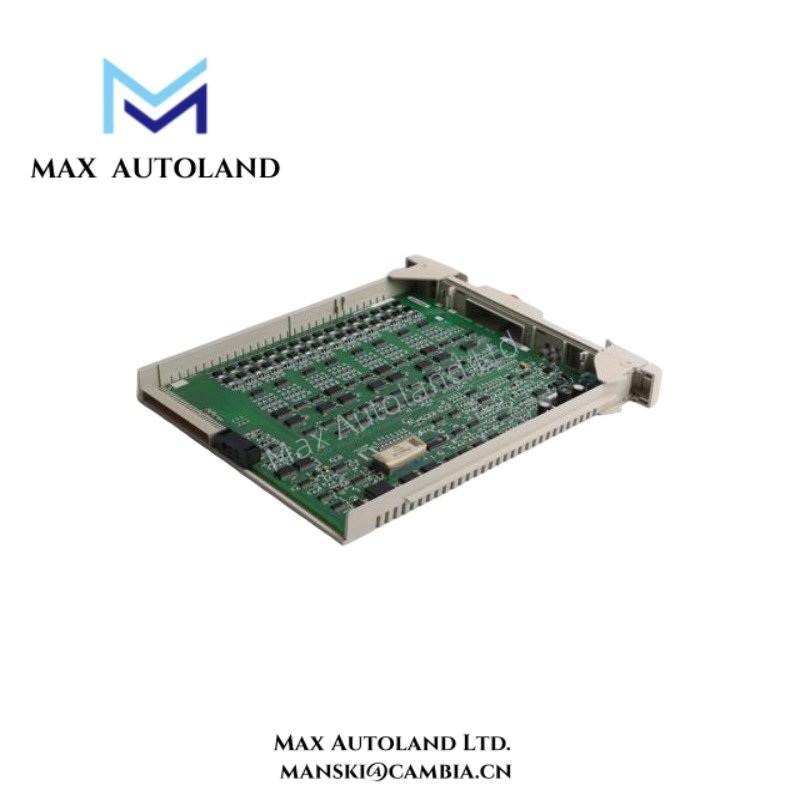

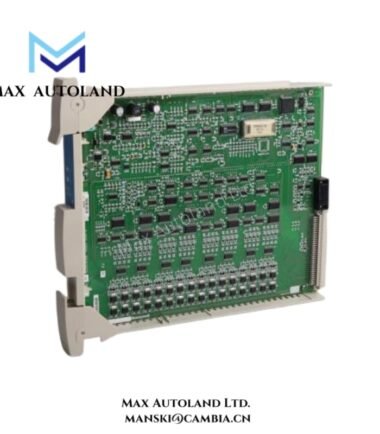

MC-PDOY22 80363975-150 delivers high-density digital output control for Honeywell industrial automation and DCS systems.
This module belongs to the Honeywell process control platform, so it ensures stable integration with distributed control networks.
Moreover, MC-PDOY22 80363975-150 provides 32-point output processing, which supports complex multi-device control applications.
It maintains reliable switching performance, while it ensures consistent operation under continuous industrial loads.
Key Features and Functional Benefits
MC-PDOY22 80363975-150 supports 32 independent digital output channels, so it enables flexible and large-scale control configurations.
Additionally, the module delivers fast switching response, which improves real-time control of industrial equipment.
It uses advanced isolation technology, therefore it protects control systems from electrical noise and field interference.
Furthermore, the compact processor design simplifies cabinet installation, while it reduces overall system footprint.
Engineers benefit from stable output performance, which enhances operational safety and process reliability.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MC-PDOY22 80363975-150 |
| Manufacturer | Honeywell |
| Product Type | Digital Output Processor Module |
| Series | Honeywell DCS / UCN Series |
| Output Channels | 32 digital output points |
| Output Type | Relay or transistor output (system dependent configuration) |
| Output Voltage | 24 V DC nominal control output |
| Output Current | Approx. 0.5–2 A per channel depending on configuration |
| Switching Speed | ≤10 ms fast response switching |
| Signal Isolation | Channel-to-channel and system isolation protection |
| Isolation Voltage | Up to 500 V AC electrical isolation |
| Power Supply | 24 V DC system backplane supply |
| Power Consumption | Approx. 8–15 W depending on load |
| Interface Type | Backplane communication interface |
| Connector Type | Industrial edge connector for secure mounting |
| Dimensions (W×H×D) | Approx. 220 × 160 × 50 mm compact structure |
| Weight | Approx. 1.2–1.6 kg for stable rack installation |
| Operating Temperature | 0°C to 60°C industrial environment support |
| Storage Temperature | -40°C to 85°C for safe transport |
| Humidity Range | 5% to 95% non-condensing conditions |
| Mounting Method | Rack-mounted installation in Honeywell chassis |
| Protection Features | Overcurrent protection and fault detection capability |
FAQ
Q1: Is this product brand new and original?
Yes, MC-PDOY22 80363975-150 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MC-PDOY22 80363975-150 in stock, so we can process orders quickly.
Q3: How fast can you ship the product?
We ship MC-PDOY22 80363975-150 within 3 days to 2 weeks, depending on order quantity.
Q4: Which logistics services do you use?
We commonly use DHL, so delivery remains fast, safe, and fully trackable.
Q5: What should I do if there is a quality issue?
We support returns for MC-PDOY22 80363975-150 within 30 days if any quality issue occurs.
Q6: What is the main function of this module?
MC-PDOY22 80363975-150 provides 32-point digital output control for Honeywell industrial automation systems.
