Overview

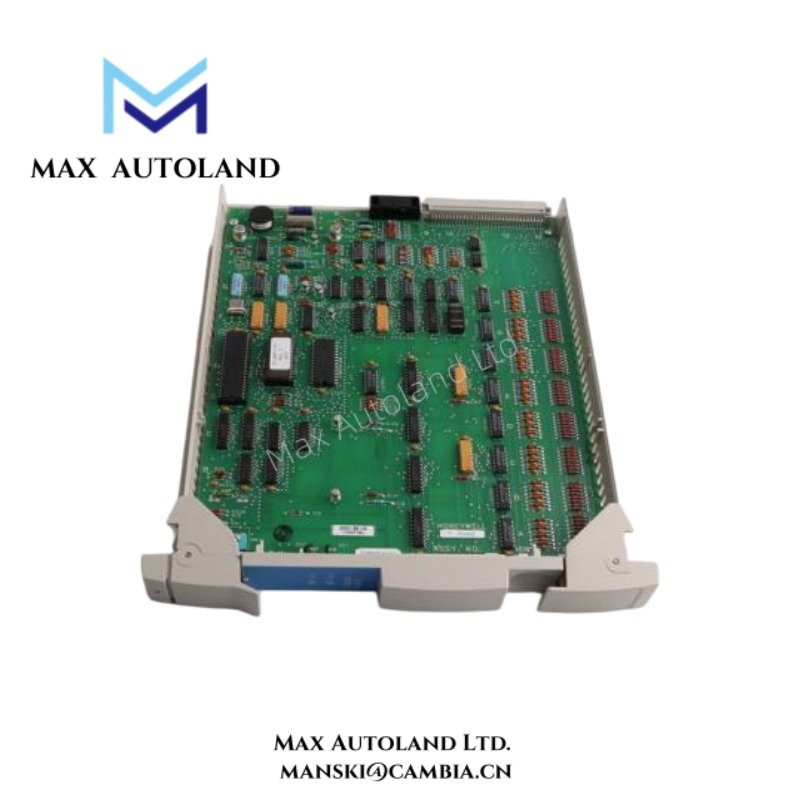

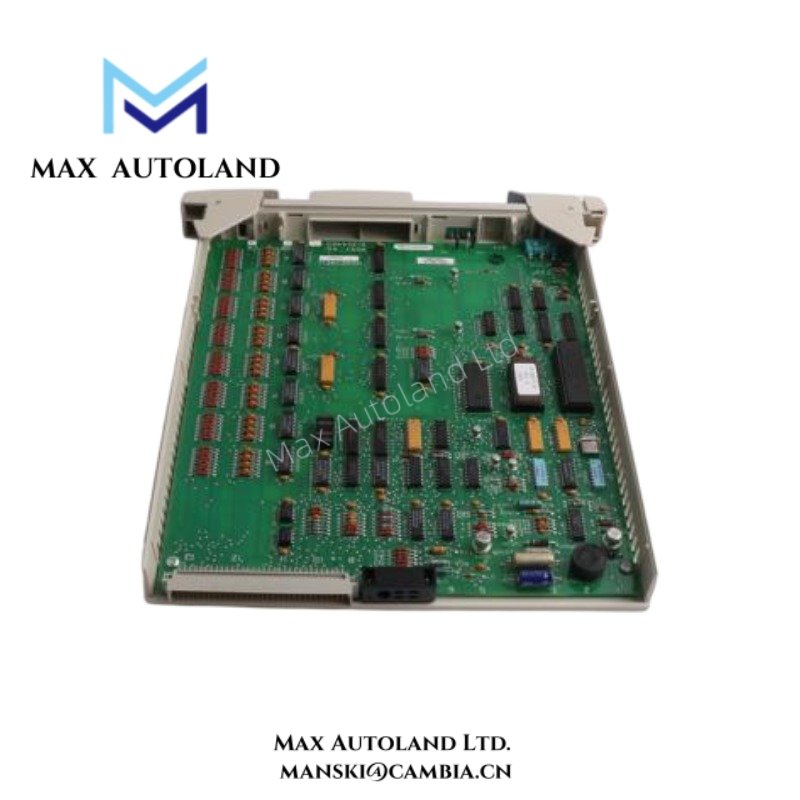

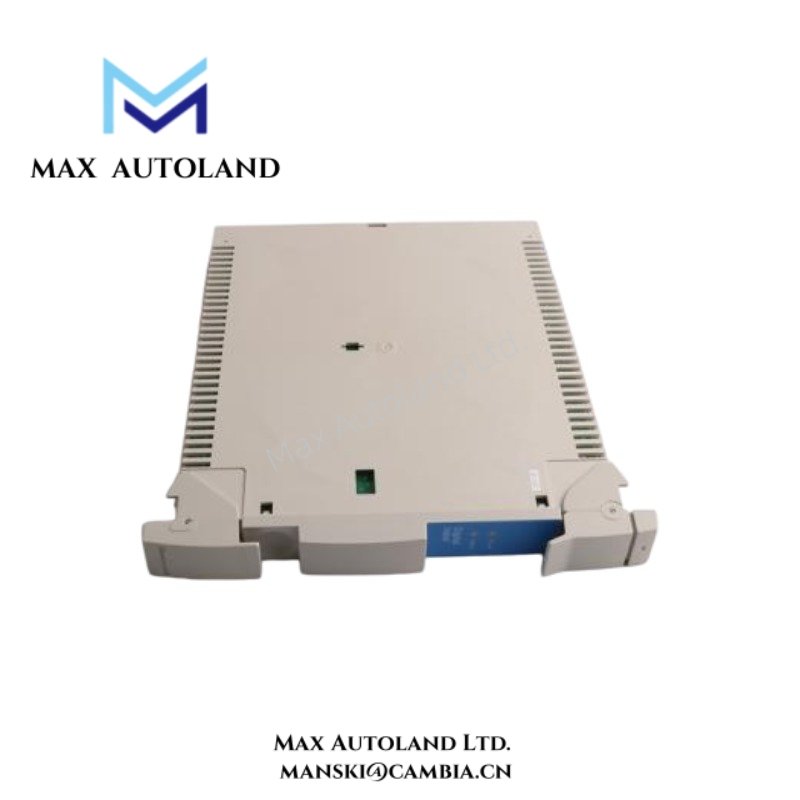

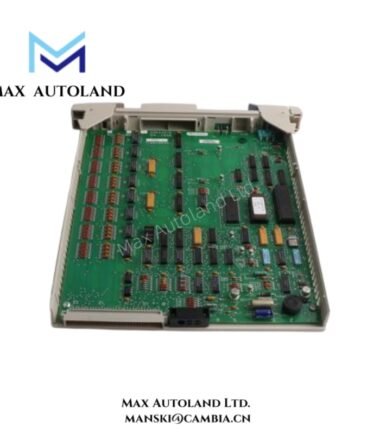

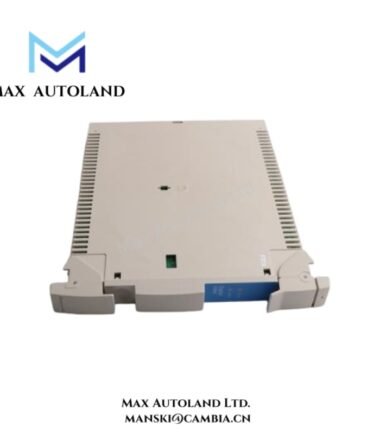

MU-PDIX02 51304485-100 delivers reliable digital input processing for Honeywell industrial automation and control systems.
This module belongs to the Honeywell UCN and DCS architecture, so it ensures stable integration across distributed control networks.
Moreover, MU-PDIX02 51304485-100 processes multiple field signals efficiently, which improves monitoring accuracy and system responsiveness.
It maintains stable input performance, while it supports continuous operation in demanding industrial environments.
Key Features and Functional Benefits
MU-PDIX02 51304485-100 supports multiple digital input channels, so it enables flexible field device monitoring and control.
Additionally, the module provides fast signal acquisition, which improves real-time system response and automation accuracy.
It uses advanced electrical isolation, therefore it protects control systems from noise and voltage disturbances.
Furthermore, the compact processor design simplifies installation, while it reduces cabinet space requirements.
Engineers benefit from stable signal processing, which enhances system reliability and operational safety.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MU-PDIX02 51304485-100 |
| Manufacturer | Honeywell |
| Product Type | Digital Input Processor Module |
| Series | Honeywell UCN / DCS Series |
| Input Channels | Multiple digital input channels (system configurable) |
| Input Voltage | 24 V DC nominal industrial input |
| Input Type | Dry contact and voltage input compatibility |
| Input Current | Approx. 5–8 mA per channel |
| Signal Processing | High-speed digital input acquisition and filtering |
| Response Time | ≤5 ms fast input detection |
| Isolation Type | Channel-to-channel and system electrical isolation |
| Isolation Voltage | Up to 500 V AC protection level |
| Power Supply | 24 V DC via system backplane |
| Power Consumption | Approx. 6–10 W under normal operation |
| Interface Type | Backplane communication interface |
| Connector Type | Industrial edge connector for secure mounting |
| Dimensions (W×H×D) | Approx. 220 × 150 × 50 mm compact design |
| Weight | Approx. 1.0–1.4 kg for stable installation |
| Operating Temperature | 0°C to 60°C industrial environment range |
| Storage Temperature | -40°C to 85°C safe storage conditions |
| Humidity Range | 5% to 95% non-condensing conditions |
| Mounting Method | Rack-mounted installation in Honeywell chassis |
| Protection Features | Surge protection and signal fault detection |
FAQ
Yes, MU-PDIX02 51304485-100 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MU-PDIX02 51304485-100 in stock, so we can process orders quickly.
Q3: How fast can you ship the product?
We ship MU-PDIX02 51304485-100 within 3 days to 2 weeks, depending on order quantity.
Q4: Which logistics services do you use?
We commonly use DHL, so delivery remains fast, safe, and fully trackable.
Q5: What should I do if there is a quality issue?
We support returns for MU-PDIX02 51304485-100 within 30 days if any quality issue occurs.
Q6: What is the main function of this module?
MU-PDIX02 51304485-100 processes digital input signals for Honeywell DCS systems with high-speed and reliable performance.
