Overview

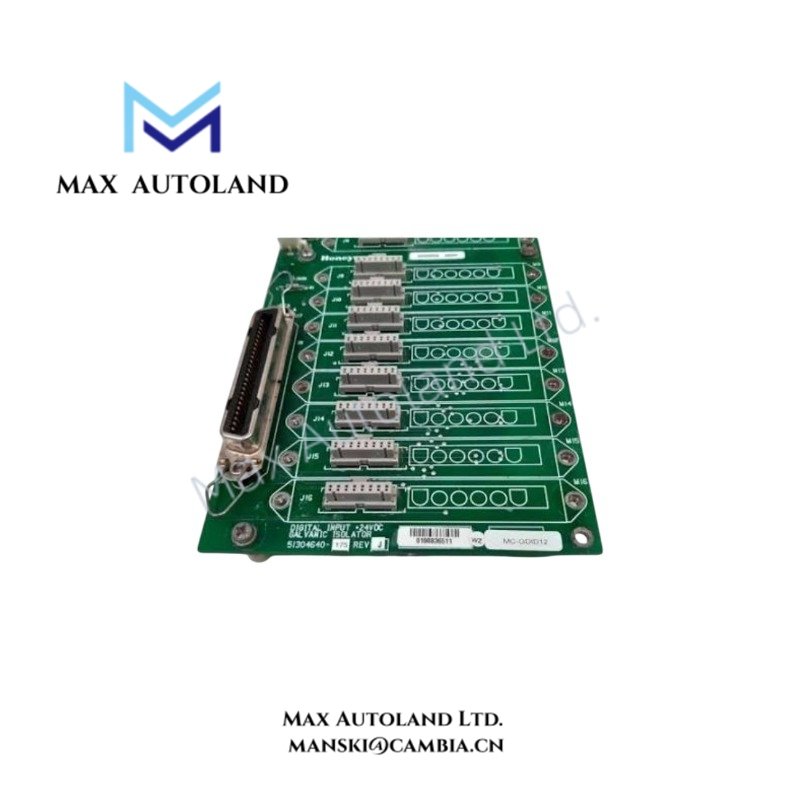

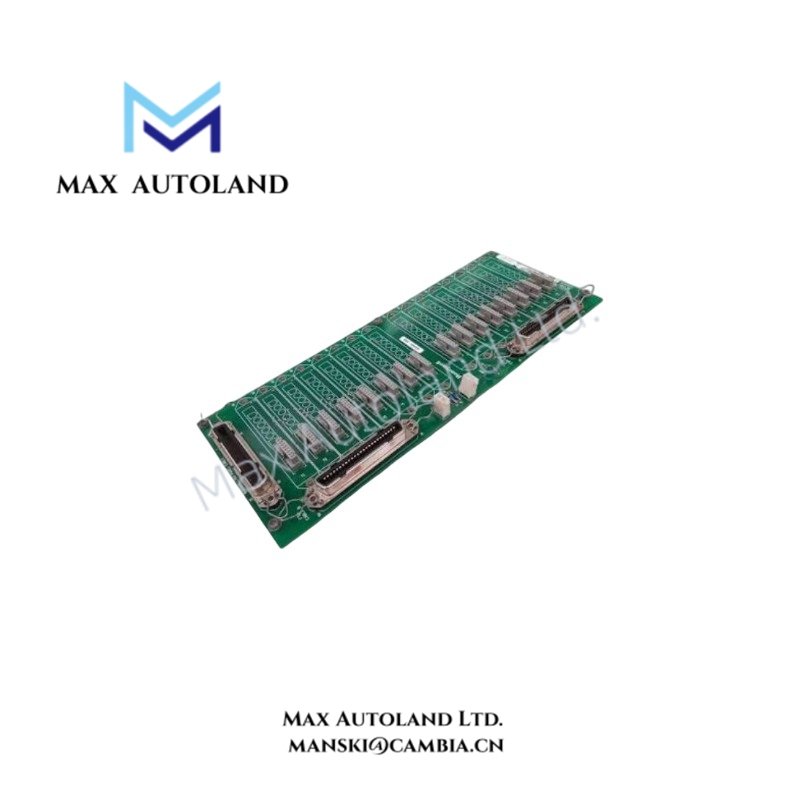

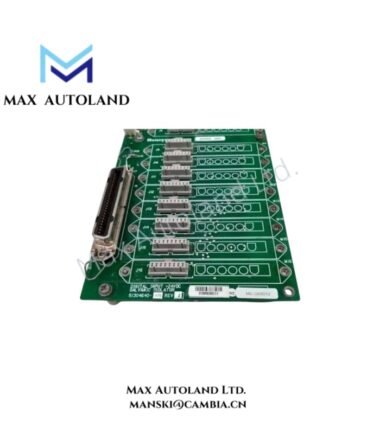

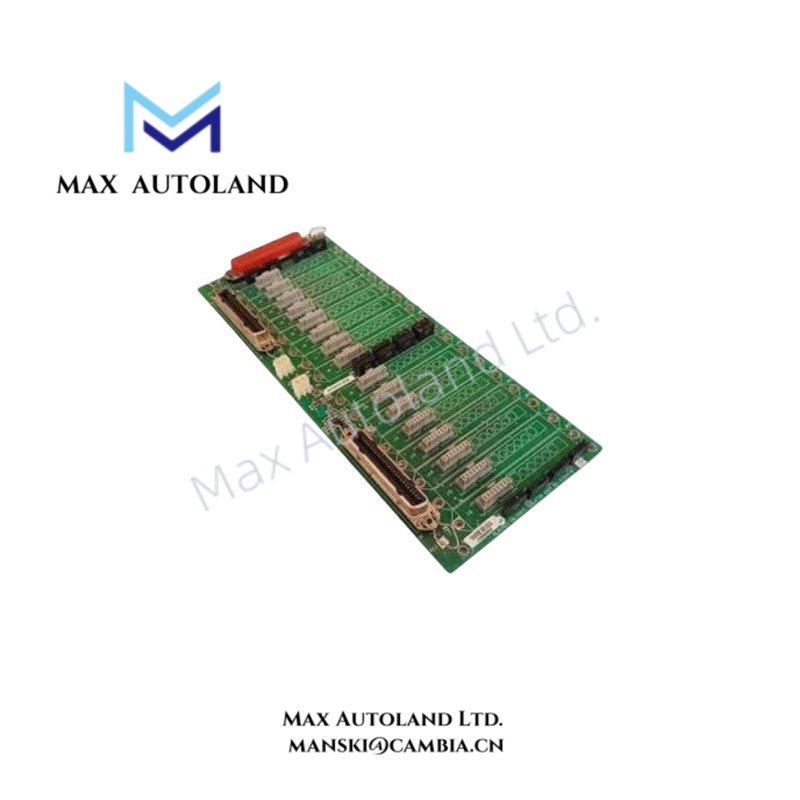

Configured for 24 VDC discrete signal termination in Honeywell process control I/O systems, the Honeywell MU-GDID12 51304640-175 (MU-GDID12 Digital Input FTA) provides 32-channel field signal interfacing through compression terminals with galvanic isolation and redundancy support.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-GDID12 |
| Part Number | 51304640-175 |
| Brand | Honeywell |
| Product Type | Digital Input Field Termination Assembly (FTA) |
| Function | 24 VDC Digital Input |
| Input Channels | 32 |
| Input Signal | Discrete / Digital |
| Nominal Input Voltage | 24 VDC |
| Terminal Type | Compression terminals |
| Galvanic Isolation | Yes |
| Redundancy Support | Yes |
| Maximum Open-Circuit Voltage | 10.5 V |
| Maximum Short-Circuit Current | 14 mA |
| Minimum Source Resistance | 800 ohms |
| Maximum Applied Voltage | 250 Vrms |
| Line Fault Detection | Supported through associated I/O architecture |
| Compliance | CE compliant |
| Conformal Coating | Yes |
| Recommended Isolation Module | 51191699-100 / MTL4016 |
| Origin | USA |
| Dimensions | Approximately 307 mm / 12.1 inches |
Honeywell Process I/O Signal Isolation
The MU-GDID12 terminates 24 VDC discrete field signals and interfaces them with the associated Honeywell I/O architecture. Galvanic isolation separates the field-side electrical circuit from the control-side interface, while the compression terminals provide direct field wiring termination.
In addition, the 32-channel arrangement provides a concentrated digital input interface for equipment status, switch contacts, interlocks, and discrete alarms. The specified electrical limits define the allowable signal conditions and should remain within the system design limits during commissioning.
The 51304640-175 version includes CE compliance and conformal coating. Furthermore, the configuration supports redundant system arrangements where the associated Honeywell I/O architecture provides the required redundancy functions.
Frequently Asked Questions
Q: How many digital input channels does the MU-GDID12 provide?
A: The MU-GDID12 provides 32 digital input channels for discrete field signal termination.
Q: What field signal does the 51304640-175 support?
A: The assembly is specified for 24 VDC digital input signals. The maximum open-circuit voltage is 10.5 V, and the maximum short-circuit current is 14 mA.
Q: Does the MU-GDID12 provide galvanic isolation?
A: Yes. The specified assembly uses galvanic isolation between the field signal interface and the associated control-system I/O interface.
Field Installation Guidelines
- Verify the MU-GDID12 model and 51304640-175 part number before installation.
- Confirm the field circuit voltage and signal characteristics against the approved I/O design.
- Connect field conductors to the designated compression terminals according to the Honeywell wiring documentation.
- Separate digital signal wiring from high-voltage power and high-current conductors where practical.
- Apply the specified grounding and shielding method for the installed control cabinet.
- Verify terminal polarity and channel assignment before energizing the circuit.
- Check field signal status and diagnostic indications during commissioning.
- Confirm that the associated isolation and redundancy arrangement matches the approved system configuration.
- Do not exceed the specified voltage, current, or source-resistance limits.
- Inspect wiring termination and mechanical mounting before placing the I/O channel into service.
