Overview

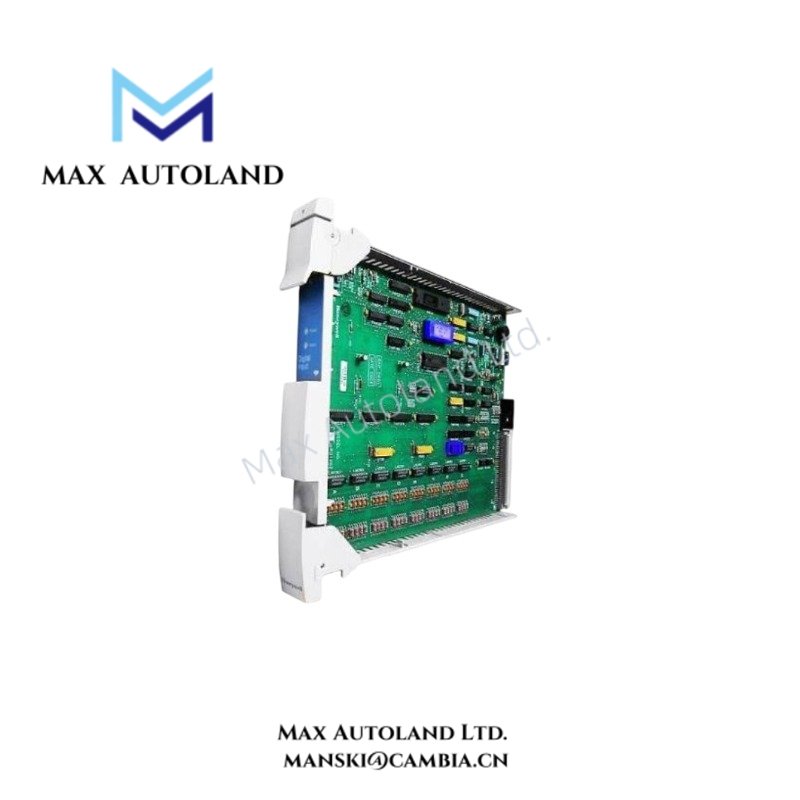

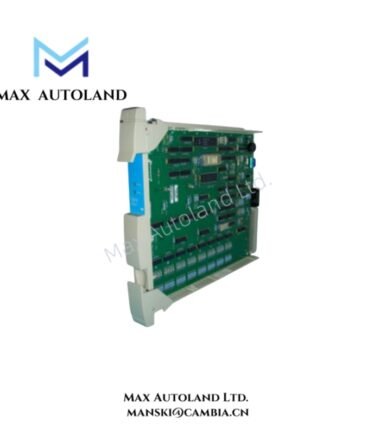

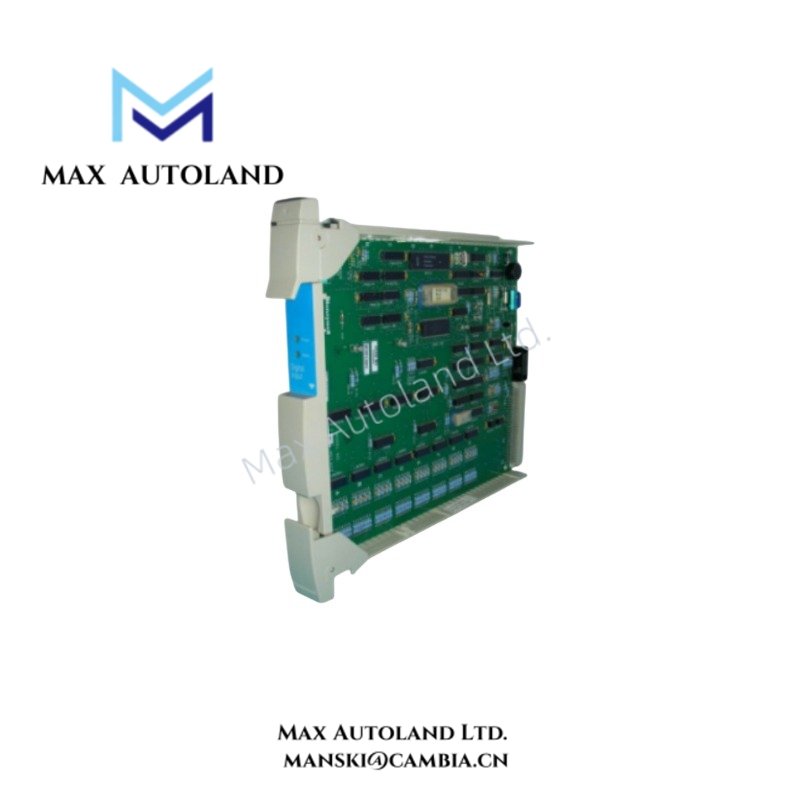

Configured for digital field signal processing in Honeywell TDC 3000 control hardware, the Honeywell MC-PDIX02 51304485-1 (MC-PDIX02 Digital Input IOP Module) provides direct electrical processing of discrete input signals from external field devices. The module supports digital input interfacing through compatible Field Termination Assemblies and transfers input status information into the DCS architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PDIX02 51304485-1 |
| Base Model | MC-PDIX02 |
| Brand | Honeywell |
| Product Type | Digital Input IOP Module |
| Part Number | 51304485-1 |
| System Compatibility | Honeywell TDC 3000 control hardware infrastructure |
| Primary Function | Processing and interfacing digital input signals |
| Input Signal Type | Digital input |
| Number of Channels | Up to 32 digital input channels, depending on the associated FTA configuration |
| Nominal Input Voltage | 24 VDC |
| Typical Input Voltage Range | 20 to 30 VDC when used with compatible standard 24 VDC FTAs |
| Field Interface | Compatible Honeywell Digital Input Field Termination Assemblies |
| Redundancy | Non-redundant configuration |
| Mounting | Rack or module slot mounting |
| Operating Temp | 0 to 60 deg C |
| Storage Temp | -40 to +85 deg C |
| Relative Humidity | 0% to 95%, non-condensing |
DCS Digital Signal Processing and Channel Interface
The MC-PDIX02 processes discrete field states received through the associated Honeywell termination hardware. Consequently, switches, pushbuttons, and compatible digital sensors can provide status signals to the control system through the configured input path.
The module itself handles digital input processing rather than analog loop measurement. Therefore, specifications associated with 4-20 mA HART loops, cold junction compensation, or analog signal conversion do not apply to the stated MC-PDIX02 function. Correct field termination selection remains necessary because channel availability and the applicable 24 VDC input arrangement depend on the connected FTA configuration.
Frequently Asked Questions
Q: Does the Honeywell MC-PDIX02 51304485-1 directly connect every field device without additional termination hardware?
A: No. The module is specified for operation with corresponding Honeywell Digital Input Field Termination Assemblies. The FTA provides the field wiring interface required by the installed hardware configuration.
Q: Does the MC-PDIX02 51304485-1 provide redundant operation?
A: The provided technical data identifies this configuration as non-redundant. Redundant operation should not be assumed unless the complete Honeywell hardware architecture specifically supports an approved redundant arrangement.
Q: Can the MC-PDIX02 be installed or removed while energized?
A: The provided data does not specify hot-swap capability. Therefore, installation and removal should follow the applicable Honeywell system maintenance procedure and site electrical isolation requirements.
Field Installation Guidelines
Install the Honeywell MC-PDIX02 51304485-1 only in the designated rack or module slot specified for the applicable Honeywell control hardware.
Verify the module orientation and mechanical seating before applying power. Ensure that the associated Digital Input FTA matches the installed input configuration.
Route field wiring separately from high-current switching conductors and variable-frequency drive output cables where practical. This practice reduces the possibility of induced electrical noise on digital signal circuits.
Terminate cable shields according to the site grounding design and the applicable Honeywell installation documentation. Avoid creating unintended multiple shield grounding paths.
Before commissioning, verify the field supply voltage, input polarity where applicable, termination wiring, and individual digital status transitions at the control system interface.
