Overview

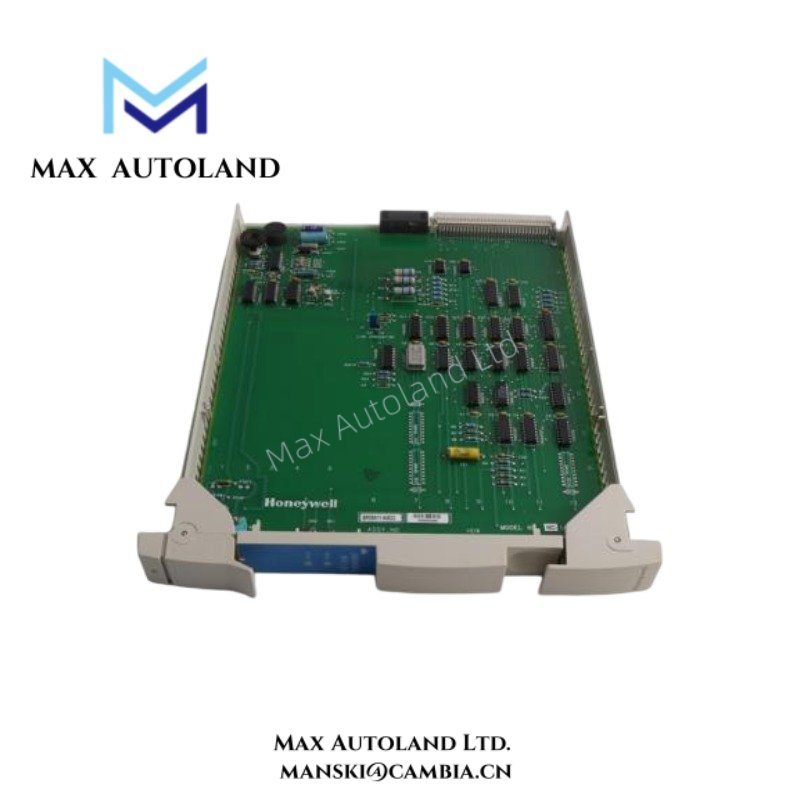

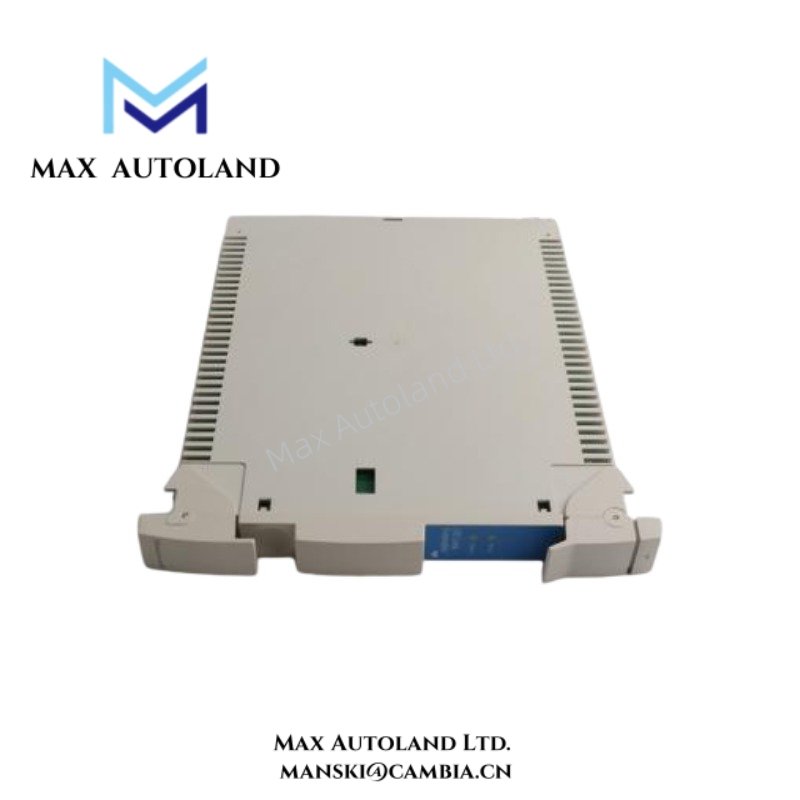

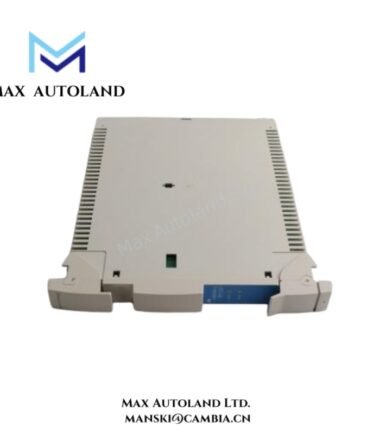

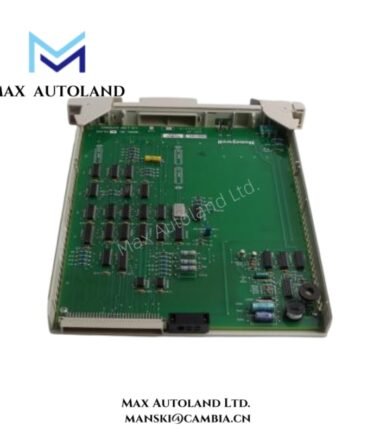

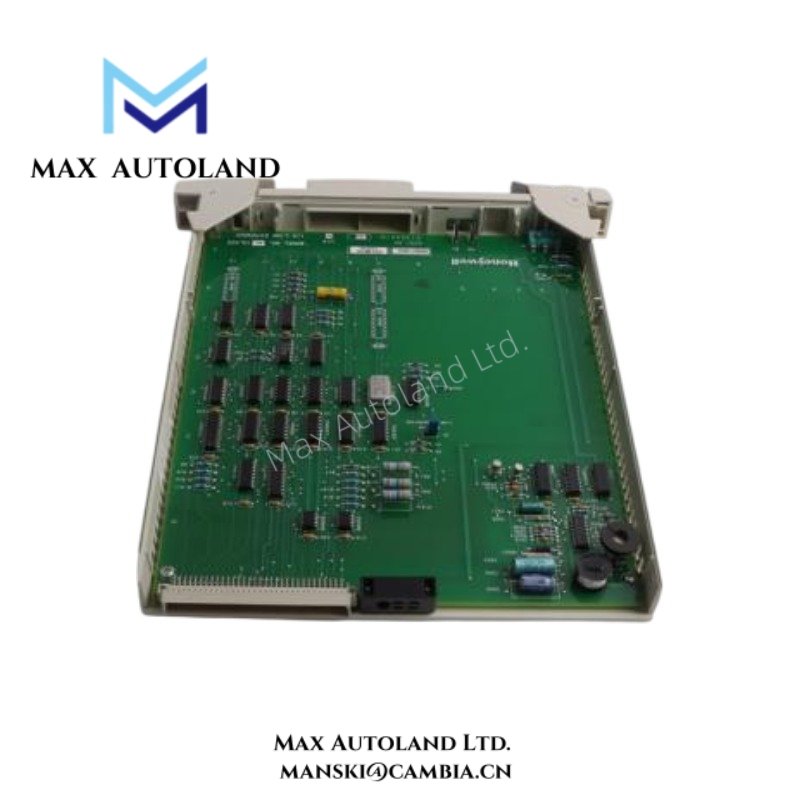

MC-IOLX02 51304419-150 extends I/O communication links within Honeywell control systems for improved system scalability.
This module belongs to the Honeywell UCN series, so it ensures seamless integration with distributed control architectures.
Moreover, MC-IOLX02 51304419-150 enhances signal transmission distance, which improves flexibility in large industrial installations.
It maintains stable communication performance, while it supports high-speed data exchange across system components.
Key Features and Functional Benefits
MC-IOLX02 51304419-150 provides reliable I/O link extension, so it enables long-distance communication between controllers and field devices.
Additionally, the module supports high-speed data transfer, which ensures accurate and timely signal delivery.
It incorporates advanced signal conditioning circuits, therefore it reduces transmission errors and improves communication reliability.
Furthermore, the compact card design simplifies installation, while it optimizes cabinet space utilization.
Engineers also benefit from robust system compatibility, which ensures smooth integration with existing Honeywell UCN networks.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MC-IOLX02 51304419-150 |
| Manufacturer | Honeywell |
| Product Type | Standard I/O Link Extender Card |
| Series | Honeywell UCN (Universal Control Network) |
| Function | Extends I/O communication link distance within control systems |
| Communication Type | High-speed serial data transmission |
| Data Rate | Up to 1 Mbps typical industrial communication speed |
| Maximum Distance | Extended up to several hundred meters depending on configuration |
| Signal Conditioning | Integrated filtering and amplification for stable transmission |
| Interface Type | Backplane interface for system connection |
| Connector Type | Edge connector for secure module installation |
| Power Supply | 24 V DC input from system backplane |
| Power Consumption | Approx. 4–7 W during standard operation |
| Isolation Type | Electrical isolation between communication channels |
| Isolation Voltage | Up to 500 V AC for system protection |
| Dimensions (W×H×D) | Approx. 200 × 130 × 40 mm for compact installation |
| Weight | Approx. 0.6–0.9 kg for easy handling |
| Operating Temperature | 0°C to 60°C for reliable industrial performance |
| Storage Temperature | -40°C to 85°C for safe transport and storage |
| Humidity Range | 5% to 95% non-condensing conditions |
| Mounting Method | Rack-mounted installation within Honeywell chassis |
| Compatibility | Fully compatible with Honeywell UCN and DCS systems |
FAQ
Q1: Is this product brand new and original?
Yes, MC-IOLX02 51304419-150 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MC-IOLX02 51304419-150 in stock, so we can process orders without delay.
Q3: How fast can you ship the product?
We ship MC-IOLX02 51304419-150 within 3 days to 2 weeks, depending on order quantity.
Q4: Which logistics services do you use?
We use reliable carriers such as DHL, so delivery remains fast and trackable worldwide.
Q5: What should I do if there is a quality issue?
We support returns for MC-IOLX02 51304419-150 within 30 days if any quality issue occurs.
Q6: What is the main function of this module?
MC-IOLX02 51304419-150 extends I/O communication distance while maintaining high-speed and stable data transmission.
