Overview

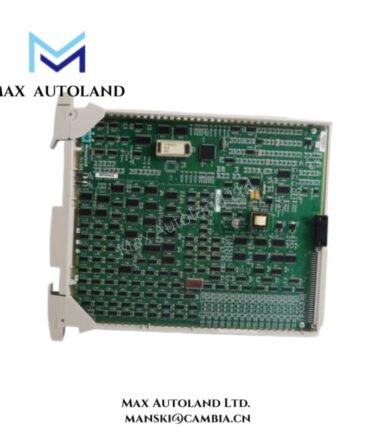

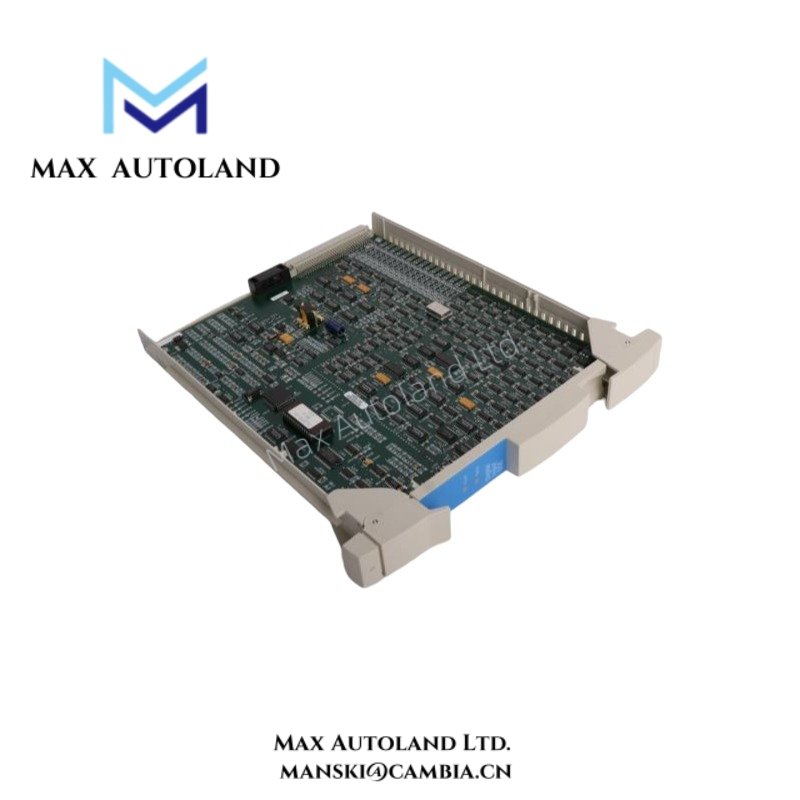

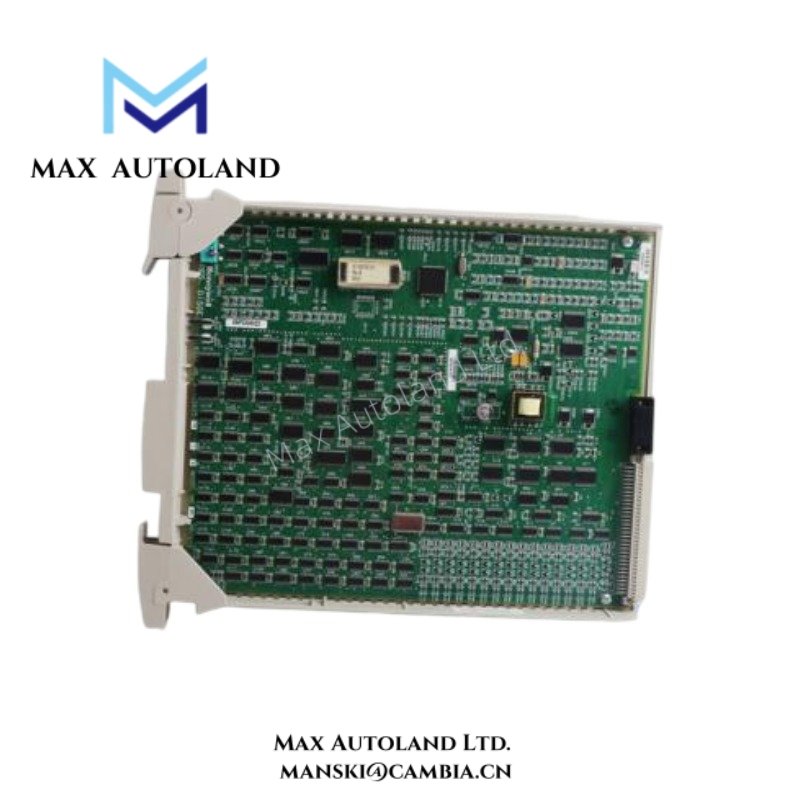

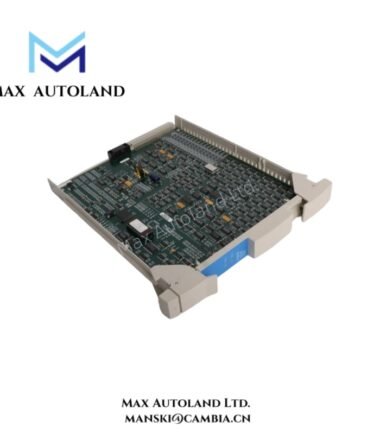

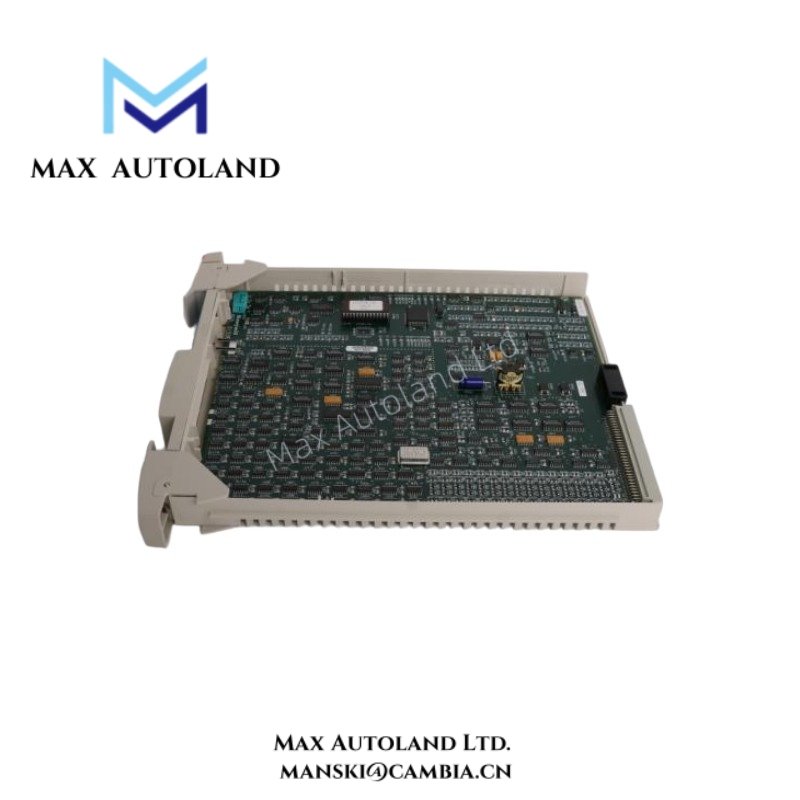

MC-PDIS12 51402625-175 delivers accurate digital signal acquisition for Honeywell industrial automation and control systems.
This module belongs to the Honeywell UCN and DCS platform, so it ensures seamless system integration and stability.
Moreover, MC-PDIS12 51402625-175 supports sequence of events recording, which improves fault analysis and event tracking accuracy.
It maintains consistent input processing, while it ensures reliable operation across complex industrial environments.
Key Features and Functional Benefits
MC-PDIS12 51402625-175 supports multiple digital input channels, so it enables flexible signal monitoring across systems.
Additionally, the module integrates SOE capability, which records event timing with high precision for diagnostics.
It uses advanced filtering technology, therefore it reduces noise interference and improves signal integrity.
Furthermore, the compact design allows efficient cabinet installation, while it simplifies maintenance procedures.
Engineers benefit from fast response performance, which enhances system safety and real-time control reliability.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MC-PDIS12 51402625-175 |
| Manufacturer | Honeywell |
| Product Type | Digital Input Module with SOE capability |
| Series | Honeywell UCN / DCS Series |
| Input Channels | 32 digital input channels for high-density signal acquisition |
| Input Voltage | 24 V DC nominal input for industrial devices |
| Input Type | Dry contact and voltage input compatible |
| Input Current | Approx. 5–8 mA per channel |
| SOE Resolution | 1 ms event timestamp resolution for precise sequence recording |
| Response Time | ≤5 ms for fast signal detection and processing |
| Isolation Type | Channel-to-channel and system isolation for protection |
| Isolation Voltage | Up to 500 V AC electrical isolation |
| Power Supply | 24 V DC via system backplane |
| Power Consumption | Approx. 6–10 W depending on active channels |
| Interface Type | Backplane communication interface |
| Connector Type | Edge connector with secure locking mechanism |
| Dimensions (W×H×D) | Approx. 220 × 150 × 50 mm for compact installation |
| Weight | Approx. 1.0–1.3 kg for stable mounting |
| Operating Temperature | 0°C to 60°C for industrial environments |
| Storage Temperature | -40°C to 85°C for safe transport |
| Humidity Range | 5% to 95% non-condensing conditions |
| Mounting Method | Rack-mounted installation in Honeywell chassis |
| Protection Features | Surge protection and signal fault diagnostics |
FAQ
Q1: Is this product brand new and original?
Yes, MC-PDIS12 51402625-175 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MC-PDIS12 51402625-175 in stock, so we can process orders quickly.
Q3: How fast can you ship the product?
We ship MC-PDIS12 51402625-175 within 3 days to 2 weeks, depending on order quantity.
Q4: Which logistics services do you use?
We use reliable carriers such as DHL, so delivery remains fast and fully trackable.
Q5: What should I do if there is a quality issue?
We support returns for MC-PDIS12 51402625-175 within 30 days if any quality issue occurs.
Q6: What is the SOE function in this module?
MC-PDIS12 51402625-175 records sequence of events with millisecond precision, which improves fault analysis and system diagnostics.
