Overview

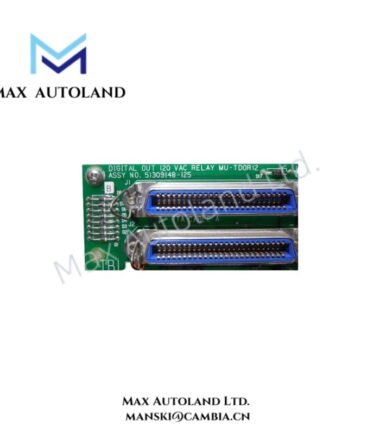

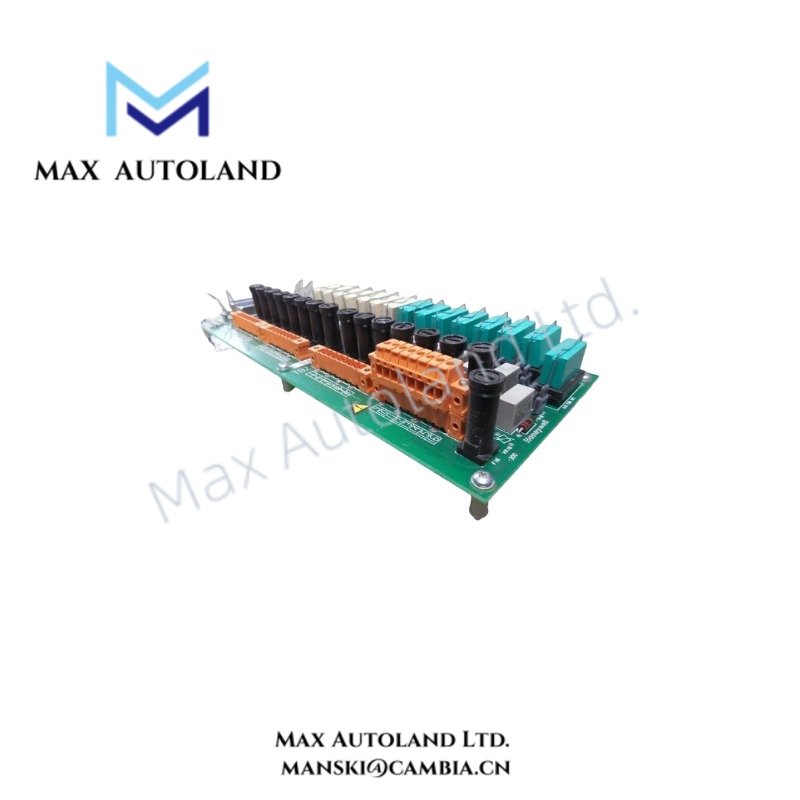

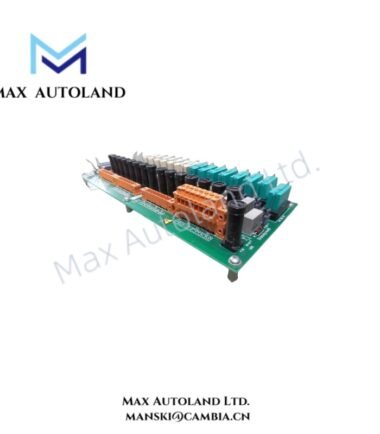

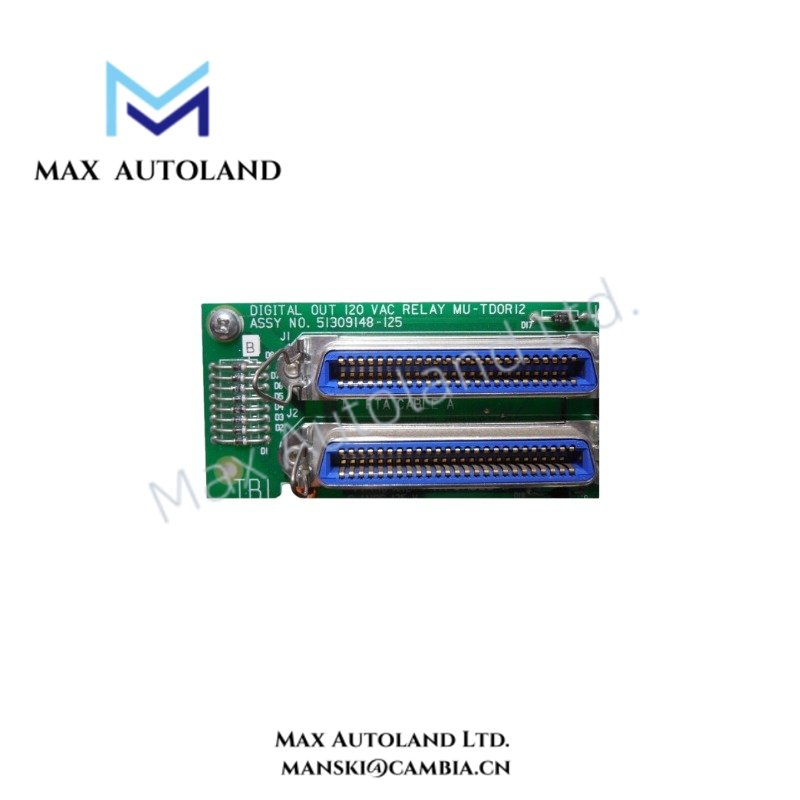

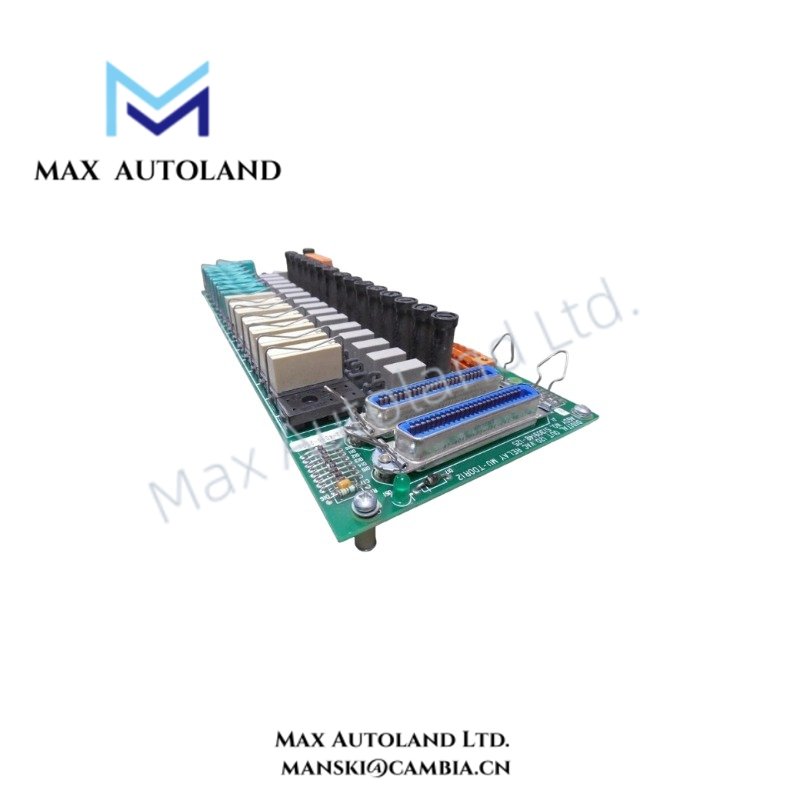

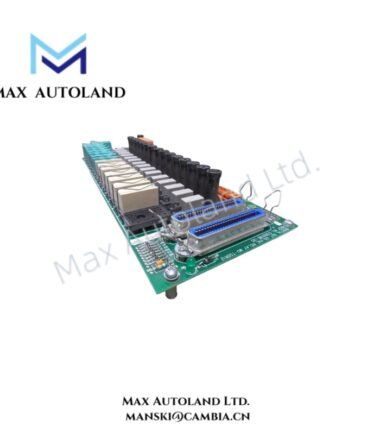

Configured for relay-based digital output switching in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TDOR12 (51309148-125) (MU-TDOR12 Digital Output Relay Field Termination Assembly) provides direct electrical execution between I/O processors and field actuators.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDOR12 |
| Brand | Honeywell |
| Origin | USA |
| Product Type | Digital Output Relay Field Termination Assembly |
| Part Number | 51309148-125 |
| System Compatibility | Honeywell TDC 3000, PM, APM, HPM, Experion PKS |
| Signal Type | Digital Output Relay Interface |
| Channel Count | 16 output channels |
| Relay Type | Electromechanical relay output |
| Contact Rating | 120 VAC / 24 VDC typical relay switching capability |
| Isolation Method | Relay-based galvanic isolation between control side and field wiring |
| Mounting Type | Cabinet mounting frame / DIN rail installation |
| Field Connection | Screw terminal field wiring interface |
| Interface Connection | Multi-conductor FTA cable connection to I/O processor |
| Power Consumption | Dependent on connected relay excitation and system interface load |
Process Control Signal Interface and Isolation
The MU-TDOR12 provides relay switching channels for Honeywell digital output processing architectures. Each relay channel separates the I/O electronics from external field circuits, which reduces electrical interference transfer between control hardware and field devices.
The assembly accepts digital output commands from Honeywell process control I/O modules and converts them into isolated contact switching actions. Therefore, the module can control external devices such as solenoid valves, alarm indicators, motor starters, and contactors through discrete electrical circuits.
For Honeywell process control applications, the FTA design supports field termination requirements including channel-to-channel isolation and direct actuator loop connection. The relay interface allows discrete field circuits to operate with different voltage levels according to the installed relay contact specifications.
Frequently Asked Questions
Q: Does the MU-TDOR12 support direct analog signal measurement?
A: No. The MU-TDOR12 is a digital output relay termination assembly. It performs discrete contact switching and does not process analog input signals such as 4-20 mA or HART communication.
Q: Does the MU-TDOR12 provide electrical isolation between field wiring and control electronics?
A: Yes. The electromechanical relay contacts provide galvanic isolation between the I/O processor interface and external field circuits.
Q: Can the MU-TDOR12 operate as a standalone I/O controller?
A: No. The assembly functions as a field termination interface and requires connection to a compatible Honeywell I/O processing system.
Field Installation Guidelines
- Install the MU-TDOR12 inside the designated Honeywell control cabinet or approved mounting enclosure.
- Verify the FTA cable connection between the termination assembly and the associated I/O processor before applying system power.
- Route field wiring separately from high-voltage power cables to reduce electromagnetic interference.
- Connect shielded cables according to site grounding standards when field devices require signal shielding.
- Confirm relay contact voltage and load requirements before connecting external actuators.
- Tighten screw terminals according to the applicable cabinet wiring specification to maintain stable electrical contact.
- Inspect relay outputs and field circuits during commissioning to confirm correct switching operation.
