Overview

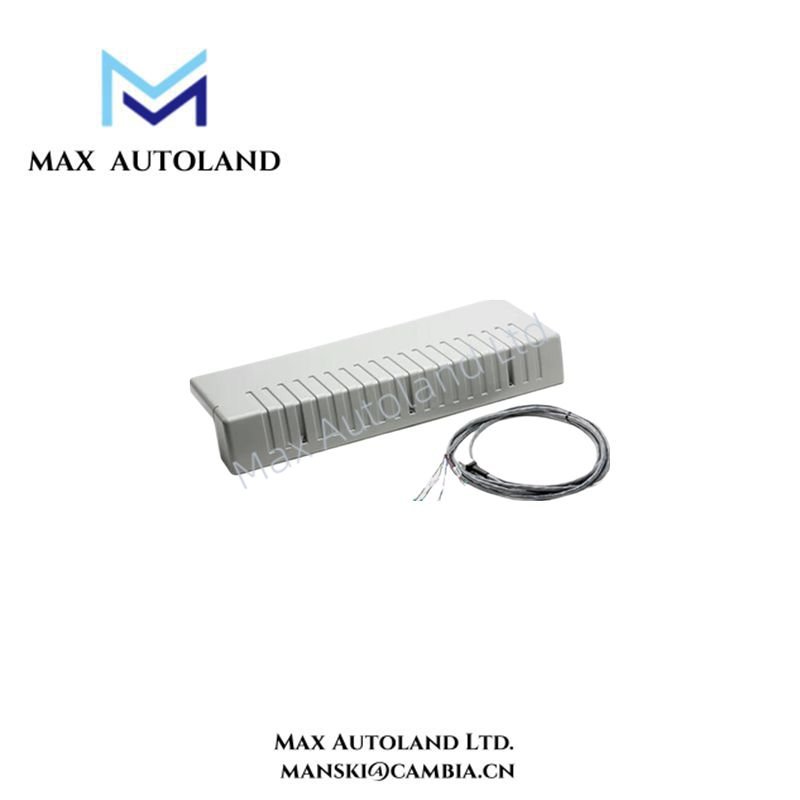

The Honeywell C300 Series Power Supply, model CC-PWRB01 51199940-100, provides reliable and efficient power for industrial automation systems. Engineered to meet high-performance standards, this power supply offers robust features that ensure long-lasting operation in demanding environments. The C300 Series is widely used across various applications, offering scalable solutions for optimal performance.
The model CC-PWRB01 power system has two 24 Vdc (20 amperes) output power supplies for redundancy as well as a 24V backup assembly. The battery backup assembly has rechargeable batteries and battery charger to sustain the 24 Vdc (20 amperes) output for up to 30 minutes in the event of an ac power input failure. Each 24 Vdc power supply can be powered by a separate ac power source (ac line or uninterrupted power supply), if desired. The output is 25 to 26 Vdc (20 amperes) while the ac input is present and 24 to 25 (20 amperes) while the battery backup is available.
Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-PWRB01 51199940-100 |
| Series | Honeywell C300 |
| Input Voltage | 85–264 VAC, 47–63 Hz |
| Output Voltage | 24 VDC ±1% |
| Output Power | 600 W max |
| Efficiency | >90% |
| Dimensions (WxHxD) | 200 mm x 110 mm x 300 mm |
| Weight | 3.5 kg |
| Temperature Range | -10°C to 50°C |
| Cooling | Forced air cooling |
| Enclosure | IP20 |
| Operating Humidity | 5% to 95% (non-condensing) |
| Safety Standards | UL, CE, RoHS |
Manuals/Datasheet PDF
CC-PWRB01 51199940-100 Honeywell C300 Series Power Supply datasheet
