Overview

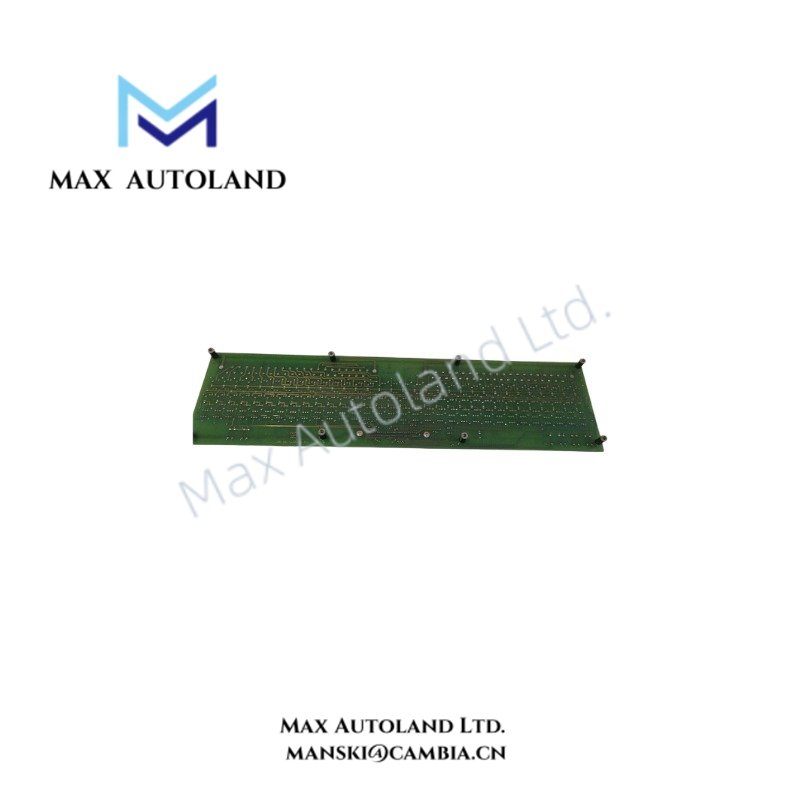

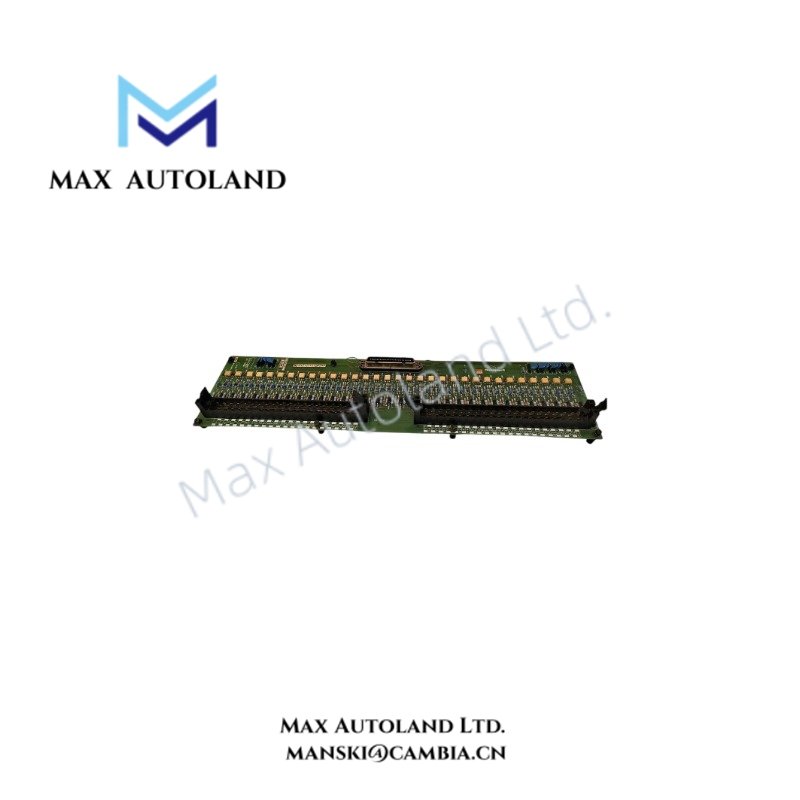

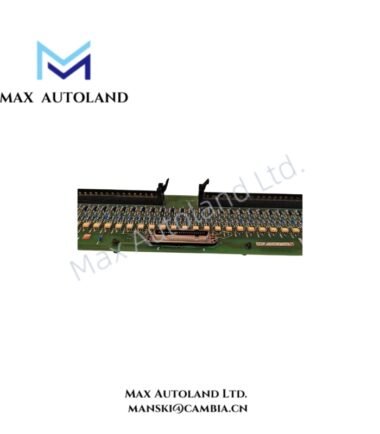

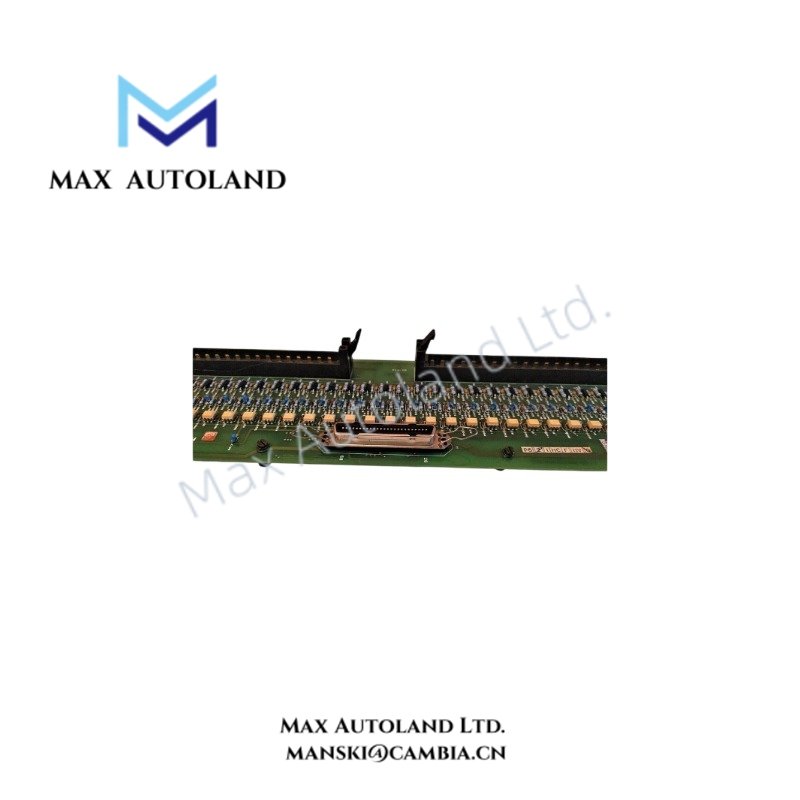

Configured for 32-channel discrete signal termination in Honeywell control architectures, the Honeywell MU-TDID72 51303928-100 (MU-TDID72 Digital Input Field Termination Assembly) routes field digital inputs to system-side I/O electronics. It accepts 24 VDC discrete signals and provides terminal connections and electrical isolation for field wiring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDID72 |
| Part Number | 51303928-100 |
| Brand | Honeywell |
| Product Type | Digital Input Field Termination Assembly (FTA) |
| Origin | Not specified in the supplied data |
| Channel Capacity | 32 digital input channels |
| Rated Field Voltage | 24 VDC |
| Signal Type | Discrete / digital input |
| Input Source | Contact or switch-based field inputs |
| Isolation | Galvanic / optical isolation between field signals and controller system |
| Field Wiring Interface | Screw terminal blocks |
| System Compatibility | Honeywell TDC 3000 and Experion PKS HPM / APM I/O architectures |
| Mounting | Cabinet, DIN rail, or panel-compatible FTA arrangement |
| Operating Environment | Industrial control cabinets and marshalling panels |
Honeywell Process Signal Interface
The MU-TDID72 handles discrete field signals rather than analog 4-20 mA instrument loops. Therefore, the primary signal path consists of field contact or switch states transferred through the FTA to the associated Honeywell I/O architecture.
The 32-channel configuration provides a fixed termination interface for multiple discrete inputs. In addition, galvanic or optical isolation separates field-side signals from controller-side electronics, according to the supplied product data. This arrangement limits direct electrical coupling between field wiring and system electronics.
The screw-terminal interface provides the physical termination point for field conductors. Consequently, installation should maintain clear separation between discrete signal wiring and higher-energy conductors to reduce unwanted electrical interference.
Frequently Asked Questions
Q: What type of field signals does the MU-TDID72 terminate?
A: The assembly terminates discrete or digital input signals, including contact and switch-based inputs, with a rated field interface of 24 VDC.
Q: How many input channels does the MU-TDID72 provide?
A: The MU-TDID72 provides 32 digital input channels.
Q: Does the supplied data specify the power consumption or environmental temperature range?
A: No. The supplied data does not provide specific power consumption, operating temperature, or environmental limits. These values should be confirmed from the applicable Honeywell documentation before installation.
Field Installation Guidelines
- Verify the FTA model and part number before connecting field wiring.
- Confirm that the connected field circuits match the specified 24 VDC discrete input interface.
- Terminate conductors securely at the designated screw terminals.
- Keep discrete signal wiring separated from power and high-current conductors where practical.
- Route signal wiring to minimize unnecessary parallel runs with high-energy electrical circuits.
- Follow the cabinet grounding and bonding requirements specified for the associated Honeywell control system.
- Check field polarity and circuit continuity before applying system power.
- Verify each discrete input state from the controller-side diagnostic or monitoring interface after commissioning.
- Do not apply unspecified signal voltages to the field terminals.
- Confirm mounting clearances and terminal access before final cabinet wiring.
